Optimization of the Manufacture Parameters of Spin-Coated BiVO4 Photoanodes for Improved Photoelectrochemical Performance
Miguel Amaro Ferreira a, Ignasi Burgués-Ceballos b, Simelys Hernández a, Lluis Soler b
a Department of Applied Science and Technology (DISAT), Politecnico di Torino, 10129 Torino, Italy
b Institute of Energy Technologies, Department of Chemical Engineering and Center for Research in Multiscale Science and Engineering, Universitat Politècnica de Catalunya, EEBE, Eduard Maristany 16, 08019 Barcelona, Spain
Proceedings of MATSUS Spring 2026 Conference (MATSUSSpring26)
E4 Photo-assisted chemical reactions: materials, characterization and mechanisms
Barcelona, Spain, 2026 March 23rd - 27th
Organizers: Josep Albero Sancho and Diego Mateo Mateo
Poster, Miguel Amaro Ferreira, 965
Publication date: 15th December 2025

Photoelectrocatalytic (PEC)  water-splitting offers a promising pathway for sustainable hydrogen production using solar energy [1]. Among the various photoanode materials studied, bismuth vanadate (BiVO₄) has emerged as leading candidate due to its suitable band gap, earth-abundance, and photostability [2] [3]. Mechanistically, BiVO₄ facilitates the oxygen evolution reaction (OER), PEC water-splitting’s bottleneck, through surface-adsorbed intermediates, where surface states and charge carrier dynamics play critical roles [4].

Spin coating has gained notoriety as a synthesis method for BiVO₄ photoelectrodes as it allows for the simple production of uniform thin films onto the conductive glass substrate from metal–organic precursor solutions. After deposition on conductive substrates, a further annealing step induces crystallization and improves adhesion.[5] In comparison, techniques such as spray pyrolysis, electrodeposition, sol–gel dipping, and hydrothermal growth can lead to higher surface areas or thicker films but often involve complex processing or morphology control.[6]

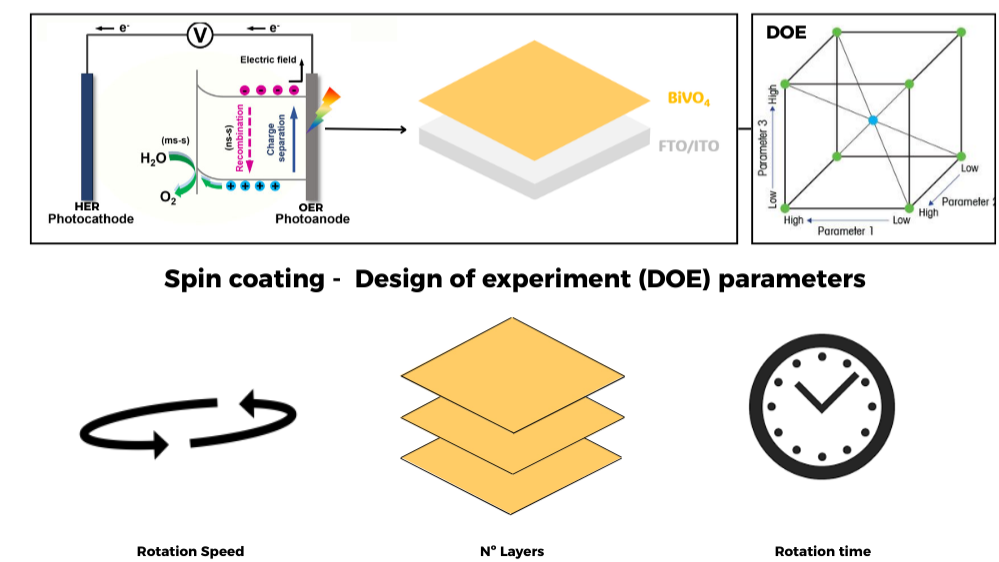

The present work focuses on the optimization of the catalytic activity of the BiVO₄ spin-coated photoanodes towards OER photoelectrocatalysis. We have implemented  Design of experiment (DOE) tools to identify the optimal experimental procedures from the chosen input variables: 500, 1000 or 1500 rotations per minute; 3, 6 or 9 number of layers deposited; 10, 12 or 14 seconds of spinning and 0.04 or 0.08 M acidic organic precursor solution concentration.

As feedback for the DOE modelling, we used the obtained photoelectrocatalytic results (mA/cm2 at E = 1.23 V vs RHE) as the output variable to maximize, and find the corresponding optimal conditions for the photoanode synthesis. The PEC testing was done in a photoelectrochemical cell, in a three-electrode system, employing 0.1 M phosphate buffer solution at pH = 7.4 as electrolyte, under 100 mW AM 1.5G illumination. The morphological analysis of the samples was done by SEM imaging.
