Publication date: 15th May 2025

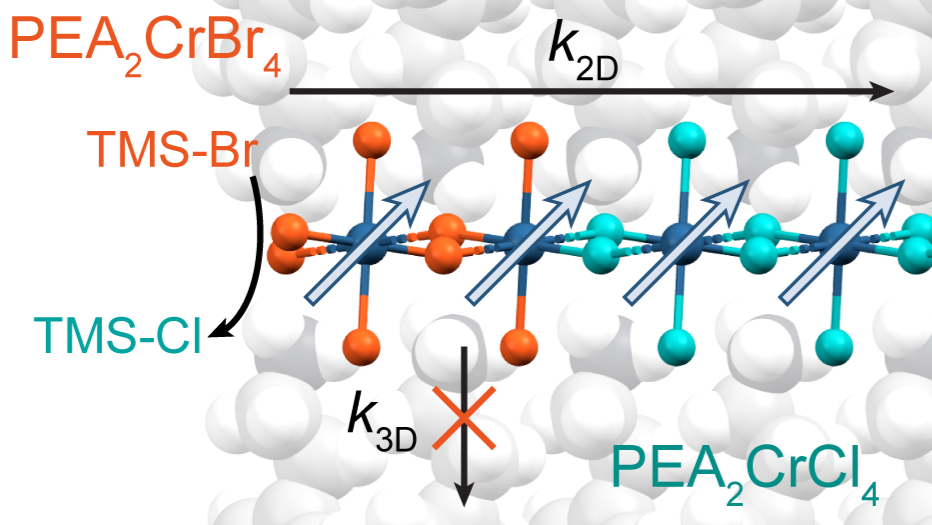

In this poster presentation I will discuss recent work expanding the chemistry of the ferromagnetic two-dimensional (2D) hybrid metal-halide perovskite, PEA2CrCl4 (PEA+ = phenethylammonium) [1]. Here, post-synthetic vapor-phase anion exchange using vaporous trimethylsilyl bromide (TMS-Br) is shown to drive complete conversion of solution-processed PEA2CrCl4 polycrystalline thin films to the previously unreported PEA2CrBr4 composition. 5 K magnetic circular dichroism spectroscopy indicates ferromagnetic ordering in these PEA2CrCl4 and PEA2CrBr4 films. Via partial anion exchange of exfoliated flakes of PEA2CrCl4 single crystals, we demonstrate that it is possible to generate abrupt lateral PEA2CrCl4/PEA2CrBr4 magneto-heterointerfaces. Kinetic studies reveal that lateral heterostructure formation is dictated by rapid edge-site halide exchange followed by slower intralayer bromide diffusion, and there is negligible interlayer (3D) bromide or TMS-Br diffusion. The importance of the bulky PEA+ interlayer cation in suppressing 3D diffusion is highlighted by parallel anion-exchange experiments on MA2CrCl4 (MA+ = methylammonium), which instead show 3D exchange. Comparison of anion-exchange reactions in PEA2CrCl4, PEA2MnCl4, and PEA2PbCl4 shows that 2D bromide diffusion is slowest in PEA2CrCl4, attributed to the antiferrodistortive ordering found in this composition. In addition to demonstrating both post-synthetic composition control and heterostructure formation in ferromagnetic Cr-based 2D perovskites for the first time, these results also advance our fundamental understanding of ion-exchange processes in this relatively unexplored family of 2D perovskites, broadening opportunities for investigation and control of novel spin effects in low-dimensional metal-halide perovskites.
