Porous semiconducting polymer nanomaterials as intracellular biophotonic mediators to modulate ROS balance
Miryam Criado-Gonzalez a, Camilla Marzuoli b, Luca Bondi c, Edgar Gutierrez-Fernandez a, Gabriele Tullii b, Tobias Cramer c, Maria Rosa Antognazza b, David Mecerreyes a d
a POLYMAT – University of the Basque Country UPV/EHU, 20018 San Sebastián (Spain).
b Center for Nano Science and Technology, Istituto Italiano di Tecnologia, 20133 Milano (Italy).
c Department of Physics and Astronomy. University of Bologna, 40127 Bologna (Italy).
d Ikerbasque, Basque Foundation for Science, 48013 Bilbao (Spain).
Proceedings of Bioelectronic Interfaces: Materials, Devices and Applications (CyBioEl)
Limassol, Cyprus, 2024 October 22nd - 25th
Organizers: Eleni Stavrinidou and Achilleas Savva
Oral, Miryam Criado-Gonzalez, presentation 002
DOI: https://doi.org/10.29363/nanoge.cybioel.2024.002
Publication date: 28th June 2024

In the last few decades, reactive oxygen species (ROS) have emerged as a highly powerful cell-signaling agent in disease but also in physiology. ROS effect can vary from detrimental with harmful effects on cell viability to highly beneficial in most biological processes, including cell differentiation, proliferation, and migration, up to specific functionality.[1] The controlled production of ROS through exogenous stimuli such as light is expected to provide lower invasiveness, relying on wireless stimulation, reversibility, and high spatial selectivity. Semiconducting polymers, originally used in organic electronics, are attracting increasing attention as phototriggers of ROS due to their biocompatibility, intrinsic conductivity and optical properties. For such a purpose, semiconducting polymers are usually processed in the form of thin films and nanoparticles whose performance is influenced by the π-conjugated semiconducting polymer structure and its 3D confinement during the nanomaterial formation. All those features clearly modulate the photophysical processes and ultimately determine their biophotonic applications. However, its application is still limited by its low efficacy and the use of bare photoexcitation does not allow for the necessary fine-tuning of ROS concentration at safe regimes for photostimulation.[2, 3]

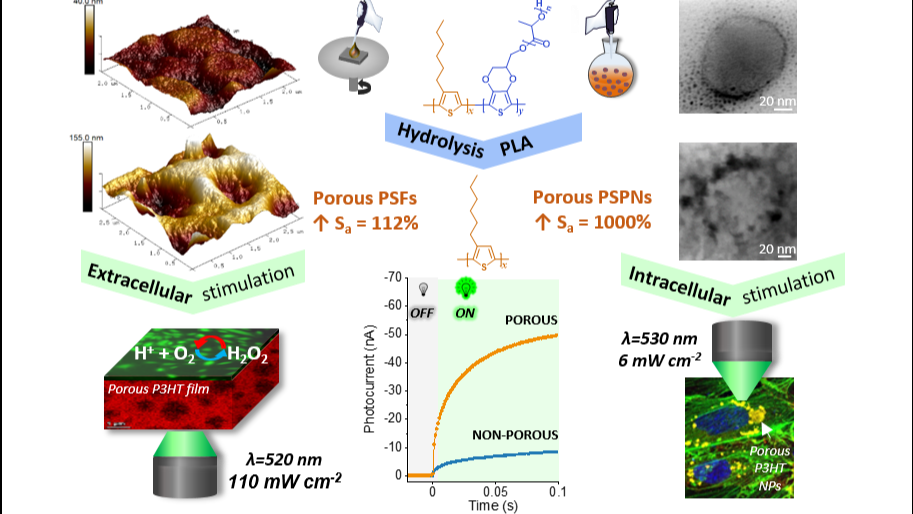

To overcome these limitations, we developed porous poly(3-hexylthiophene) (P3HT) films (PSFs) and nanoparticles (PSNPs) with an enlarged surface area (Sa) that allowed to increase the optical absorption surface area, providing easier access to optical excitation for (bio-opto)electronic applications. To that aim, opto-active, electro-active, and hydrolysable graft copolymers were synthesized through chemical oxidative polymerization of P3HT and polylactic acid (PLA), P3HT-g-PLA, with different PLA percentages to tune the pore size. The morphology and pores of PNFs were characterized by Atomic Force Microscopy (AFM) and grazing incidence small angle X-ray scattering (GISAXS), whereas the PSPNs formation and distribution were analyzed by Scanning Electron Microscopy (SEM), dynamic light scattering (~100 nm), and small angle X-ray scattering (SAXS). The PLA hydrolysis was also corroborated by Nuclear Magnetic Resonance (1H-NMR). The optical properties of the nanomaterials were determined by UV-vis absorption and fluorescence emission spectrophotometry. Finally, the photo-electrochemical properties were determined by irradiating the nanomaterials, immersed in an aqueous physiological electrolyte, with a laser diode. Porous nanomaterials gave rise to a 4-fold increase in the photocurrent properties as compared with non-porous ones, proving enhanced opto-electronic properties of our nanomaterials. The employment of these porous nanomaterials as biophotonic devices for extracellular (PNFs) and intracellular (PSNPs) stimulations of human umbilical vein endothelial cells (HUVECs) allowed us to modulate the ROS production in the beneficial physiological range, up to 6 mW/cm2 (λ = 530 nm) in the case of PSNPs, to favor tissue regeneration processes.[4, 5]

This work received funding from the European Union’s Horizon 2020 FETOPEN 2018-2020 programme under grant agreement No 828984, and ALBA Synchrotron (2021095380).
