Interface-assisted cesium-formamidinium cation exchange enables high-performance perovskite light-emitting diodes with tuneable near-infrared emissions
Zhongcheng Yuan a b, Zhangjun Hu a, Ingemar Persson a, Chuanfei Wang a, Xianjie Liu a, Chaoyang Kuang a, Weidong Xu a, Sai Bai a, Feng Gao a
a Department of Physics, Chemistry and Biology (IFM), Linköping University, Linköping, SE-58183, Sweden
b Department of Physics University of Oxford Clarendon Laboratory, Oxford OX1 3PU, Reino Unido, United Kingdom
Proceedings of International Conference on Emerging Light Emitting Materials (EMLEM22)
Aspects of Emergent Light Emitters:
Limasol, Cyprus, 2022 October 3rd - 5th
Oral, Zhongcheng Yuan, presentation 064
Publication date: 15th July 2022

Achieving high-quality cesium-formamidinium lead iodide (CsxFA1-xPbI3) perovskites with widely tuneable bandgaps
is highly desired for their optoelectronic applications yet remains a challenge because of the different phase transition
behaviour of FAPbI3 and CsPbI3 perovskite during film depositions.1,2 Herein, by utilizing an alkaline-interface-assisted
cation-exchange method, we fabricate a set of highly emissive CsxFA1-xPbI3 perovskite films with fine-tuning Cs-FA

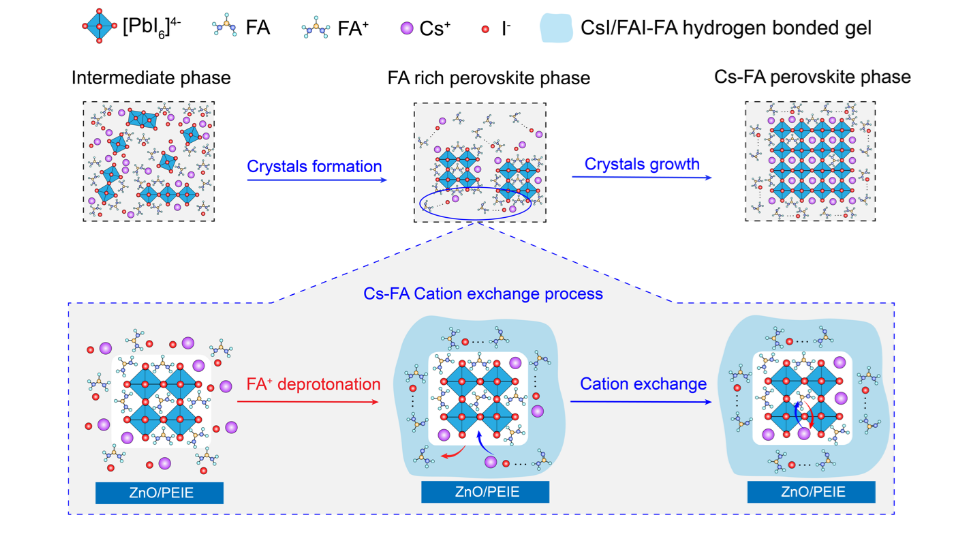

alloying ratio for emission-tuneable near-infrared light-emitting diodes (NIR-LEDs). We reveal that the deprotonation
of FA+ cations and the formation of hydrogen-bonded gels consisting of CsI and FA facilitated by zinc oxide underneath
effectively removes the Cs-FA ion-exchange barrier, promoting the formation of phase-pure CsxFA1-xPbI3 films with
emission filling the gap between that of pure Cs- and FA-based perovskites.3 The obtained NIR-LEDs with narrow
electroluminescence peaking from 715 to 780 nm simultaneously demonstrate high peak external quantum efficiencies
of over 15%, maximum radiances exceeding 300 W sr-1 m-2, and high power conversion efficiencies above 10 % at 100
mA cm-2, representing the best-performing devices based on solution-processed wavelength-tuneable NIR emitters in
the similar region4.

1 Li, Z., et.al. Chem. Mater. 28, 284-292 (2016)
2 Lee, J.-W., et.al. Adv. Energy Mater. 5, 1501310 (2015)
3 Z, Yuan., et.al. Nat. Commun 10, 2818 (2019)
4 Z, Yuan., et.al. In revision.

© FUNDACIO DE LA COMUNITAT VALENCIANA SCITO
We use our own and third party cookies for analysing and measuring usage of our website to improve our services. If you continue browsing, we consider accepting its use. You can check our Cookies Policy in which you will also find how to configure your web browser for the use of cookies. More info
