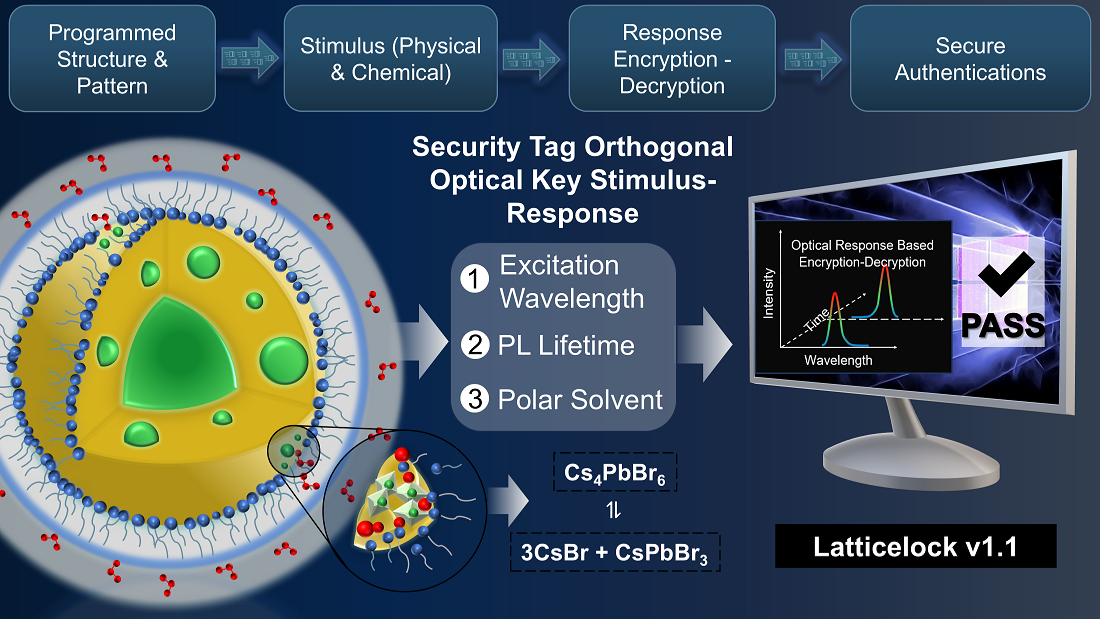

Solvent-induced phase transformation in cesium lead bromide nanocrystals is conventionally attributed to solvent polarity and CsBr extraction, implicitly treating the organic ligand shell as a passive spectator. Here, we demonstrate that the interfacial ligand layer is instead an active, programmable kinetic gate that governs the Cs₄PbBr₆-to-CsPbBr₃ transformation^1–3. By varying the crystallization quenching temperature (35–75°C), the apparent ligand-associated molecular density of CsPbBr₃/Cs₄PbBr₆ heterophase nanocomposites was tuned by more than an order of magnitude, from a sparse ~1.1 molecules nm^-2 regime to a highly dense, organic-rich matrix, as quantified by a combined titration study and qNMR/TGA analysis^4,5. Real-time photoluminescence kinetics during alcohol exposure reveal two decoupled contributions: solvent polarity supplies the thermodynamic driving force for lattice reorganization, whereas solvent molecular size (MeOH > EtOH > PrOH reactivity ordering) and ligand density dictate kinetic access to the reactive surface. Post-synthetic ligand titration on structurally identical 75 °C samples isolates the surface effect from bulk crystallinity, while DFT calculations corroborate the mechanism: alcohol adsorption on bare Cs₄PbBr₆ (E_ads up to −0.715 eV) is weakened and spatially displaced on ligand-passivated slabs^6,7, suppressing direct lattice destabilization. This ligand-gated metastability was translated into a "Triple-Key" anti-counterfeiting architecture combining three orthogonal, hardware-level readouts—excitation-dependent emission, solvent-triggered spectral evolution, and photoluminescence lifetime (τavg spanning ~1.5 to ~98 ns across states)^8–10, that cannot be replicated by simple colorimetric mimicry. Verification is executed by LatticeLock v1.1, a dual-stack platform (Flutter edge interface; Python/FastAPI cryptographic backend) implementing a Substitution–Permutation–Diffusion network adapted to visual grid topology^11,12: Arnold's Cat Map spatially scrambles grid nodes¹³, a logistic map (μ ≈ 4.0) injects avalanche-effect entropy via XOR mixing¹⁴, and non-linear modular substitution bijectively maps digital keys to physical ink identifiers (synthesis temperatures). Computer-vision decoding with adaptive reference normalization and tolerance-gated comparison distinguishes the intrinsic analog variance of the physical unclonable function^15,16 from genuine cryptographic mismatch, achieving nearly 100% authentication success at ≥20% saturation across all tested grid topologies (3×3 to 8×8) and demonstrating resilience to chromatic degradation. Collectively, these results reframe the metastability of perovskite and ligand shell from a colloidal stabilizer to a temperature-programmable steric barrier that encodes synthesis history into stimulus-response kinetics, and establishes a mechanistically grounded, algorithmically verified route to dynamic optical encryption. Beyond authentication, ligand-density-controlled solvent gating offers a general design principle for regulating phase metastability in responsive halide perovskite materials for sensing and optoelectronics applications.¹⁷
