Design of PV-grade Functional Materials for Perovskite Solar Cells

Alexander Mumyatov^a^,^b, Alexander Akkuratov^a^,^b, Ilya Kuznetsov^a^,^b, Sergey Tsarev^c, Mohamed Elnaggar^c, Fedor Prudnov^c^,^a^,^b, Lyubov Frolova^c^,^a^,^b

^aThe Institute for Problems of Chemical Physics of the Russian Academy of Sciences RAS, Russia, Semenov Prospect 1, Russian Federation

^bFOMaterials LTD, Chernogolovka, Russia, Russian Federation

^cSkoltech - Skolkovo Institute of Science and Technology, Moscow, Bolshoy Boulevard 30, Moskva, Russian Federation

Proceedings of Online School on Hybrid, Organic and Perovskite Photovoltaics (HOPE-PV)

Online, Spain, 2020 November 3rd - 13th

Organizers: Sergey M. Aldoshin, Jovana Milic, Keith Stevenson and Pavel Troshin

Poster, Alexander Mumyatov, 055
Publication date: 23rd October 2020

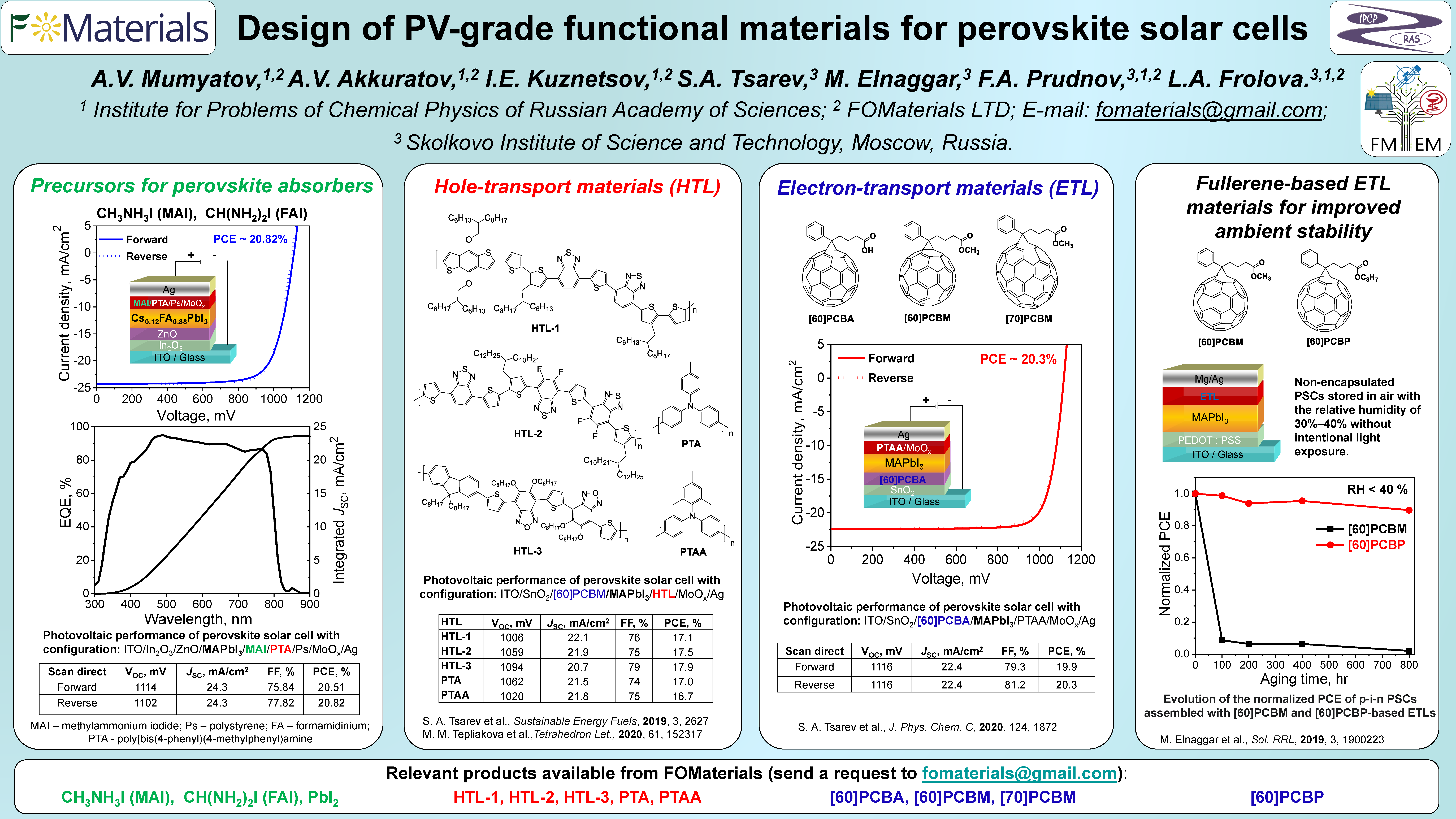

ePoster:

Perovskite solar cells (PSCs) attract a considerable attention of the research community due to high power conversion efficiency (PCE), which was increased from the 3.8% in 2009 to 25.5% in 2020. Perovskite solar cells outperform many other PV technologies such as organic, thin film chalcogenide, amorphous and multicrystalline silicon solar cells and come very close to the performance of crystalline silicon photovoltaics [[1],[2]]. Perovskite-type semiconductors offer unprecedented combination of solution-processibility with unique defect tolerance, tunability of bandgaps, high extinction coefficients and long carrier diffusion lengths [[3]-[4][5]]. High efficiency and potentially low cost of PSCs point toward a tremendous commercial potential of this new PV technology, which is currently impeded by stability issues, which can be solved by developing new advanced materials and processing technologies.

In this presentation, we will highlight the results of the long-term cooperation between FOMaterials LTD, IPCP RAS and Skoltech focused on the development of a panel of key functional materials for perovskite solar cells. Starting with the production of the PV-grade precursor materials for perovskite solar cells (PbI₂, MAI, FAI) five years ago and coming to more recent development of advanced polymer-based hole-transport materials and fullerene-based electron-transport materials, we were able to demonstrate improved device efficiency (going beyond 20% for the best cell configurations) and enhanced operational stability [[6]-[7][8][9][10][11][12][13]]. While being the exclusive supplier of IPCP RAS and Skoltech research groups within a half of the decade, FOMaterials also emerged as the leading producer of organic and perovskite PV materials within Russia. At the current stage, we are looking for an extension of our network of collaborations and supporting global research activities focused on the development and commercialization of organic and perovskite PV technologies.

References:

[1] [1] Kojima, A.; Teshima, K.; Shirai, Y.; Miyasaka, T. Organometal Halide Perovskites as Visible-Light Sensitizers for Photovoltaic Cells. J. Am. Chem. Soc. 2009, 131, 6050–6051.

[2] [2] Green, M. A.; Dunlop, E. D.; Hohl‐Ebinger, J.; Yoshita, M.; Kopidakis, N.; Hao, X. Solar Cell Efficiency Tables (Version 56). Prog Photovolt Res Appl 2020, 28 (7), 629–638.

[3] [3] Cai, B.; Xing, Y.; Yang, Z.; Zhang, W.-H.; Qiu, J. High Performance Hybrid Solar Cells Sensitized by Organolead Halide Perovskites. Energy Environ. Sci. 2013, 6 (5), 1480.

[4] [4] Jung, E. H.; Jeon, N. J.; Park, E. Y.; Moon, C. S.; Shin, T. J.; Yang, T.-Y.; Noh, J. H.; Seo, J. Efficient, Stable and Scalable Perovskite Solar Cells Using Poly(3-Hexylthiophene). Nature 2019, 567, 511–515.

[5] [5] Tong, J.; Song, Z.; Kim, D. H.; Chen, X.; Chen, C.; Palmstrom, A. F.; Ndione, P. F.; Reese, M. O.; Dunfield, S. P.; Reid, O. G.; Liu, J.; Zhang, F.; Harvey, S. P.; Li, Z.; Christensen, S. T.; Teeter, G.; Zhao, D.; Al-Jassim, M. M.; van Hest, M. F. A. M.; Beard, M. C.; Shaheen, S. E.; Berry, J. J.; Yan, Y.; Zhu, K. Carrier Lifetimes of >1 Μs in Sn-Pb Perovskites Enable Efficient All-Perovskite Tandem Solar Cells. Science 2019, 364 (6439), 475–479.

[6] [6] Tsarev, S.; Yakushchenko, I. K.; Luchkin, S. Y.; Kuznetsov, P. M.; Timerbulatov, R. S.; Dremova, N. N.; Frolova, L. A.; Stevenson, Keith. J.; Troshin, P. A. A New Polytriarylamine Derivative for Dopant-Free High-Efficiency Perovskite Solar Cells. Sustainable Energy Fuels 2019, 3 (10), 2627–2632.

[7] [7] Mu, X.; Wang, X.; Quan, J.; Sun, M. Photoinduced Charge Transfer in Donor-Bridge-Acceptor in One- and Two-Photon Absorption: Sequential and Superexchange Mechanisms. J. Phys. Chem. C 2020, 124 (9), 4968–4981.

[8] [8] Elnaggar, M.; Elshobaki, M.; Mumyatov, A.; Luchkin, S. Yu.; Dremova, N. N.; Stevenson, K. J.; Troshin, P. A. Molecular Engineering of the Fullerene‐Based Electron Transport Layer Materials for Improving Ambient Stability of Perovskite Solar Cells. Sol. RRL 2019, 3 (9), 1900223.

[9] [9] Tepliakova, M. M.; Akkuratov, A. V.; Tsarev, S. A.; Troshin, P. A. Suzuki Polycondensation for the Synthesis of Polytriarylamines: A Method to Improve Hole-Transport Material Performance in Perovskite Solar Cells. Tetrahedron Letters 2020, 61 (38), 152317.

[10] [10] Boldyreva, A. G.; Zhidkov, I. S.; Tsarev, S.; Akbulatov, A. F.; Tepliakova, M. M.; Fedotov, Y. S.; Bredikhin, S. I.; Postnova, E. Y.; Luchkin, S. Y.; Kurmaev, E. Z.; Stevenson, K. J.; Troshin, P. A. Unraveling the Impact of Hole Transport Materials on Photostability of Perovskite Films and p–i–n Solar Cells. ACS Appl. Mater. Interfaces 2020, 12 (16), 19161–19173.

[11] [11] Akkuratov, A. V.; Nikitenko, S. L.; Kozlov, A. S.; Kuznetsov, P. M.; Martynov, I. V.; Tukachev, N. V.; Zhugayevych, A.; Visoly-Fisher, I.; Katz, E. A.; Troshin, P. A. Design of Novel Thiazolothiazole-Containing Conjugated Polymers for Organic Solar Cells and Modules. Solar Energy 2020, 198, 605–611.

[12] [12] Kuznetsov, I. E.; Nikitenko, S. L.; Kuznetsov, P. M.; Dremova, N. N.; Troshin, P. A.; Akkuratov, A. V. Solubilizing Side Chain Engineering: Efficient Strategy to Improve the Photovoltaic Performance of Novel Benzodithiophene‐Based (X‐DADAD) n Conjugated Polymers. Macromol. Rapid Commun. 2020, 2000430.

[13] [13] Akkuratov, A. V.; Kuznetsov, I. E.; Martynov, I. V.; Sagdullina, D. K.; Kuznetsov, P. M.; Ciammaruchi, L.; Prudnov, F. A.; Klyuev, M. V.; Katz, E. A.; Troshin, P. A. What Can We Learn from Model Systems: Impact of Polymer Backbone Structure on Performance and Stability of Organic Photovoltaics. Polymer 2019, 183, 121849.
