Waving at Solar Cells: Hand Gesture Recognition for IoT Objects Based on Patterned Monolithic Dye-Sensitized Solar Cells
Gethin Thomas a, Dr Matt Carnie a
a SPECIFIC – Swansea University Bay Campus, Fabian Way, Crymlyn Burrows, SA1 8EN Swansea
International Conference on Hybrid and Organic Photovoltaics
Proceedings of International Conference on Hybrid and Organic Photovoltaics (HOPV22)
València, Spain, 2022 May 19th - 25th
Organizers: Pablo Docampo, Eva Unger and Elizabeth Gibson
Oral, Gethin Thomas, presentation 037
DOI: https://doi.org/10.29363/nanoge.hopv.2022.037
Publication date: 20th April 2022

Internet of Things (IoT) devices have become prevalent, embedding intelligence into our environment. It is projected that over 75 billion IoT devices will be connected by 2025 worldwide, with the majority being operated indoors. Dye-sensitised solar cells (DSSC) have recently been optimised for ambient light, having the capabilities of providing sufficient energy for self-powered IoT devices [1].

Interaction with digital technologies, termed Human Computer Interaction (HCI), is often achieved via physical mechanisms (e.g. remote controls, cell phones) which can hinder the natural interface between users and IoT devices, a key consideration for HCI. What if the solar cell that is powering the IoT device can also recognise hand gestures which would allow the user to naturally interact with the system? Previous attempts to achieve this have necessarily employed an array of solar cell/photodiodes to detect directionality.

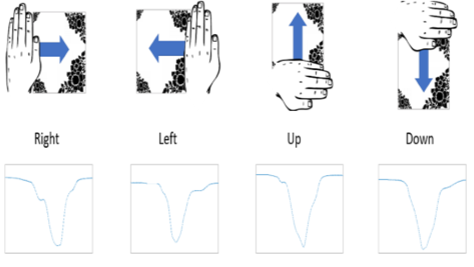

In this work, we demonstrate that by monitoring the photocurrent output of an asymmetrically patterned monolithic (i.e., single cell) DSSC, and using machine learning, we can recognise simple hand gestures, achieving an accuracy prediction of 97.71%.

This work shows that, DSSCs are the perfect choice for self-powered interactive technologies, both in terms of powering IoT devices in ambient light conditions and having aesthetic qualities that are prioritised by users.  As well as powering interactive technologies, they can also provide a means of interactive control, so one day, perhaps we’ll all be waving at solar cells.
