Integration of a Superconducting Nanowire Detector into a Confocal Microscope for TRPL-Mapping: Sensitivity and Time Resolution

Volker Buschmann^a, Eugeny Ermilov^a, Felix Koberling^a, Jürgen Breitlow^a, Hugo Kooiman^b, Johannes W. N. Los^b, Jan van Willigen^b, Mario U. Castaneda^b, Jessica de Wild^c^,^d^,^e, Guy Brammertz^c^,^d^,^e, Rainer Erdmann^a

^aPicoQuant GmbH, Rudower Chaussee 29, D-12489 Berlin, Germany

^bSingle Quantum, Molengraaffsingel 10, 2629 JD Delft, The Netherlands

^cHasselt University, imo-imomec, Martelarenlaan 42, 3500 Hasselt, Belgium

^dImec, imo-imomec, Thor Park 8320, 3600 Genk, Belgium

^eEnergyVille, imo-imomec, Thor Park 8320, 3600 Genk, Belgium

International Conference on Hybrid and Organic Photovoltaics
Proceedings of International Conference on Hybrid and Organic Photovoltaics (HOPV22)

València, Spain, 2022 May 19th - 25th

Organizers: Pablo Docampo, Eva Unger and Elizabeth Gibson

Poster, Volker Buschmann, 217
Publication date: 20th April 2022

Superconducting Nanowire Single Photon Detectors (SNSPDs) were introduced to the market in 2003 and since then have found a niche in multiple quantum optics applications, due to their outstanding properties such as fast instrument response and high quantum efficiency.¹ The high quantum efficiency is especially important for material science applications in the IR-range beyond 1000 nm, where other available single photon detectors have a low sensitivity, high dark noise and slow time response.

We have integrated a SNSPD (Single Quantum) into a standard MicroTime 100 confocal fluorescence lifetime microscope (PicoQuant) in order to compare the performance of different SNSPD designs with a standard IR-PMT for time-resolved photoluminescence (TRPL) measurements and imaging on a CIGS ( Cu(InGa)Se₂ ) device.

While one of the used SNSPDs had a classical single mode fiber coupling to guide the light onto the sensor, the other detector used an internal multimode fiber instead².

We detected a significant increase in photoluminescence sensitivity of both designs compared to a standard IR-PMT, as well as a several times higher sensitivity of the multimode-fiber coupled nanowire compared to the singe-mode fiber one, in spite of comparable photon quantum efficiencies in this wavelength range for the sensor only. The increased sensitivity combined with the lower dark count rate resulted in an increase of the signal-to-noise ratio by more than 2 orders of magnitude compared to the IR-PMT.

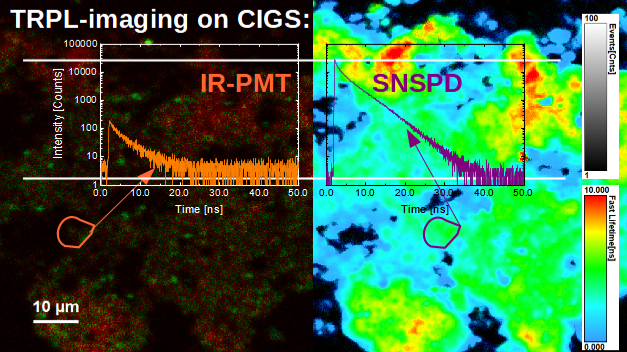

The high sensitivity of SNSPDs combined with high temporal resolution (instrument response function of the overall system was below 100 ps) allows to identify and investigate highly quenched micrometer-sized defect sides of the thin-layer CIGS sample even at low illumination levels.
