Molecular interaction of natural dye based on Zea mays and Bixa orellana with nanocrystalline TiO2 in dye sensitized solar cells
María Quintana a, Anthony Huaman a, Karim Salazar b
a Center for the Development of Advanced Materials and Nanotechnology, Universidad Nacional de Ingeniería
b Universidad Nacional Agraria La Molina
International Conference on Hybrid and Organic Photovoltaics
Proceedings of International Conference on Hybrid and Organic Photovoltaics (HOPV22)
València, Spain, 2022 May 19th - 25th
Organizers: Pablo Docampo, Eva Unger and Elizabeth Gibson
Invited Speaker Session, María Quintana, presentation 239
Publication date: 20th April 2022

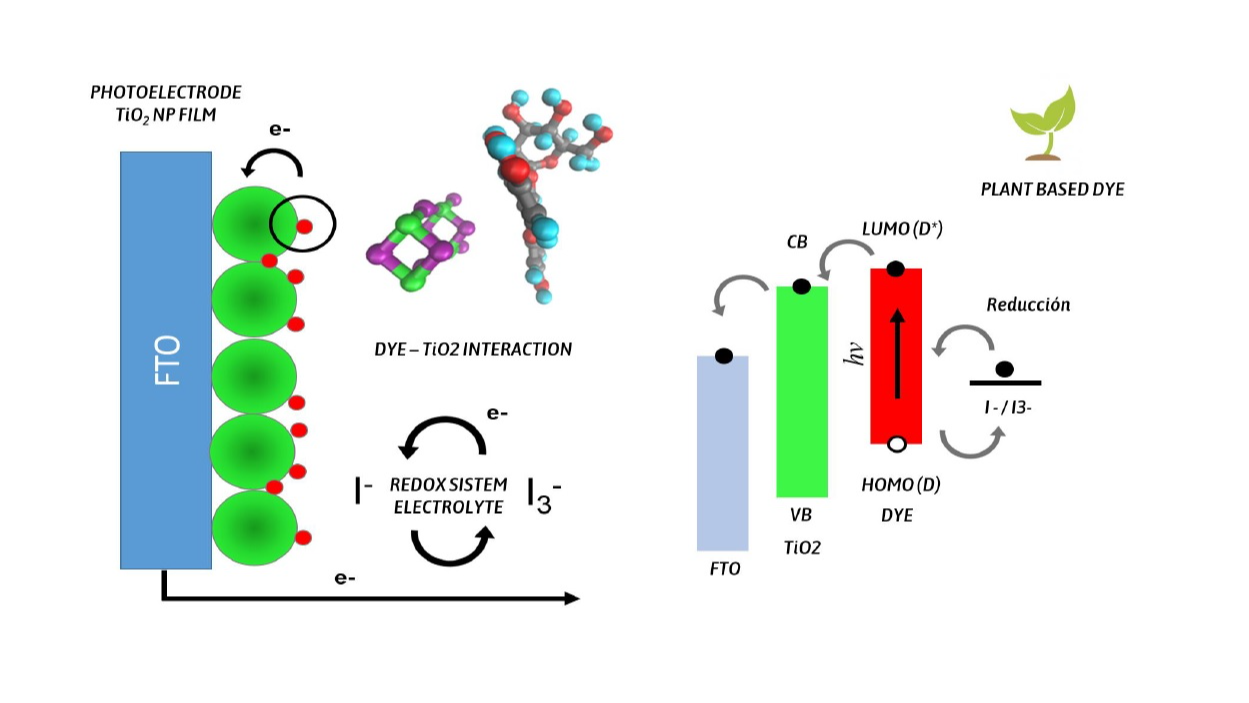

This work studies the interaction between natural dyes obtained from Peruvian Zea mays and Bixa orellana seeds and nanostructured titanium dioxide, in order to evaluate their function as sensitizers into solar cell devices. The effective attachment of dyes to the TiO2 layer is corroborated by the comparison of UV-Visible absorption and FT-IR spectra of the extracted dye solutions and sensitized TiO2 electrodes. The principal compounds from the seed extraction of Zea mays and Bixa orellana are cyanidin-3-glucoside (C3G) and bixin respectively, which were analyzed in an isolated dye/cluster TiO2 system by molecular dynamic simulation. The results showed that chemisorption is carried out through a consecutive deprotonation process, and Ti-O bond formation by the monodentate OH and COOH anchoring groups, for C3G and bixin respectively. Finally, we tested the effect of the dye - TiO2 interaction on the charge transfer by the comparison of the current-voltage curves and incident photon-to-current conversion efficiency (IPCE) of the cells. We found that dye agglomeration in films with Bixa orellana and high charge recombination of films with Zea mays are critical points to be solved. For this reason, we propose the pretreatment of the TiO2 film before sensitization with Bixa orellana and analyze the effects of pH in Zea mays solution, in order to obtain better device efficiencies.

he authors gratefully acknowledge support from the PhD program in Physics of the National University of Engineering funded through Resolution No. 168-2015- FONDECYT and the equipment project financed through Resolution No. 008-2018-FONDECYT-BM.
