The impact of printable copper complex redox shuttle incorporating 2D hybrid Ti3C2 MXene to enhance quasi-solid-state dye-sensitized solar cells performance
Sepideh Khazraei a, Jari Hannu a
a Microelectronics Research Unit Faculty of Information Technology and Electrical Engineering University of Oulu- Finland
Poster, Sepideh Khazraei, 216
Publication date: 6th February 2024

Dye-sensitized solar cells (DSSCs) have gained attention not only for their potential in IoT technology
and ambient light harvesting but also for their role in enhancing energy efficiency across the information
and communication technology (ICT) landscape. The challenges faced by DSSCs, such as leakage and
sealing issues with their liquid electrolytes, have hindered their industrial fabrication. To address this
problem, quasi-solid-state (QS) gel polymer electrolytes have emerged as a promising solution, despite
their initial limitations related to low conductivity and ion transfer rates [1-2]. Ti3C2 MXene with a unique
two-dimensional layer structure [3] can be utilized as a gel polymer-based electrolyte due to its high
conductivity, high electrochemical properties, and anisotropic charge transfer to improve DSSCs

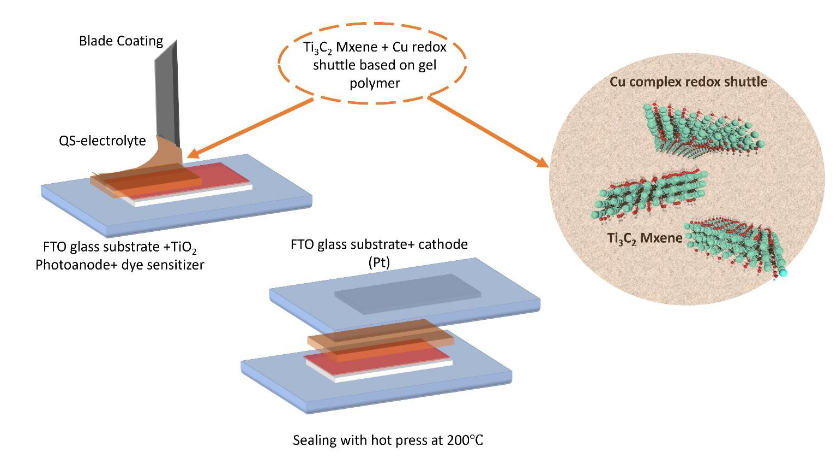

performance [4]. Integrating Ti3C2 MXene into a copper complex (Cu)-based redox shuttle within the gel
polymer matrix introduces a novel QS-electrolyte, addressing liquid electrolyte limitations while enhancing
conductivity, reducing charge transfer resistance, and increasing short current density (JSC) during light
soaking for improved QS-DSSC performance. This innovative approach holds potential for improving charge
transfer and facilitating the diffusion of electrolyte ions, thereby enhancing the performance of DSSCs
fabrication within the context of sustainable technologies for renewable energy applications

S.Khazraei is grateful for the support of the grant no. 00230601 from Finnish Cultural Foundation (SKR).
1. Venkatesan, S., Surya Darlim, E., Tsai, M. H., Teng, H. & Lee, Y. L. Graphene Oxide Sponge as Nanofillers
in Printable Electrolytes in High-Performance Quasi-Solid-State Dye-Sensitized Solar Cells. ACS Appl
Mater Interfaces 10, 10955–10964 (2018).
2. Cheng, F., Wu, C., Wang, S. & Wen, S. Polydopamine-Modified Electrospun Polyvinylidene Fluoride
Nanofiber Based Flexible Polymer Gel Electrolyte for Highly Stable Dye-Sensitized Solar Cells. ACS
Omega 6, 28663–28670 (2021).
3. Karimipour, M., Parambil, A. P., Tanko, K. T. & Zhang, T. Functionalized MXene / Halide Perovskite
Heterojunctions for Perovskite Solar Cells Stable Under Real Outdoor Conditions. 2301959, 1–16
4. Masud, Zhou, H. & Kim, H. K. Effective redox shuttles for polymer gel electrolytes-based quasi-solid-
state dye-sensitized solar cells in outdoor and indoor applications: Comprehensive comparison
and guidelines. Mater Today Energy 34, 101299 (2023).
