Printed non-fullerene acceptor (NFA) organic photovoltaics (OPVs) are rapidly approaching record power conversion efficiencies (PCEs), but further progress towards manufacturing-relevant modules requires simultaneous control of interfacial losses, process tolerance, and operational stability. A major bottleneck resides at the transparent electrode/active-layer interface, where non-ideal energy-level alignment, interfacial disorder, and defect-mediated recombination reduce fill factor (FF) and accelerate degradation, especially when devices are translated from small-area lab cells to printed, larger-area architectures. Carbazole–phosphonic acid self-assembled monolayers (SAMs) have emerged as an attractive route to create ultrathin hole-selective contacts on ITO, because they can tune the ITO work function, improve wetting/film formation of the organic stack, and be compatible with low-temperature processing. However, single-component SAMs may form quasi-monolayers with incomplete coverage and microscopic defects; in addition, the molecular geometry of the anchoring group, spacer, and substituents can impose a trade-off between dense packing (coverage/passivation) and charge transport (tunneling distance and series resistance). These issues become increasingly consequential for printed OPVs, where coating dynamics and large-area uniformity amplify sensitivity to interfacial imperfections.
Here we summarize and connect three complementary studies that establish a molecular design–assembly framework for dense, defect-tolerant carbazole SAM interfaces in high-efficiency NFA OPVs, with a focus on scalability relevant to Symposium L. First, systematic monosubstituent engineering in 1X-2PACz (X = F, Cl, Br, I, CF3) reveals that modest chemical modifications can strongly influence packing, interface dipoles, and ultimately device performance. In representative NFA systems, Cl/Br/I substitutions favor improved packing and more favorable interfacial energetics, enabling PCEs up to 19.03% in PM6:L8-BO and 20.12% in D18:L8-BO devices, while F and CF3 tend to increase interfacial disorder and reduce performance. These results highlight that “near-identical” SAMs can behave very differently at buried interfaces, emphasizing the need for chemistry-informed selection when targeting robust printed fabrication.
Second, spacer-length engineering in chlorinated nPACz derivatives (2Cl-nPACz, n = 2–5) decouples interfacial coverage/passivation from charge-transport limitations by explicitly controlling tunneling distance. Structural and spectroscopic analysis indicates that shorter spacers strengthen intermolecular interactions and increase ITO coverage while reducing series resistance; conversely, longer spacers increase the hole-tunneling barrier and progressively degrade FF and Voc. In this series, 2Cl-2PACz yields the most favorable balance and achieves up to 18.95% PCE. Together, these two studies provide quantitative guidance: dense packing and defect passivation are crucial, but they must be achieved without introducing excessive transport resistance at the buried contact.

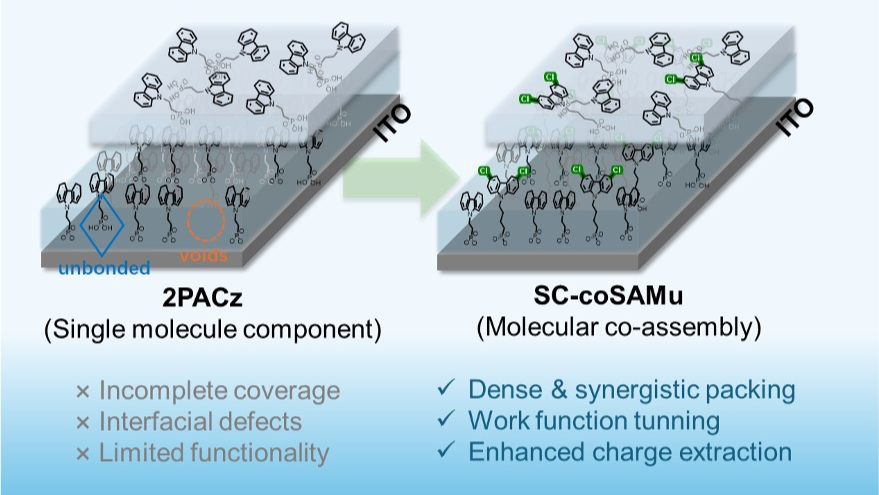

Guided by these insights, our third contribution introduces a co-assembled multilayer SAM (coSAMu) strategy designed for scalable processing. Instead of relying on a single molecule to simultaneously set the work function, maximize coverage, and maintain low resistance, we combine 2PACz and a longer-spacer chlorinated analogue (2Cl-4PACz) using blend casting and sequential casting to control interfacial composition. The resulting layered interface comprises a 2PACz-rich chemisorbed bottom layer that primarily sets the ITO work function and an upper region enriched in 2Cl-4PACz that fills voids and passivates defects. This defect-filling architecture suppresses trap-assisted recombination, improves charge extraction, and delivers 20.1% efficiency (0.042 cm2) with FF above 81%. Importantly for printed and manufacturing-relevant OPVs, the interfacial strategy translates to scale: a 17.14 cm2 six-subcell mini-module reaches 17.0% efficiency, compared to 12.2% for the 2PACz control. Overall, substituent tuning, spacer engineering, and multilayer co-assembly provide a general pathway to dense, defect-tolerant buried contacts that support high-efficiency, printed, and potentially more stable NFA OPVs by reducing the sensitivity to interfacial disorder and coverage gaps.
We thank the Swedish Research Council, the Swedish Research Council Formas, and The Knut and Alice Wallenberg Foundation (2022.0192), the Wallenberg Initiative Materials Science for Sustainability (WISE-AP01-D19) and Chalmers Areas of Advance Energy and Nano for financial support. I gratefully acknowledge the contributions of my co-authors in Refs. 1–3. Individual names are omitted here due to space limitations.
