Evaporation-Assisted Deposition of FAPbI3 and Interlayer for Solar Cells with Stability Exceeding 10,000 Hours
Cristian A. Villalobos Meza a b c d, Aslihan H. Babayigit a c d, Sunil Suresh a c d, Tamara Merckx a c d, Tom Aernouts a c d, Bart Vermang a c d, Yinghuan Kuang a c d, Jef Poortmans a b c d
a Imec, Imo-imomec, Thor Park 8320, 3600, Genk, Belgium
b Department of Electrical Engineering (ESAT), KU Leuven, Kasteelpark Arenberg 10, Leuven, 3001, Belgium
c Hasselt University, Institute for Materials Research (IMO-IMOMEC), Martelarenlaan 42, 3500 Hasselt, Belgium
d EnergyVille, imo-imomec, Thor Park 8320, 3600 Genk, Belgium
Proceedings of International Conference on Hybrid and Organic Photovoltaics (HOPV26)
Uppsala, Sweden, 2026 May 18th - 20th
Organizers: Gerrit Boschloo, Ellen Moons, Feng Gao and Anders Hagfeldt
Oral, Cristian A. Villalobos Meza, presentation 142
Publication date: 11th March 2026

Hybrid vapor-solution processing offers a promising route to deposit perovskite absorbers on textured substrates, which is particularly attractive for tandem and multijunction photovoltaic applications. However, this approach has been predominantly applied to wide-bandgap compositions, while its potential for FAPbI3-based perovskites remains underexplored. In this work, we investigate the deposition, passivation, and stability of vapor–solution-processed FAPbI3 perovskite solar cells employing sputtered NiOX hole-transport layers in a p–i–n architecture.

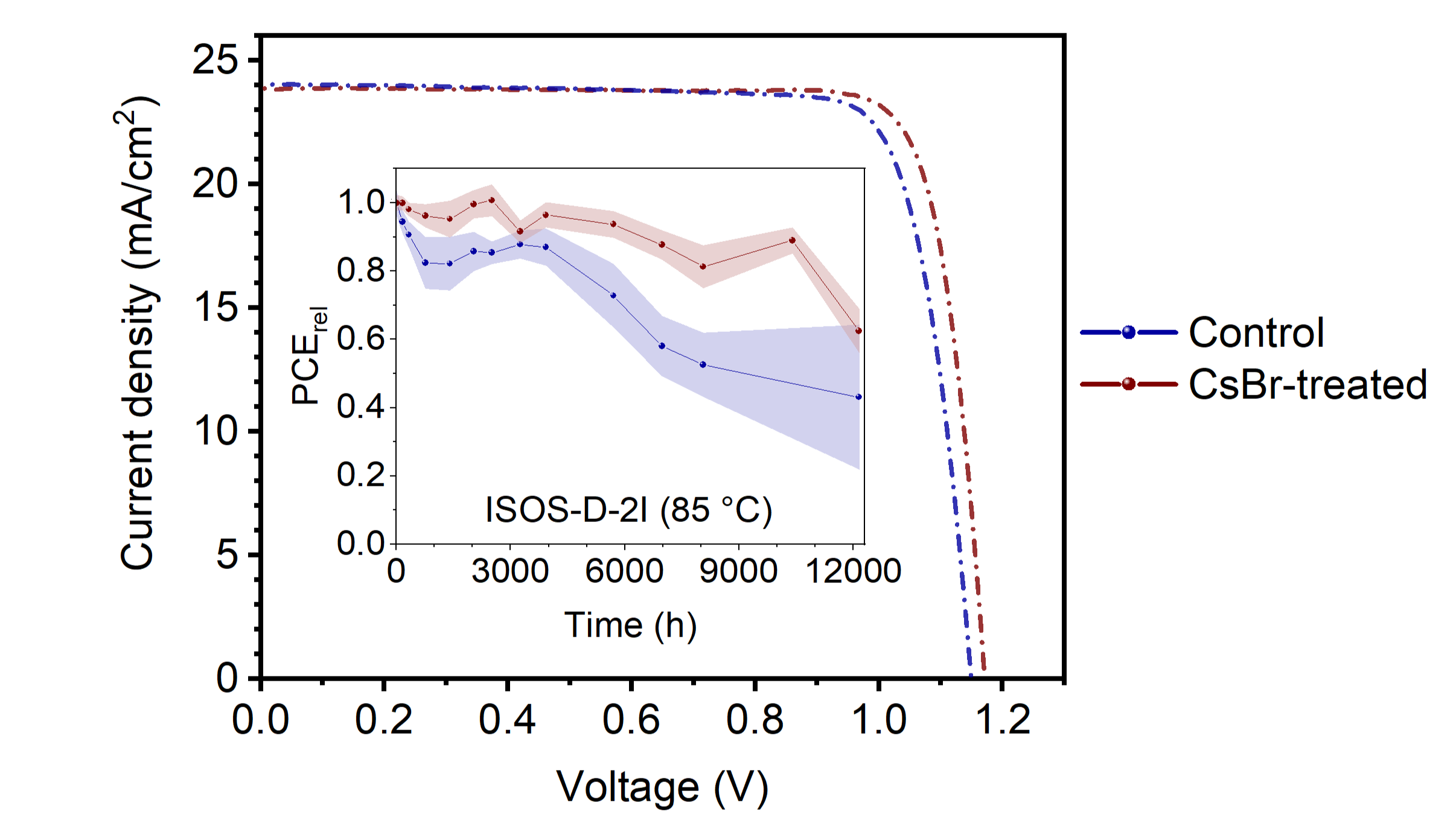

By systematically tuning the organic precursor composition and annealing conditions, we obtain uniform, large-grained perovskite films with minimal residual PbI₂. Building on this optimized baseline, we introduce a dual-interface passivation strategy using ultrathin CsBr layers deposited by thermal evaporation at both the buried NiOX/perovskite interface and the perovskite top surface. Devices incorporating this CsBr treatment achieve power conversion efficiencies up to 23.25%, representing record performance for sputtered NiOX-based p–i–n devices.

Beyond efficiency, the dual-interface passivation leads to exceptional thermal stability. Under ISOS-D-2I aging conditions (85 °C, dark, inert atmosphere), devices retain over 80% of their initial efficiency after more than 10,400 hours, significantly outperforming control devices. Morphological and optoelectronic analyses reveal suppressed formation of Pb-rich secondary phases, more homogeneous surface potentials, and improved preservation of carrier lifetimes upon aging.

Time-of-flight secondary ion mass spectrometry provides insight into the underlying stabilization mechanism, showing extensive redistribution of Cs and Br throughout the perovskite layer and a strong suppression of residual Cl. The presence of mobile Br appears to compensate halide loss during thermal stress, mitigating the formation of halide-deficient domains that lead to perovskite decomposition. Overall, this work demonstrates that scalable, vacuum-deposited interface engineering can simultaneously deliver high efficiency and exceptional thermal stability, highlighting a viable pathway toward durable perovskite photovoltaics compatible with industrial manufacturing.

The authors want to acknowledge funding from the TRIUMPH Horizon Europe project, with grant agreement ID: 101075725

Funding was provided by Research Foundation − Flanders FWO, PhD Fellowship grant 1SE0225N.
