MA-Free Wide-Bandgap Perovskites for Tandem Solar Cells via Hybrid Evaporation–Solution Deposition
Manuela Ferrara a, Anna De Girolamo Del Mauro a, Gennaro V. Sannino a, Maria Federica Caso a, Marco Della Noce a, Eugenia Bobeico a, Pietro Scognamiglio a, Iurie Usatii a, Paola Delli Veneri a, Lucia V. Mercaldo a
a ENEA - Energy Technologies and Renewable Sources Department, ENEA Portici Research Center, Portici (Italy)
Proceedings of International Conference on Hybrid and Organic Photovoltaics (HOPV26)
Uppsala, Sweden, 2026 May 18th - 20th
Organizers: Gerrit Boschloo, Ellen Moons, Feng Gao and Anders Hagfeldt
Poster, Manuela Ferrara, 213
Publication date: 11th March 2026

Monolithic perovskite/silicon tandem solar cells are emerging as a leading photovoltaic technology to overcome the efficiency limits of single-junction silicon devices. Achieving high-performance tandem devices requires deposition methods capable of producing uniform, high-quality perovskite layers with tunable optoelectronic properties.

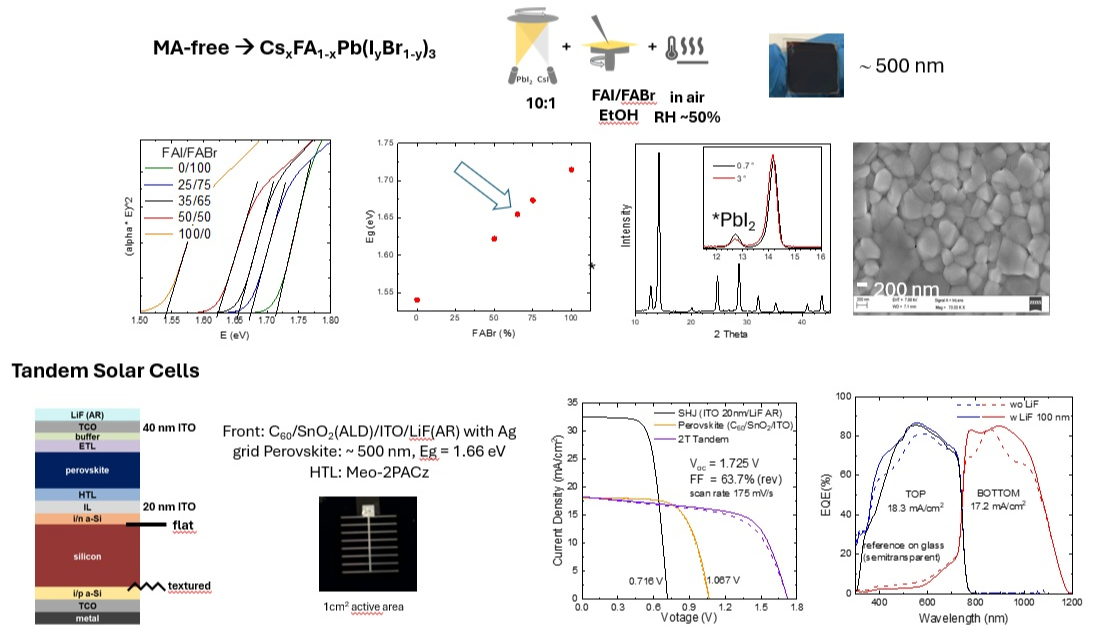

Here, we report a hybrid two-step deposition strategy combining thermal evaporation and solution processing for the fabrication of methylammonium-free mixed-halide perovskites. CsxFA1−x Pb (IyBr1−y)3 films were prepared via co-evaporation of PbI/CsI precursor layers followed by spin-coating of FABr/FAI solutions and thermal annealing. This approach enables the formation of thermally stable wide-bandgap perovskite absorbers suitable for tandem solar cells.

By adjusting the FABr/FAI ratio, the perovskite bandgap was tuned from 1.54 to 1.72 eV. Structural, morphological, and optical characterization using X-ray diffraction, scanning electron microscopy, photoluminescence, and UV–vis spectroscopy confirmed the formation of crystalline, compact films with controllable optoelectronic properties.

A composition with 1.66 eV bandgap, optimal for tandem integration, was implemented in p-i-n perovskite solar cells on glass/ITO substrates using PTAA or MeO-2PACz as hole transport layers and thermally evaporated C60 as electron transport layer. Additive engineering and process optimization were explored to enhance film uniformity, reproducibility and device performance.

A semitransparent top-cell architecture was realized using a C60/SnO2/TCO rear contact stack based on ALD-deposited SnO2 and sputtered ITO. Ongoing work focuses on further improving device performance and scalability toward monolithic tandem implementation.

These results demonstrate hybrid evaporation–solution deposition as a promising strategy for scalable fabrication of wide-bandgap perovskite absorbers for high-efficiency tandem photovoltaics.

This work was supported by MASE (Ministero dell'Ambiente e della Sicurezza Energetica) in the framework of the Operating Agreements with ENEA for Mission Innovation and for Research on the Electric System.
