Electron Transport Layer Interfaces in Perovskite Solar Cells: X-ray Photoelectron Spectroscopy Study
Bhavya Rakheja a, Adam Hultqvist a, Natalia M. Martin a, Tobias Törndahl a
a Department of Materials Science and Engineering; Solar Cell Technology, Uppsala University, Uppsala, Box 35 SE-751 03, Sweden.
Proceedings of International Conference on Hybrid and Organic Photovoltaics (HOPV26)
Uppsala, Sweden, 2026 May 18th - 20th
Organizers: Gerrit Boschloo, Ellen Moons, Feng Gao and Anders Hagfeldt
Poster, Bhavya Rakheja, 228
Publication date: 11th March 2026

Metal halide perovskite (MHP) solar cell technology has already demonstrated power conversion efficiencies comparable to those of well-established silicon solar cells. However, the major challenges hindering its widespread adoption and commercialization stem from its poor long-term stability. Most stability investigations are performed on fully fabricated devices, which often obscures the underlying reaction mechanisms occurring at buried interfaces. In particular, the interfaces between the perovskite absorber and the adjacent charge transport layers (CTLs) play a decisive role in governing both efficiency and stability. Consequently, a fundamental understanding of the interfacial reactions between the perovskite and CTLs is critically important.

SnOx grown by atomic layer deposition (ALD) is widely employed in standard p-i-n perovskite solar cells (PSCs) deposited on perovskite/C60 stacks. The SnOx layer not only facilitates efficient electron transport but also protects the underlying perovskite/C60 from sputtering damage during the subsequent deposition of transparent conductive oxides. Nevertheless, the precursors used in ALD processes are often highly reactive toward the underlying surface and can induce the formation of new interfacial species. In our previous work, we demonstrated that SnOx deposited directly by ALD onto perovskite surfaces leads to the formation of unfavorable interfaces.[1],[2] Specifically, ALD‑grown SnOx on FAPbX3 (X = I, Br) results in the degradation of FA+ cation. Moreover, iodide‑based perovskites suffer from PbI2 formation, while bromide‑based perovskites exhibit Sn-Br formation.

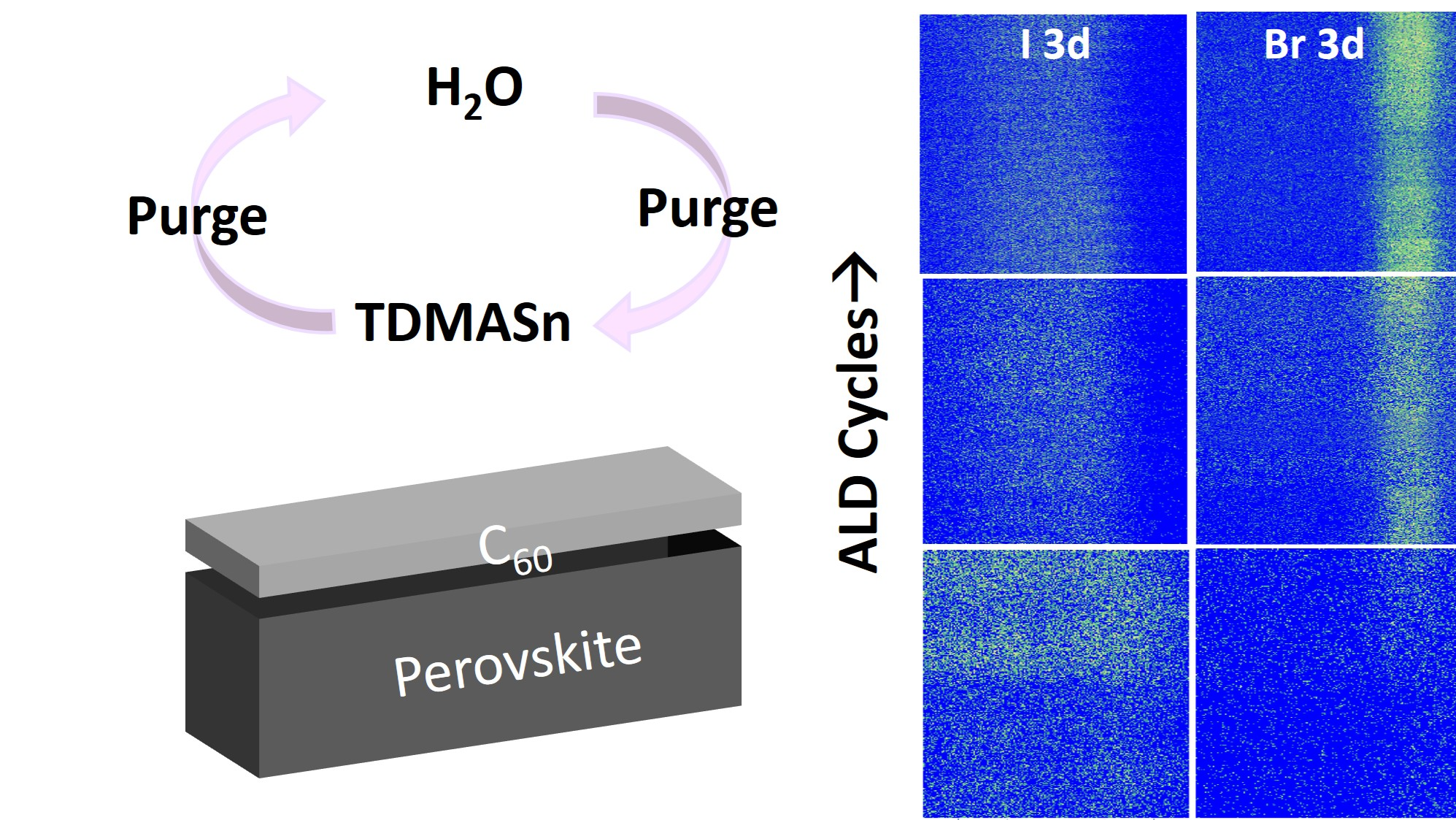

Motivated by these findings, the present work further investigates whether an in-between C60 layer fully suppresses the interaction between the perovskite surface and SnOx precursors by performing in situ SnOx deposition on different perovskite/C60 architectures. The growth dynamics and interface formation were monitored through in situ SnOx deposition combined with parallel X‑ray photoelectron spectroscopy measurements. This approach enabled time‑resolved, cycle‑by‑cycle tracking of interfacial interactions and SnOx evolution on perovskite/C60 structures. The results provide detailed insights into perovskite‑composition‑dependent ion‑migration dynamics during SnOx ALD, which critically influence the growth behavior and stoichiometry of SnOx during the initial deposition cycles.

We acknowledge funding from the Solar Electricity Research Center, Sweden (SOLVE). SOLVE is co-financed by the Swedish Energy Agency (project number 52693-1) as a national centre of excellence. We acknowledge the MAX IV Laboratory for beamtime on the SPECIES beamline under proposal 20240149. Research conducted at MAX IV, a Swedish national user facility, is supported by Vetenskapsrådet (Swedish Research Council, VR) under contract 2018-07152, Vinnova (Swedish Governmental Agency for Innovation Systems) under contract 2018-04969 and Formas under contract 2019-02496.
