Applications of X-ray Spectroscopy for in situ Study of CO2 Conversion Electrocatalysts
Laura C. Pardo Perez a, Sasho Stojkovikj a, Alexander Arndt a, Ibbi Y. Ahmet b, Joshua T. Arens c, Federico Dattila c, Núria López c, Matthew Mayer a
a Helmholtz-Zentrum Berlin für Materialien und Energie GmbH, Germany, Berlin, Germany
b Institute for Solar Fuels, Helmholtz-Zentrum Berlin für Materialien und Energie GmbH, Hahn-Meitner-Platz 1, 14109 Berlin, Germany
c Institute of Chemical Research of Catalonia (ICIQ), Barcelona Institute of Science and Technology (BIST), Avinguda dels Països Catalans, 16, Tarragona, Spain
Proceedings of International Conference on Frontiers in Electrocatalytic Transformations (INTERECT)
València, Spain, 2021 November 22nd - 23rd
Organizers: Elena Mas Marzá and Ward van der Stam
Invited Speaker, Matthew Mayer, presentation 004
Publication date: 10th November 2021

Recent developments in electrocatalyst design for carbon dioxide conversion are revealing that various design principles -- such as catalysts based on metal oxides, doped metals or metal alloys, and metal atoms in molecular coordination environments -- demonstrate behaviors which differ from their simple metal counterparts, revealing strategies toward enhancing selectivity toward high-value products while suppressing undesired ones. Continued rational development of catalysts demands that we have a detailed understanding of the structure-function relationships which dictate selectivity. However, under the harsh reaction conditions of CO2 reduction (e.g. highly negative potential, local pH extremes) many of these catalysts are prone to significant structure changes, making it difficult to understand the true catalytically active form of the electrode materials. "Post mortem" analyses often fail to accurately represent the active form of catalysts, so methods are demanded which are capable of examining the electrode during operation, e.g. in situ or operando.

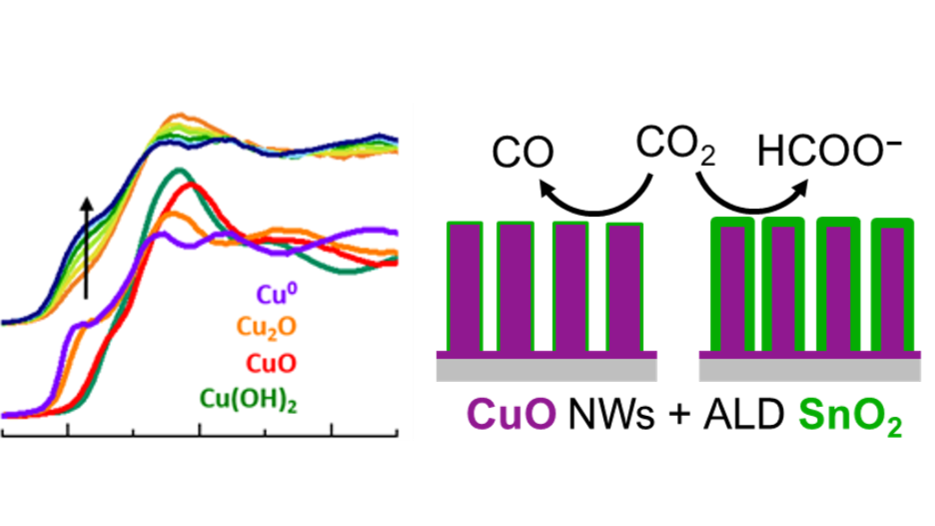

X-ray absorption spectroscopy (XAS) techniques can be uniquely powerful in investigating electrochemical systems under operating conditions. The high energies of X-ray photons can enable them to be used under ambient conditions and to pass through liquid electrolyte. With a tunable energy source (e.g. synchrotron), different elements can be selectively probed due to their distinct absorption edges. A wide range of information can be revealed using X-ray spectroscopy methods, including composition, oxidation states, and local coordination environment. But in situ XAS is usually bulk sensitive, whereas catalysis occurs at surfaces, so complimentary surface-sensitive methods such as X-ray photoelectron spectroscopy (XPS) are valuable. When conducted using "quasi in situ" methods, XPS can provide a good compromise between surface sensitivity and in situ conditions. Performing both XAS and XPS allows one to gain a detailed understanding of dynamic electrocatalysts. In this talk I will explain the approaches we use for both, including their pros and cons, in the framework of our study on Cu-Sn catalysts[1] with compositions tunable to achieve selective CO2 conversion to either carbon monoxide or formate.

Experimental support: Robert Wendt, Ana Guilherme Buzanich, Martin Radtke, Veronica Davies, Katja Höflich, Eike Köhnen, Philipp Tockhorn, Ronny Golnak, Jie Xiao, Götz Schuck, Markus Wollgarten, Lifei Xi, Álvaro Diaz Duque, Christian Höhn, Karsten Harbauer, René Gunder and Michael Tovar. This work was supported by the Helmholtz Association’s Initiative and Networking Fund (Helmholtz Young Investigator Group VH-NG-1225) and the Helmholtz Climate Initiative (Net-Zero-2050). The research utilized instrumentation within the Helmholtz Energy Materials Foundry (HEMF), the HySPRINT Helmholtz Innovation Lab, the HZB X-ray core lab, the HZB corelab Correlative Microscopy and Spectroscopy and the HZB Institute for Solar Fuels. We thank HZB for the allocation of beamtime at the BESSY II synchrotron where X-ray absorption measurements were conducted at beamlines KMC-2, UE56-2_PGM-2 and BAMline. J. T. Arens, F. Dattila, and N. López acknowledge the financial support from the European Union (project FlowPhotoChem 862453-FLOWPHOTOCHEM) as well as the Barcelona Supercomputing Center (BSC-RES) for providing generous computational resources.
