Pencil graphite rods decorated with nickel and nickel–iron as low-cost oxygen evolution reaction electrodes
Ramón Arcas a, Yuuki Koshino b, Elena Mas Marzá a, Ryuki Tsuji b, Hideaki Masutani b, Eri Miura Fujiwara b, Yuichi Haruyama c, Seiji Nakashima d, Seigo Ito b, Francisco Fabregat Santiago b
a Institute of Advanced Materials (INAM), Universitat Jaume I, 12006 Castelló, Spain
b Department of Materials and Synchrotron Radiation Engineering, Graduate School of Engineering, University of Hyogo, 2167 Shosha, Himeji, Hyogo 671-2280, Japan
c Laboratory of Advanced Science and Technology for Industry, University of Hyogo, 3-1-2 Kouto, Ako, Hyogo 678-1205, Japan
d Department of Electronics and Computer Science, Graduate School of Engineering, University of Hyogo, 2167 Shosha, Himeji, Hyogo 671-2280, Japan
Proceedings of International Conference on Frontiers in Electrocatalytic Transformations (INTERECT)
València, Spain, 2021 November 22nd - 23rd
Organizers: Elena Mas Marzá and Ward van der Stam
Poster, Ramón Arcas, 033
Publication date: 10th November 2021

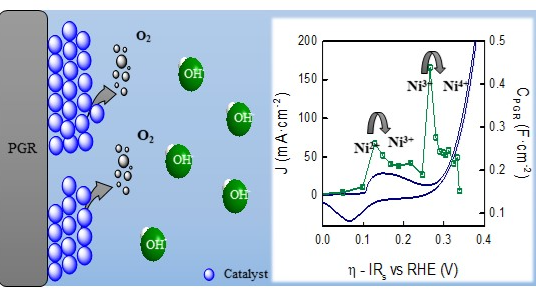

Electrocatalysis constitutes one of the most promising alternatives to produce green hydrogen. For this purpose, electrodes based on nickel oxide hydroxide (NiOOH) and its derivatives doped with iron have attracted special attention due to their high performance in alkaline media. In this work, a procedure based on highly porous flame annealed Pencil Graphite Rods have been performed for the preparation of Ni, Fe and NiFe decorated electrodes. Beyond the low cost and reasonable performance obtained, we provide a detailed analysis of the electrochemical response of these electrodes using impedance spectroscopy, which provides novel information that may help to understand the behaviour of Ni based electrodes in general. Detection of the Ni phase transitions during electrochemical measurements have traditionally been performed by non-electrochemical measurements. Our results show the potential of using impedance spectroscopy to characterize these electrodes under operating conditions. In this sense, through the analysis of the electrode capacitance we were able to separate the Ni2+/Ni3+ and Ni3+/Ni4+ redox transitions, including the identification of the hydrated α-Ni(OH)2/γ-NiOOH and non-hydrated β-Ni(OH)2/β-NiOOH) phases. Finally, with these data could make visible and highlight how the Ni3+/Ni4+ redox transition activates charge transfer and therefore oxygen evolution reaction

The authors want to acknowledge the Ministerio de Economía y Competitividad (MINECO) from Spain (ENE2017-85087-C3-1-R), University Jaume I (UJI-B2019-20) and Generalitat Valenciana (PROMETEO/2020/028) for financial support. Serveis Centrals d’Instrumentació Científica from UJI are acknowledged for SEM measurements.
