A CMOS-Compatible Fabrication Approach for High-performance Perovskite Photodetector Arrays
Erfu Wu a, Ivan Shorubalko a, Maksym Kovalenko b, Sergey Tsarev b, Daria Proniakova b, Xuqi Liu b, Dominik Bachmann a, Sergii Yakunin b
a Transport at Nanoscale Interfaces Laboratory, Empa – Swiss Federal Laboratories for Materials Science and Technology, CH-8600 Dübendorf, Switzerland
b ETH Zürich, Kovalenko Lab - Functional Inorganic Materials, Anorganische Funktionsmaterialien, Vladimir-Prelog-Weg 1-5/10, 8093 Zürich, (Switzerland)
Proceedings of Asia-Pacific Conference on Perovskite, Organic Photovoltaics&Optoelectronics (IPEROP25)
Kyoto, Japan, 2025 January 19th - 21st
Organizers: Atsushi Wakamiya and Hideo Ohkita
Poster, Erfu Wu, 050
Publication date: 4th October 2024

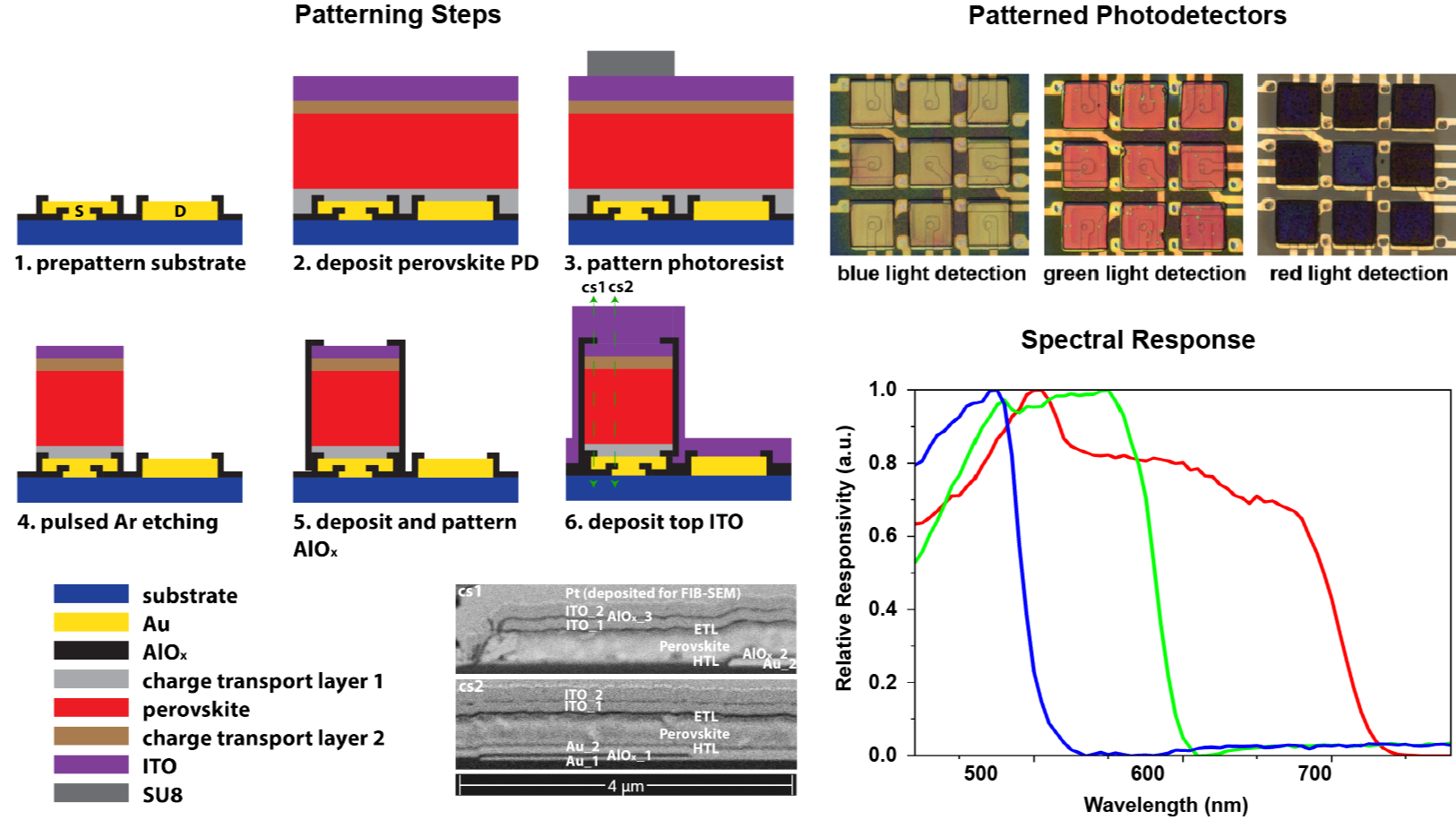

Lead halide perovskites (LHPs) have captivated the scientific community for their extraordinary optoelectronic properties [1], offering immense potential for breakthroughs in devices such as photodetectors (PDs) [2,3], lasers, light-emitting diodes (LEDs), and memristors [4,5]. However, a persistent challenge lies in integrating these materials into CMOS-compatible device architectures without compromising their performance or scalability. In this study, we introduce a robust and universal fabrication approach leveraging standard lithographic techniques to produce high-performance LHP PDs capable of separate red (R), green (G), and blue (B) color detection. By carefully optimizing the device architecture and employing a single-step lithography combined with pulsed argon (Ar) milling, we achieve pixelated PDs with remarkable performance metrics. These include a responsivity of 0.3 A /W, an ultra-low dark current density of less than 10-6 mA/cm-2, detectivity exceeding 1013 Jones, and sub-20 ns fall times without external bias. This method not only ensures high device efficiency but also provides a scalable and straightforward solution for the integration of perovskite-based optoelectronics into CMOS-compatible platforms. The versatility and effectiveness of this approach highlight its transformative potential in advancing next-generation image sensors and other perovskite-based technologies, bridging the gap between laboratory research and practical applications.
