Pressure-Induced Locking of Methylammonium Cations versus Amorphization in Hybrid Lead Iodide Perovskites
Adrián Francisco-López a, Bethan Charles b, Oliver J. Weber b, Isabel Alonso a, Miquel Garriga a, Mariano Campoy-Quiles a, Mark T. Weller b, Alejandro Goñi a c
a Institut de Ciència de Materials de Barcelona (ICMAB-CSIC, Campus UAB, Bellaterra, Spain
b Dept. of Chemistry & Centre for Sustainable Chemical Technologies, University of Bath, UK, Claverton Down, Bath BA2 7AY, Reino Unido, United Kingdom
c ICREA, Passeig Lluís Companys 23, 08010 Barcelona, Spain

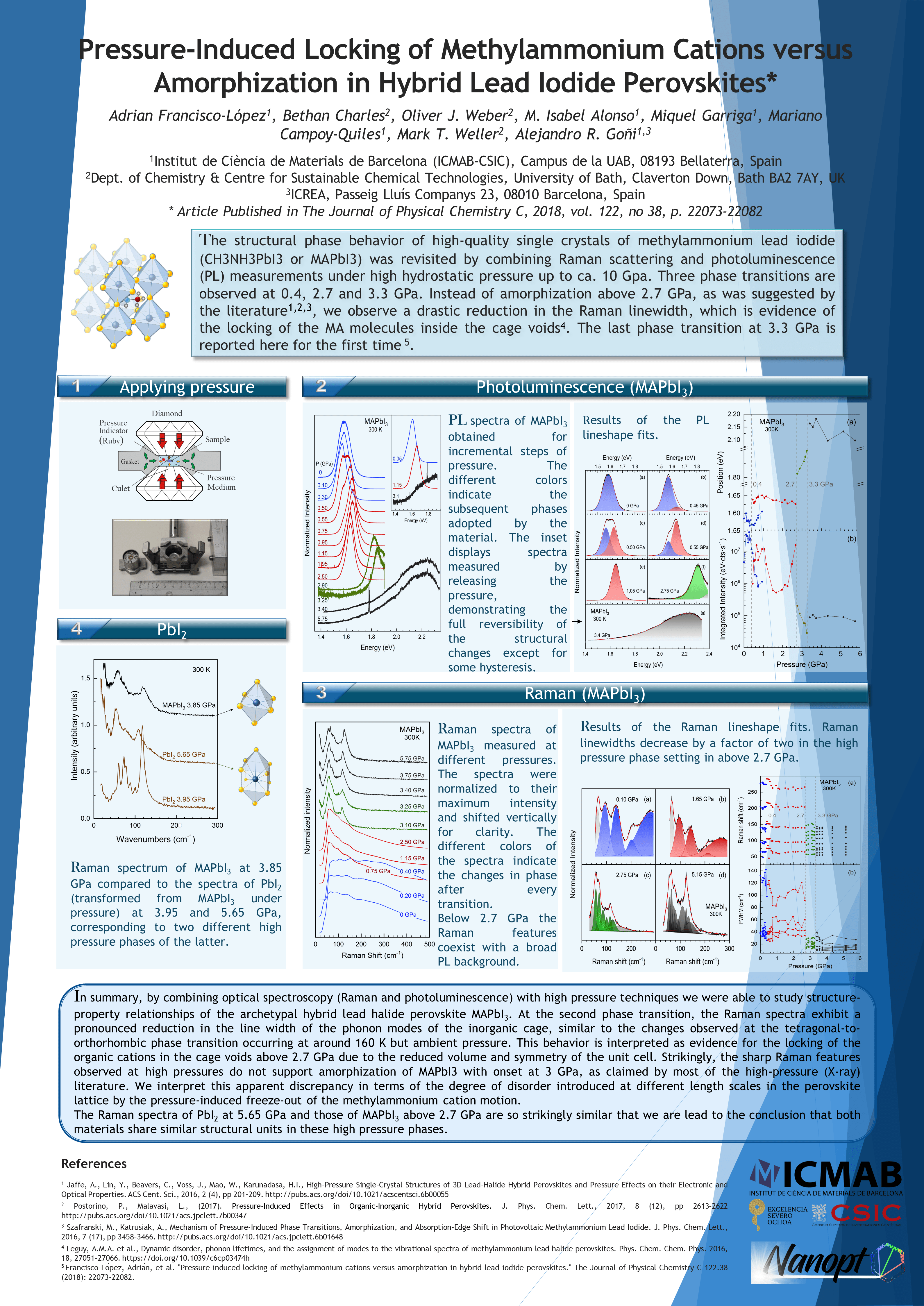

Poster, Adrián Francisco-López, 040
Publication date: 23rd April 2020

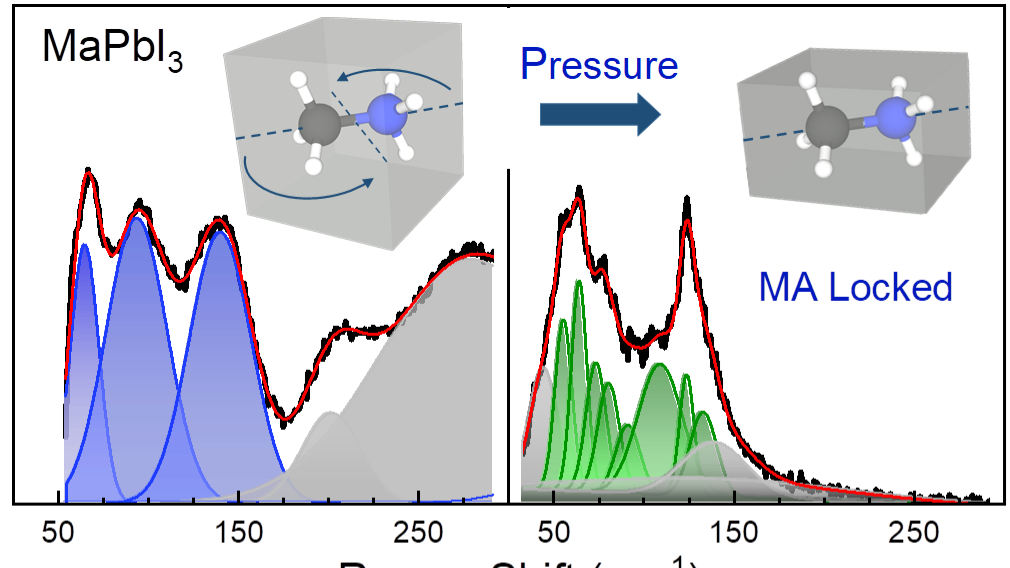

The structural phase behavior of high-quality single crystals of methylammonium lead iodide (CH3NH3PbI3 or MAPbI3) was revisited by combining Raman scattering and photoluminescence (PL) measurements under high hydrostatic pressure up to ca. 10 GPa. The single crystals were specially grown with the final thickness needed for pressure experiments, retaining their high quality due to a less invasive preparation procedure, which avoids sample thinning. Both PL and Raman spectra show simultaneous changes in their profiles that indicate the occurrence of three phase transitions subsequently at around 0.4, 2.7, and 3.3 GPa. At the second phase transition, the Raman spectra exhibit a pronounced reduction in the line width of the phonon modes of the inorganic cage, similar to the changes observed at the tetragonal-to-orthorhombic phase transition occurring at around 160 K but ambient pressure. This behavior is interpreted as evidence for the locking of the organic cations in the cage voids above 2.7 GPa due to the reduced volume and symmetry of the unit cell. At the third phase transition, reported here for the first time, the PL is greatly affected, whereas the Raman spectrum experiences only subtle changes related to a splitting of some of the peaks. This behavior may indicate a change mostly in the electronic structure with little effect on the crystal structure. Strikingly, the sharp Raman features observed at high pressures do not support amorphization of MAPbI3 with onset at 3 GPa, as claimed by most of the high-pressure (X-ray) literature. We interpret this apparent discrepancy in terms of the degree of disorder introduced at different length scales in the perovskite lattice by the pressure-induced freeze-out of the methylammonium cation motion.

The Spanish Ministerio de Economiá , Industria y Competitividad, is gratefully acknowledged for its support through Grant No. SEV-2015-0496 in the framework of the Spanish Severo Ochoa Centre of Excellence program and through Grants MAT2015-70850-P (HIBRI2) and CSD2010-00044 (Consolider NANOTHERM). A.F.-L. acknowledges a FPI fellowship from the Spanish Ministerio co-financed by the European Social Fund and the Ph.D. programme in Materials Science from Universitat Autònoma de Barcelona in which he is enrolled. B.C. and O.J.W. thank the EPSRC for Ph.D. studentship funding via the CSCT CDT (EP/ G03768X/1, EP/L016354/1). Financial support is also acknowledged from the European Research Council through project ERC CoG648901.

© Fundació Scito
We use our own and third party cookies for analysing and measuring usage of our website to improve our services. If you continue browsing, we consider accepting its use. You can check our Cookies Policy in which you will also find how to configure your web browser for the use of cookies. More info
