From Lab Scale to Electrolyzer: Continuous CO2 electroreduction for the Production of Formic Acid and Formate
Guillermo Díaz-Sainz a, José Antonio Abarca a, Manuel Alvarez-Guerra a, Angel Irabien a
a Departamento de Ingenierías Química y Biomolecular, Universidad de Cantabria, Avenida de los Castros s/n, Santander, 39005, Santander.
Proceedings of MATSUS Fall 2025 Conference (MATSUSFall25)
E2 Experimental and Theoretical Advances in (Photo)Electrochemical Conversion of CO2 and N2 - #ηPEC
València, Spain, 2025 October 20th - 24th
Organizers: Angelica Chiodoni, Francesca Risplendi and Juqin Zeng
Invited Speaker, Guillermo Díaz-Sainz, presentation 022
Publication date: 21st July 2025

Carbon capture, utilization, and storage (CCUS) strategies are increasingly recognized as effective means to achieve carbon neutrality, while simultaneously enabling the conversion of CO₂ into value-added products. Among these approaches, electrochemical CO₂ reduction (CO₂RR) stands out due to its operation under mild temperature and pressure conditions and its potential to store intermittent renewable energy—such as solar or wind—in the form of chemical products like formic acid and formate [1].

The Development of Chemical Processes and Pollution Control (DePRO) research group at the University of Cantabria (Spain) has been actively involved in advancing continuous CO₂ electroreduction to formate. Over the past years, the group has systematically investigated a wide range of cathodic and anodic electrocatalysts, as well as various electrode configurations, to optimize the performance and stability of the system [2–5].

This communication presents recent advances and persistent challenges in the development of efficient continuous-flow CO₂ electroreduction systems, with a particular focus on the influence of the cathodic electrocatalytic area, an aspect that has been scarcely explored to date. All experiments were conducted under a standardized setup and operating conditions, while varying key parameters such as cathodic electrocatalysts—including Sn- [2], Bi- [3], and Sb-based materials [4]—and electrode architectures, such as planar electrodes, particulate electrodes (PE), gas diffusion electrodes (GDEs), catalyst-coated membrane electrodes (CCMEs), and membrane electrode assemblies (MEAs), operating in the gaseous-phase [6], using a geometric area of 10 cm2. On the anodic side, different materials have been explored, including DSA/O₂ and Ni-based electrodes [5], with electrolysis typically coupled to the oxygen evolution reaction (OER). Both cation exchange membranes (CEM, e.g., Nafion) and anion exchange membranes (AEM, e.g., Sustainion) were tested, allowing for comparative performance analysis and identification of optimal cell configurations.

The promising results obtained by the research group have enabled the scale-up of the CO₂ electroreduction technology from a lab-scale reactor (10 cm²) to semi-industrial pilot plant configurations (100 and 1000 cm²) within the framework of various projects aimed at constructing and testing a CO₂ electrolyzer under real industrial conditions, including textile and cement plants.

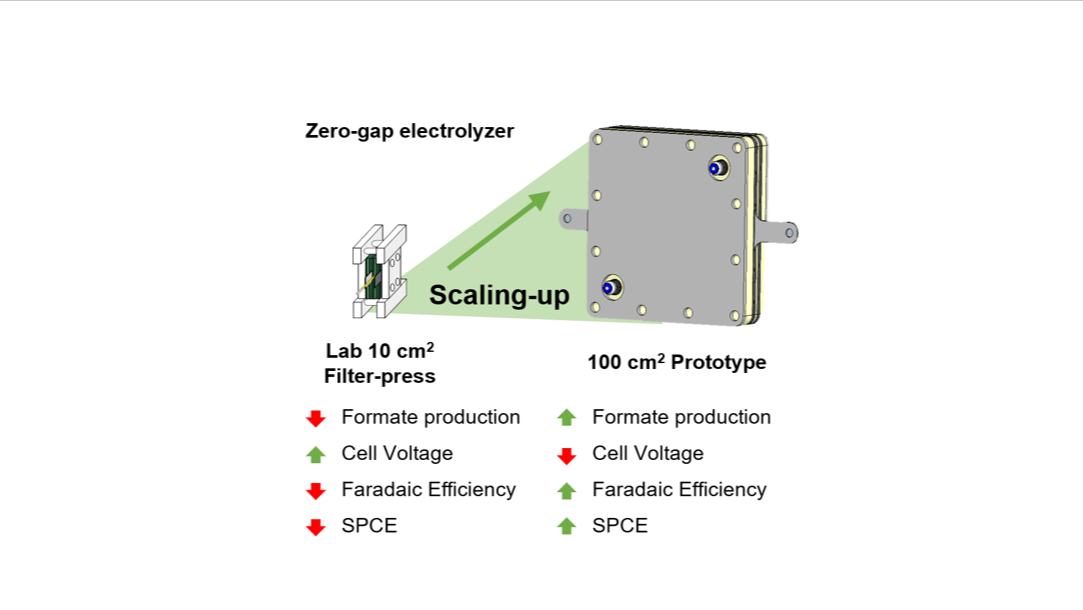

During the initial scale-up to a geometric area of 100 cm2, optimal performance was achieved at a current density of 200 mA·cm⁻² and a water feed rate of 15 g·h⁻¹, resulting in a formate concentration of 760 g·L⁻¹, a Faradaic efficiency of 67%, a production rate of 7 mmol·m⁻²·s⁻¹, and an energy consumption of 507 kWh·kmol⁻¹. When compared with the 10 cm² lab-scale reactor, the scaled-up system demonstrated enhanced CO₂ conversion and higher product formation rates, thereby validating the advantages of optimized flow field design and the overall scale-up strategy. Although a moderate decrease in energy efficiency was observed—mainly due to increased ohmic losses—these findings support the technical viability of gas-phase CO₂ electrolysis for formate production at larger scales.

Further improvements in cell design, materials selection, and energy management are necessary to move closer to industrial implementation. Nonetheless, these developments represent a significant step forward in the advancement and potential application of CO₂ electroreduction technologies.

The authors fully acknowledge the financial support received from the Spanish State Research Agency (AEI) through the projects PID2022- 138491OB-C31 (MICIU/AEI /10.13039/ 501100011033 and FEDER, UE), TED2021- 129810B-C21, and PLEC2022-009398 (MCIN/AEI/10.13039/501100011033 and Union Europea Next Generation EU/PRTR). The present work is related to CAPTUS Project. This project has received funding from the European Union’s Horizon Europe research and innovation programme under grant agreement No 101118265. Jose Antonio Abarca gratefully acknowledges the predoctoral research grant (FPI) PRE2021-097200.
