Semi-transparent micro-structured Cu(In,Ga)Se2 thin film solar cells for window applications
Pedro Santos a, Shilpi Shital b, Nuno Rodrigues a, André da Silva a, Alice Debot b, Pedro Anacleto a, Philip J. Dale b, Sascha Sadewasser a
a International Iberian Nanotechnology Laboratory (INL), Avenida Mestre José Veiga, Braga, Portugal
b Department of Physics and Materials Science, University of Luxembourg, 1511 Luxembourg, Luxembourg
Proceedings of MATSUS Fall 2025 Conference (MATSUSFall25)
A6 Advanced materials and device architectures for Transparent PV - #TransparentPV
València, Spain, 2025 October 20th - 24th
Organizers: Aldo Di Carlo and Alejandro Perez-Rodriguez
Invited Speaker, Sascha Sadewasser, presentation 124
Publication date: 21st July 2025

Semi-transparent solar cells have attracted massive industry interest as they offer tri-functionality by forming the skin of the building, enabling natural light illumination, and generating power. Cu(In,Ga)Se2 (CIGSe) photovoltaics are a promising technology option for such applications. There are two different approaches to achieve transparent CIGSe solar cells. One involves the fabrication of ultra-thin CIGSe absorbers on see-through transparent back contacts. This method, however, is limited by the formation of GaOx parasitic layers at the back contact interface, which leads to efficiency losses. An alternative approach involves spatially segmented full-thickness solar cells with transparent parts separating them to give the semi-transparent characteristic.

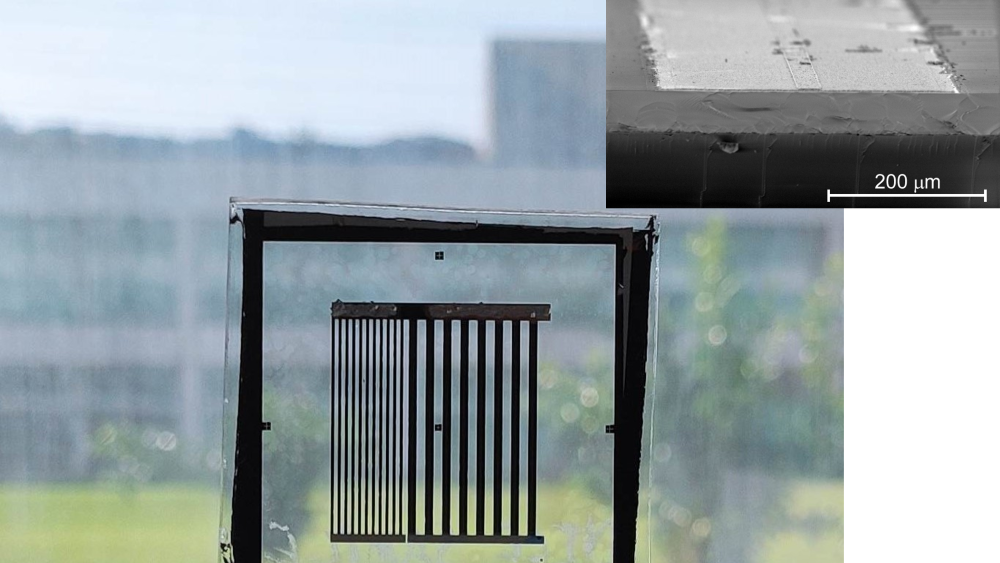

As proof of concept, we present a top-down micro-structuring approach, where an opaque CIGSe solar cell is spatially segmented into micro-sized line-shaped solar cells. By varying the lines’ width and spacing, it is possible to control the window’s average visual transparency (AVT), making it suitable for different applications. The fabrication process begins with a photolithography step, where the selected pattern of micro-lines is designed on top of a complete CIGSe solar cell stack. An aqueous bromine solution etches the developed solar cell areas, while the photoresist protects the solar cell lines [1]. The bromine solution results in a slight over-etch of the window layer by about 20-30 µm. This over-etch reduces the active device area, leading to a performance loss, which is particularly pronounced in narrower lines (narrower than 200 µm). After the bromine etching, the sample was dipped in sodium hypochlorite (commercial bleach) to remove the exposed molybdenum, thereby making the areas in between the solar cell lines fully transparent. To ensure proper charge carrier collection, we performed simulations to design a metallic front contact grid that minimizes shadowing. Narrow, tapered aluminum electrical contacts were evaporated on top of the full length of the line solar cells, with a width between 30 mm and 1 mm. The top-down, materials inefficient process resulted in a semi-transparent CIGSe solar cell with a total area efficiency of 6.1 % and an AVT of 49 %.

Developing a more sustainable and materials-efficient fabrication approach, we use sputter-deposition and lift-off processes to achieve selective deposition of the CIGSe micro-striped solar cells. Here, Cu-In-Ga is deposited onto a patterned photoresist, followed by a lift-off process. The Cu-In-Ga lines are subsequently transformed into CIGSe lines by a selenization process. Solar cell devices are then completed by depositing a buffer layer in a chemical bath and by sputtering a i-ZnO/ZnO:Al window layer. With this approach, we have achieved a power conversion efficiency of approximately 6% for individual lines.

We acknowledge support by the project “Semi-Transparent Solar cells for building integrated photovoltaics (STAR-SOL)”, funded by FCT - Fundação para a Ciência e Tecnologia (FCT‐FNR/0001/2018) and by Fond National de la Recherche (C18/MS/12686759), and by the project “TRANSMIT - “Semi-transparent micro-striped thin-film photovoltaics for energy-harvesting windows”, Clean Energy Transition Partnership - CETP-2022-00327. We also acknowledge the project Hi-BITS, funded by the European Union. Views and opinions expressed are, however, those of the authors only and do not necessarily reflect those of the European Union or CINEA. Neither the European Union nor the granting authority can be held responsible for them.
