Publication date: 17th July 2025

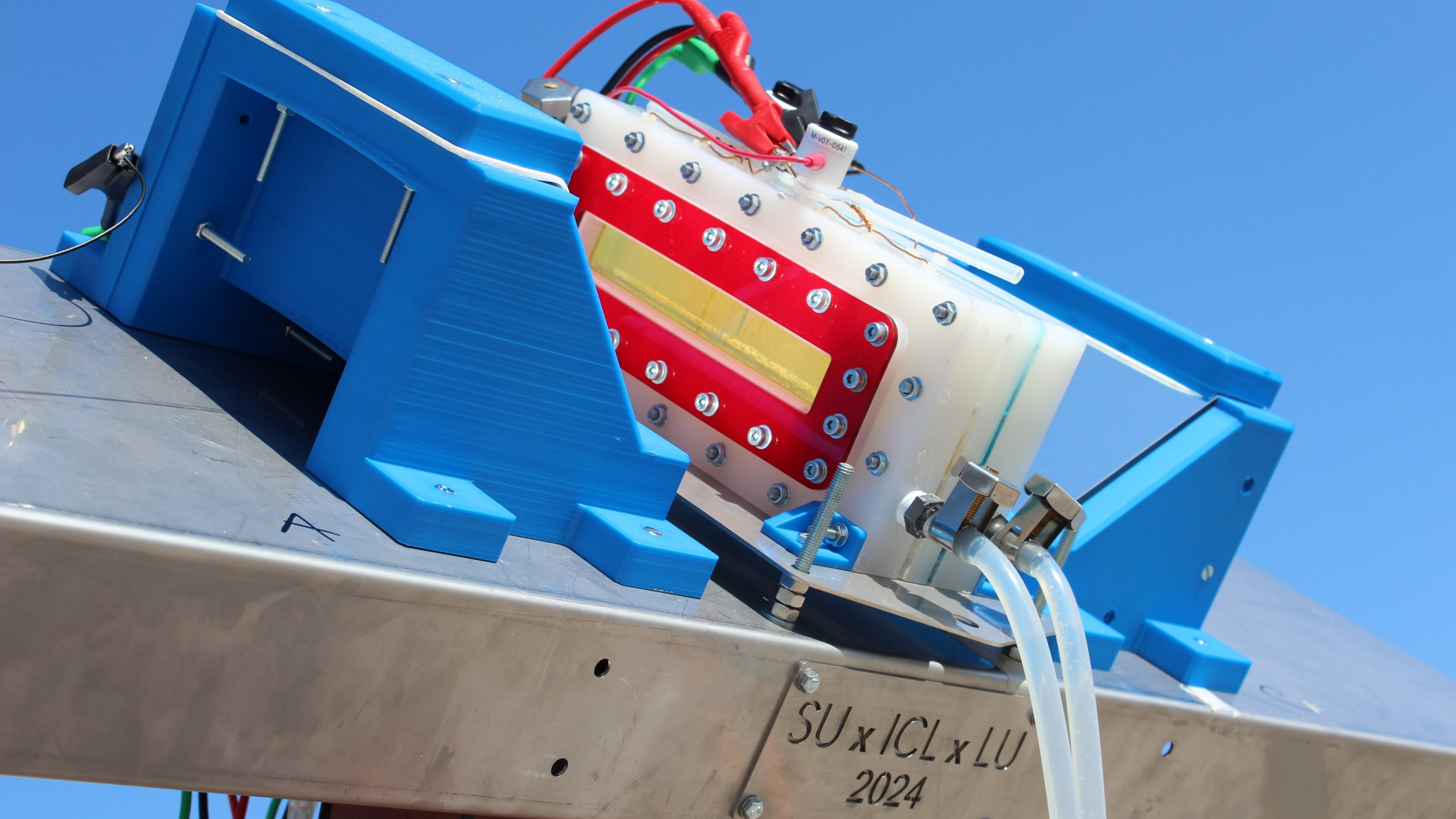

We have designed, built and characterized a prototype photoelectrochemical demonstration system capable of splitting water into hydrogen and oxygen using only photon energies. The reactor was operated during Mar-May 2024 at Stellenbosch University (33.93° S, 18.86° E), while mounted on a 2-axis tracking platform. Light was directed laterally both into the (photo)cathode and photoanode compartments, which were separated by an ion-permeable membrane. Double-sided irradiation was achieved by two methods that were compared with each other: (i) using mirrors (Ag-coated mirror for the (photo)cathode side and Al-coated mirror for the photoanode side) and (ii) linear Fresnel lenses coupled with stepped Al waveguides. The latter irradiation method delivered light, concentrated by a factor of up to 4, though theoretical simulations show that through design improvement the concentration factor could ultimately reach ≈ 15.
The reactor was operated in two modes:
(a) Photoelectrochemical (PEC), utilising an FTO|WO3|BiVO4|NiFeOx photoanode and a FTO|Au|Sb2Se3|CdS|TiO2|Pt photocathode[1,2];
(b) PV-assisted photoelectrochemical (PV-PEC), utilizing the same FTO|WO3|BiVO4|NiFeOx photoanode, Ni cathode and an externally mounted c-Si PV.
In mode (a), a pH gradient was employed to assist water splitting, with a pH ≈ 0.8 aqueous catholyte comprising 0.1 M H2SO4 and anolyte comprising 1 M H3BO3 + 1 M NaOH at pH ≈ 9.3. In mode II, both electrolytes were 1 M H3BO3 + 1 M NaOH. A cation-permeable membrane, NafionTM 115, was utilized in all experiments. The reactor was operated in batch recycle mode. The areas of the (photo)electrodes and the PV were all 30 cm2.
We observed that our bismuth vanadate (BVO) photoanodes usually degraded within hours, for which we propose two reasons. Firstly, when coupled with c-Si PV, the potential of the photoanodes was observed to increase into the dark current regions under low irradiance. While the c-Si PV is able to generate a significant photocurrent even on cloudy days, the bismuth vanadate photoanode is unable to match this through its own electron-hole generation. When anode potentials exceeded ≈1.1 V (RHE), the photoanode is thought to have degraded through oxidation of the bismuth; the degradation was irreversible. Secondly, the photoanodes degraded equally quickly under concentrated irradiance; we are currently investigating whether this was caused by overheating, high flux of bubbles or both. It is currently unclear whether the issue is with the adhesion of the WO3 layer to FTO or due to the bismuth film itself, but this is under active investigation and we have partially aleviated the adhesion issue by introducing a planar WO3 seed layer between the FTO and the WO3 nanoneedles.
I shall discuss the experimental results from reactor testing, the performance under various modes of irradiation, and the effects of electrode materials, geometries and relative configurations within the reactor on its design, overall performance and further scale-up, as well as the future role of photoelectrochemical systems in energy storage.
G. C. thanks the Department of Chemical Engineering at Imperial College London for an EPSRC DTP PhD scholarship (EP/W524323/1). A. K. thanks the Grantham Institute for Climate Change and the Environment for a pump-priming grant and the EPSRC for a Programme Grant (EP/W017075/1). A. H. thanks the Department of Chemical Engineering for the lectureship start-up grant and EPSRC (EP/W033216/1) for funding the PDRA position of J. R. A.
