Publication date: 21st July 2025
MXenes are gaining increasing attention as heterogeneous catalysts[1, 2]. For these applications, surface defects – typically present at very low densities, often at sub-nanometric populations per gram – are believed to play a key role. However, due to this extremely low density, very few experimental techniques are sensitive enough to detect and monitor these types of sites.
In this presentation, I will show that pyrene photoemission, using borylated and amino-functionalized pyrene derivatives[3], can report on subtle surface differences in Ti₃C₂ MXenes prepared by different synthetic methods.
Specifically, Ti₃C₂ obtained by etching Ti₃AlC₂ with NH₄F, which introduces –F, –OH, and –O surface terminations, interacts strongly with boronic acid–functionalized pyrene. The binding of this molecule indicates the presence of surface –OH groups with a spatial arrangement similar to vicinal diols in organic molecules.

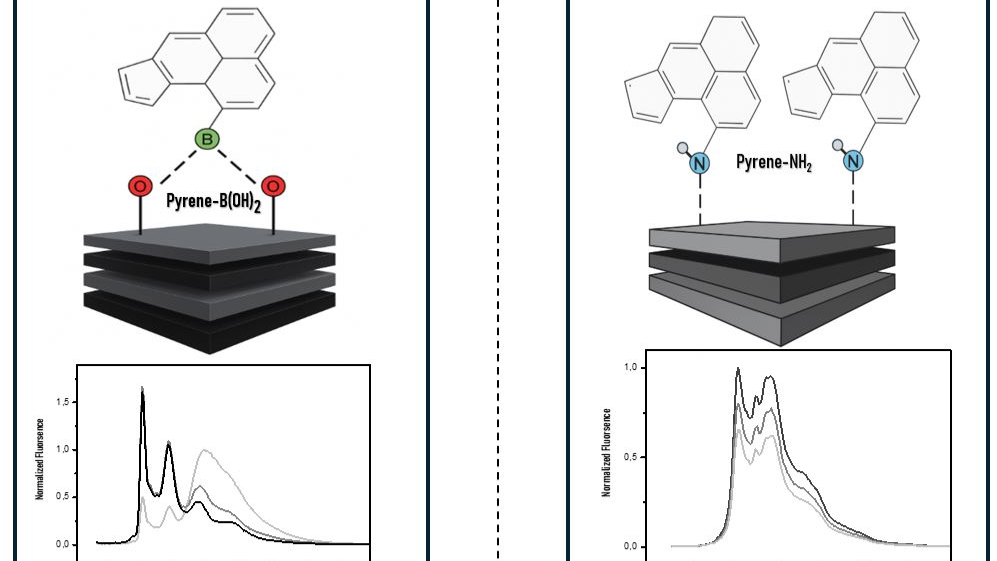

In contrast, 1-aminopyrene reveals unique properties when tested on Ti₃C₂Br₂ prepared by molten salt etching of Ti₃AlC₂ in a eutectic LiBr/KBr mixture. In this case, the characteristic excimer emission of 1-aminopyrene disappears upon binding to the surface, and only monomer fluorescence is observed. This indicates that NH₂ groups strongly attach to specific sites on the Br-terminated MXene, which are sufficiently isolated to prevent π–π interactions between neighboring pyrene molecules (Fig. 1).
These results demonstrate the potential of photophysical probes to detect and monitor defect sites on MXene surfaces, even at sub-nanometric concentrations.
