Deterministic Integration of CsPbBr₃ Quantum Dots with Plasmonic Ring Cavities for On-Chip Quantum Photonics
Pengji Li a, Chenxi Ma a, Jingzhong Yang a, Tom Rakow a, Xian Zheng a, Eddy Rugeramigabo a b, Chenglian Zhu c d, Ihor Cherniukh c d, Gabriele Rainò c d, Maksym Kovalenko c d, Michael Zopf a b, Fei Ding a b
a Institute of Solid State Physics, Leibniz University Hannover, Appelstraße 2, D-30167 Hannover, Germany
b Laboratory of Nano and Quantum Engineering, Leibniz University Hannover, Schneiderberg 39, D-30167 Hannover, Germany
c Institute of Inorganic Chemistry, Department of Chemistry and Applied Biosciences, ETH Zürich, CH-8093 Zürich, Switzerland
d Laboratory for Thin Films and Photovoltaics, Empa – Swiss Federal Laboratories for Materials Science and Technology, CH-8600 Dübendorf, Switzerland
Materials for Sustainable Development Conference (MATSUS)
Proceedings of MATSUS Spring 2025 Conference (MATSUSSpring25)
Halide perovskites for quantum technologies - #PeroQuant25
Sevilla, Spain, 2025 March 3rd - 7th
Organizers: Grigorios Itskos, Claudine Katan and Gabriele Raino
Poster, Pengji Li, 628
Publication date: 16th December 2024

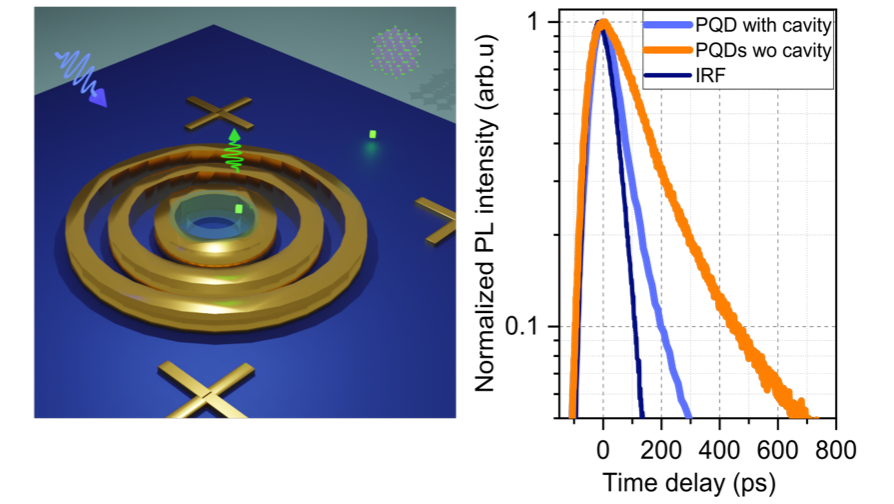

Perovskite quantum dots (PQDs), particularly those made of CsPbBr₃, hold great promise for quantum information processing as wavelength-tunable single photon sources with room-temperature operation. However, their deterministic on-chip integration with nanophotonic structures remains a major challenge, limited by their random spatial distribution and non-directional emission. In this study, we propose a deterministic integration method using a two-step electron beam lithography process to precisely position individual CsPbBr₃ PQDs within the mode volume of plasmonic ring cavities. Simulations indicate a strong field enhancement within the cavity, to boost photon emission rates via the Purcell effect and improve the quantum efficiency of the CsPbBr₃ PQDs. Experimentally, CsPbBr₃ PQD ensembles coupled to the plasmonic cavities exhibit a fourfold enhancement in photoluminescence (PL) intensity and a threefold reduction in PL lifetime. We demonstrate that a coupled system achieves stable single CsPbBr₃ PQD emission at cryogenic temperatures with a two-fold reduction in PL lifetime. This work provides a scalable and deterministic approach for the integration of PQDs into nanophotonic circuits and opens up opportunities for their application in on-chip quantum technologies.
