Proceedings of MATSUS Spring 2025 Conference (MATSUSSpring25)
Publication date: 16th December 2024

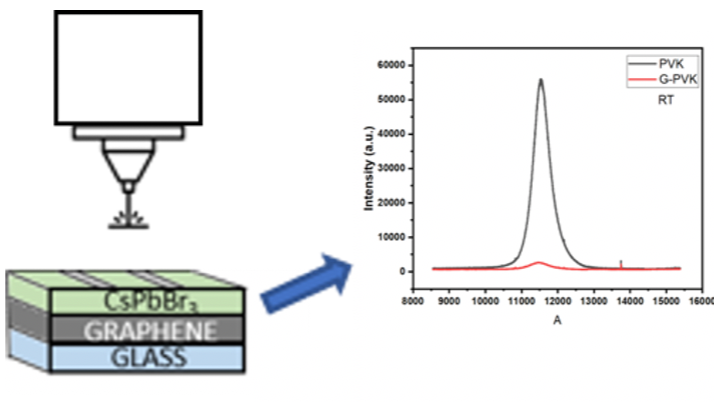

Fully inkjet-printed cesium lead bromide (CsPbBr₃) perovskite nanocrystals integrated with two-dimensional materials like graphene show great promise for optoelectronic applications [1]. Leveraging inkjet printing technology, which offers precise patterning control and minimal material waste [2], we fabricated bilayer heterostructures by sequential deposition of graphene and perovskite layers on glass substrates. These structures are particularly relevant for photodetector applications, where efficient charge separation and extraction are essential for high sensitivity and rapid response times [3]. To understand the fundamental interfacial dynamics, we investigated photoluminescence (PL) quenching at the perovskite-graphene interface. Our measurements reveal an 95% reduction in PL intensity for CsPbBr₃ on graphene compared to pristine CsPbBr₃ films, with observed shifts in the characteristic Raman G-band indicating strong electronic coupling between the layers. The observed PL quenching stems from efficient charge transfer, facilitated by graphene's high carrier mobility. These findings provide crucial insights into the charge transfer dynamics at perovskite-graphene interfaces and demonstrate a scalable fabrication route for next-generation optoelectronic devices.
The authors express their gratitude for the financial support received from the Ministry of Science and Innovation for the national projects LIP-FREE (PID2022-140978OB-I00) and PIXIE-SENS(PDC2023-145804-I00). J.Marí-Guaita acknowledges the financial backing from grant JDC2022-049260-I funded by the Spanish Ministry of Science and Innovation and by the European Union NextGenerationEU/PRTR.
