Cellulose-based Eco-Friendly Temperature Sensor
Nitheesh M. Nair a, Niklas Stegmann a, Maxim Polomoshnov a, Markus Reischl a, Gerardo Hernandez-Sosa a b c d
a Institute for Automation and Applied Informatics, Karlsruhe Institute of Technology, Hermann-von-Helmholtz-Platz 1, 76344 Eggenstein-Leopoldshafen, Germany
b Light Technology Institute, Karlsruhe Institute of Technology, Engesserstr. 13, 76131 Karlsruhe, Germany
c InnovationLab, Speyerer Str. 4, 69115 Heidelberg, Germany
d Institute of Microstructure Technology, Karlsruhe Institute of Technology, Hermann-von-Helmholtz-Platz 1, 76344 Eggenstein-Leopoldshafen, Germany
Proceedings of MATSUS Spring 2026 Conference (MATSUSSpring26)
I2 Organic materials and devices for sustainable and transient electronics
Barcelona, Spain, 2026 March 23rd - 27th
Organizers: Noemí Contreras-Pereda and Micaela Matta
Oral, Nitheesh M. Nair, presentation 513
Publication date: 15th December 2025

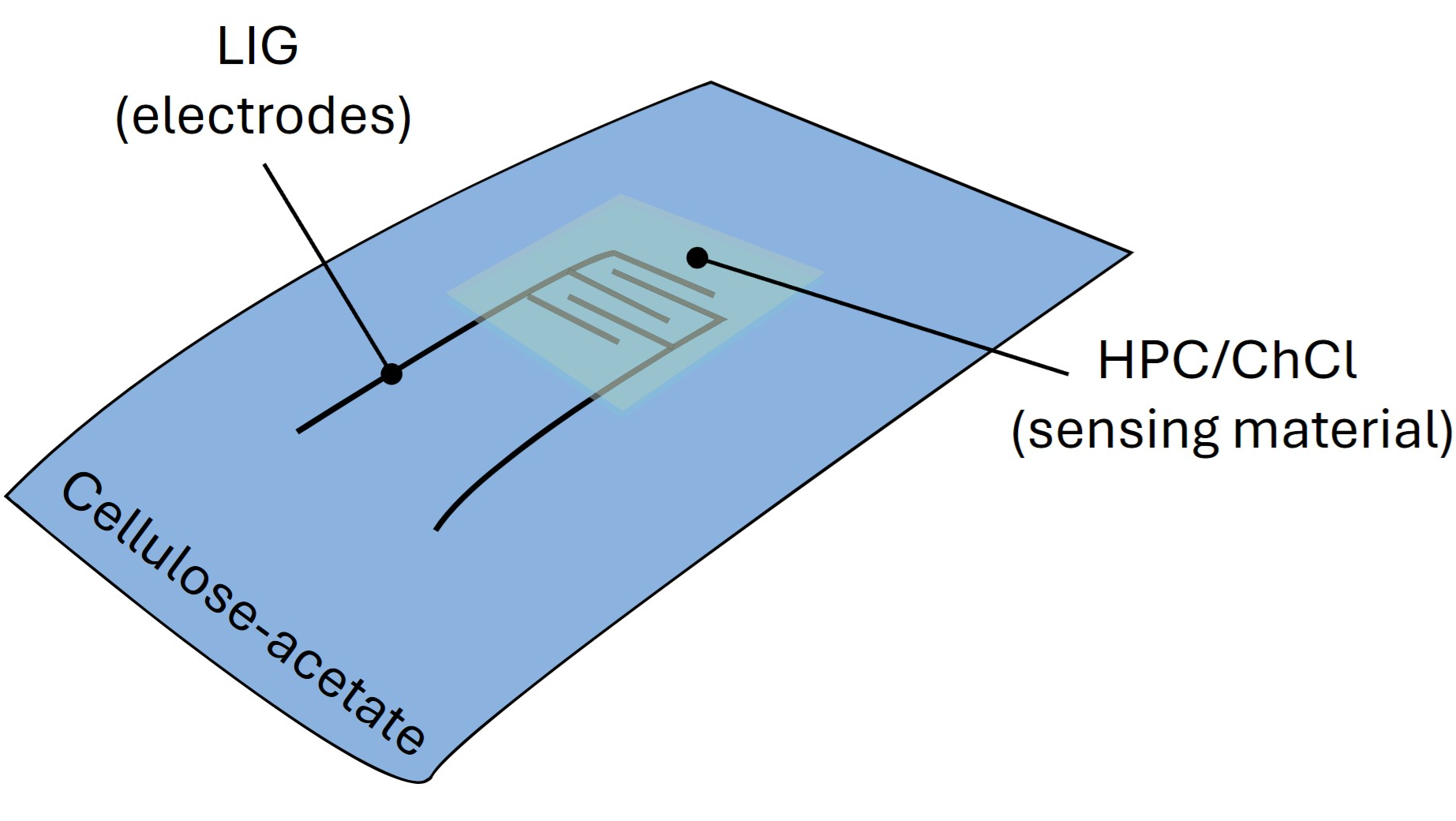

Precise temperature monitoring is essential for a wide range of applications including agriculture, healthcare, manufacturing, and soft robotic systems. Temperature sensors also play a key role in the calibration of other sensing devices that are temperature sensitive. As the demand for such sensors increases, concerns about their end-of-life disposal, the resulting electronic waste, and the associated environmental impact are becoming more prominent. To address this, we present a fully eco-friendly, cellulose-based resistive temperature sensor. The sensor consists of conductive graphene-based interdigitated electrodes fabricated using a laser-induced graphene (LIG) technique on cellulose acetate. LIG enables synthesis, solvent-free deposition, and low-energy patterning in a single step, offering a sustainable route for device fabrication. Further, we have utilized machine-learning approaches to optimize the lasing parameters and achieve the optimal electrical performance faster with minimal experimental trials. The sensing layer consists of a hydroxypropyl cellulose/choline chloride (ChCl) composite, whose conductivity varies with temperature, enabling reliable and sensitive detection. The use of bio-derived materials ensures material circularity, reduced environmental burden, and compatibility with end-of-life degradation pathways. Additionally, a flexible temperature-sensor array will be demonstrated to map spatial temperature distributions, highlighting the potential of the device for scalable and transient green electronics.
