Performance evaluation of back-contact perovskite solar cells
Erik O. Shalenov a, Askhat N. Jumabekov b, Yeldos S. Seitkozhanov a c, Kuanysh O. Tlekova a d, Madina M. Seisembayeva a c, Ayazhan K. Dossymbekova a, Zhansaya B. Omarova e
a Department of General Physics, Satbayev University, Almaty, 050013, Kazakhstan
b Department of Physics, School of Sciences and Humanities, Nazarbayev University, Astana 010000, Kazakhstan
c Institute of Experimental and Theoretical Physics, al-Farabi Kazakh National University, Almaty, 050040, Kazakhstan
d Department of Materials Science, Nanotechnology and Engineering Physics, Satbayev University, Almaty 050013, Kazakhstan
e Department of Standardization, Certification and Metrology, Satbayev University, Almaty, 050013, Kazakhstan
Proceedings of MATSUS Spring 2026 Conference (MATSUSSpring26)
A5 From halide perovskites to perovskite-inspired materials – Synthesis, Modelling and Application
Barcelona, Spain, 2026 March 23rd - 27th
Organizers: Gustavo de Miguel, Lorenzo Malavasi and Isabella Poli
Poster, Erik O. Shalenov, 742
Publication date: 15th December 2025

Perovskite solar cells (PSCs) are typically fabricated using multilayer architectures such as n-i-p or p-i-n, where the perovskite layer is sandwiched between electron and hole transport layers. While these structures have enabled high efficiencies, they require precise thin-film deposition conditions and restrict material compatibility, limiting device design flexibility. Their performance is also sensitive to defects in the perovskite layer, which can create shunting pathways, and practical efficiencies are reduced by photon losses from parasitic absorption and reflection.

To address these limitations, researchers have explored back-contact architectures, including quasi-interdigitated (QIBC) [1-6], flat-interdigitated (FIBC) [7-8], and fully interdigitated (IBC) [9-10] designs. In back-contact PSCs (BC-PSCs), all electrodes and transport layers are patterned before depositing the perovskite, reducing damage during fabrication and eliminating front-side optical losses. These designs also allow integration of optical management layers. Recent advances, such as transparent quasi-integrated electrodes and scalable printing methods, further support BC-PSCs for emerging applications.

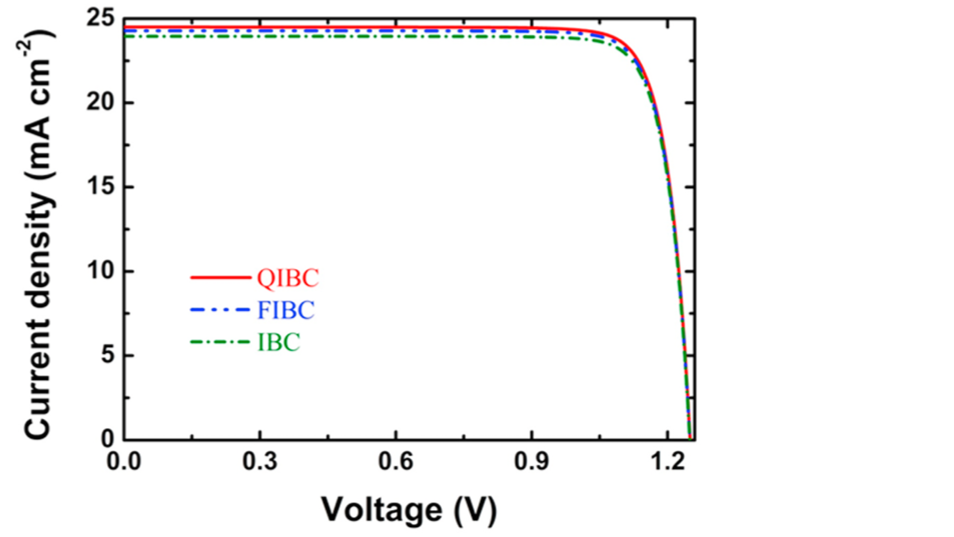

In this work, numerical simulation is employed to investigate the performance of BC-PSCs incorporating quasi-interdigitated, flat-interdigitated, and fully interdigitated electrode designs [5,6]. The simulations reveal the fundamental differences among these electrode geometries and provide a detailed analysis of their impact on photovoltaic behavior. The influence of key electronic properties of the perovskite photoactive layer on device performance is also examined. The results show that BC-PSCs with quasi-interdigitated electrodes have the potential to achieve power conversion efficiencies (PCEs) exceeding 25%. However, devices employing flat-interdigitated and fully interdigitated electrodes demonstrate greater tolerance to electronic imperfections in the perovskite film, enabling them to achieve higher PCEs under realistic material conditions. Finally, the fabrication prospects and practical considerations associated with implementing these electrode designs in next-generation BC-PSCs are discussed from an experimental standpoint.
