Modulating Phase-Selective Doping in a DPP-based N-Type Polymer via Solvent Affinity Strategy
Soyeong Jang a, Osnat Zapata Arteaga a, Diego Rosas Villalva a, Guorong Ma b, Andrew Bates b, Anirudh Sharma a, Abdul Hamid Emwas a, Yongcao Zhang a, Jianhua Han a, Xiaodan Gu b, Derya Baran a
a King Abdullah University of Science and Technology, Thuwal, Saudi Arabia.
b Univerity of Southern Mississippi, College Drive, 118, Hattiesburg, United States
Proceedings of MATSUS Spring 2026 Conference (MATSUSSpring26)
B3 Chemical and Electrochemical Doping of Organic Semiconductors
Barcelona, Spain, 2026 March 23rd - 27th
Organizers: Mariano Campoy Quiles and Christian Müller
Poster, Soyeong Jang, 835
Publication date: 15th December 2025

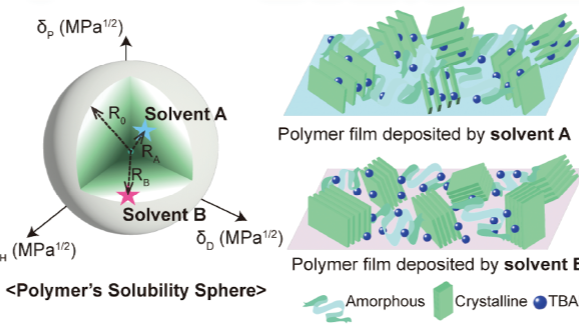

Phase-selective doping is an effective approach to enhance the thermoelectric performance of conjugated polymers (CPs), but how to translate this effect to other doping systems is unclear. Here, we employ a strategy based on a solvent affinity calculated by the Hansen Solubility Parameter (HSP) to control the phase-selective doping in the new n-type polymer 2PyDPP-2CNTVT with tetrabutylammonium fluoride (TBAF). Optical, electrical, and structural analysis reveal that a solvent with strong affinity for the polymer leads to an amorphous phase and distribute dopant both amorphous and crystalline domains, resulting in low electrical conductivity. In contrast, a solvent with partial affinity for both polymer and dopant lead to a bimodal phase, localizing dopant in the amorphous domain while preserving the crystalline domain. This partial affinity solvent can maintain a higher crystallinity at elevated doping concentration in a doped film, resulting in electrical conductivity nearly an order of magnitude higher than that produced with high-affinity solvents at similar doping concentrations. Grazing incidence wide-angle X-ray scattering (GIWAXS) confirms that dopant exclusion from crystalline domains preserves p-p stacking, favouring efficient charge transport. This work demonstrates a solvent-centric and phase-selective doping strategy to optimize solid-state ordering and fine-tune the electrical properties for various polymer and dopant systems.
