Heterogeneous photocatalysts provide an ideal platform for sustainable chemical synthesis as they are often inexpensive
to synthesize at scale and allow facile catalyst recovery and reuse.1-3 Particulate photocatalysts are most commonly
used as dispersions in the bulk of a liquid phase, but this poses intrinsic limitations to efficient catalyst use and scale-up
as well as photon harvesting and utilization (Beer-Lambert law), as particles away from the outermost layers of the
reaction vessel may not be exposed to light.4
Immobilization strategies of photocatalysts on solid supports are therefore being explored, with the aim of replacing
dispersed powders with monolithic materials or thin films. Floatable photocatalysts5,6 are assembled by immobilizing
semiconductors on floatable (low-density) support matrices. These materials have recently been demonstrated in
emerging technologies for water purification,7,8 energy harvesting9,10 solar fuel synthesis,11 and plastic photoreforming.6
Unlike monolithic packed-bed reactors and photosheets, floatable photocatalysts offer a potential platform to
compartmentalize products and charges in photoredox catalysis. While they have been shown at the gas-liquid interface,
there are no reports on the segregation of liquid species. Efforts to achieve the compartmentalization of liquid phase
redox reactions have been mostly inspired by biological systems,12 using artificial synthetic and colloidal nanoreactors
based on liposomal structures.13-17

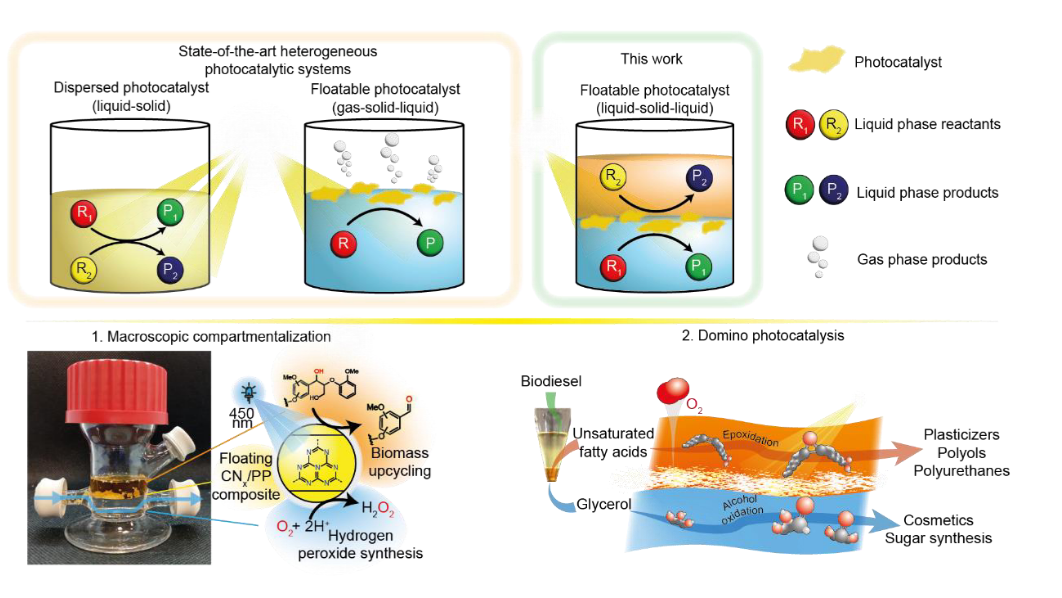

We introduce liquid|solid|liquid (L|S|L) photocatalysis.18 Here, macroscopic separation of stacked liquid aqueous phase,
photocatalytic solid layer, and liquid organic phase allows paired redox synthesis of hydrophilic and hydrophobic
chemical species with continuous operation of both liquid streams, which makes it an ideal framework for liquid-liquid
flow photocatalysis.
In our first demonstration of this innovative concept, we use a carbon nitride/polypropylene (CNx/PP)
composite immobilized between water and organic solvents to pair the synthesis of clean aqueous H2O2 and added-
value aldehydes from biomass-derived chemicals, including 1-butanol from fermentation processes, or lignocellulose as
a by-product of the pulp industry.
We demonstrate a facile and robust method to prepare metal-free, resource-benign floatable photocatalysts based on
solvent-free thermal processing with readily scalable carbon nitride and low-density plastics. The protocol provides a
general approach for the preparation of low-density photocatalysts from shredded plastic and any powdered material of
interest for catalytic or other purposes, with limited constraints on their thermal or chemical stability. Our fabrication
procedure also provides a route for plastic upcycling, in the interest of circular economy.
In applications for paired aqueous|organic photocatalysis, we report the synthesis of 2.7±0.5 mmol L–1 h–1 aqueous H2O2
and 1.5±0.4 mmol L–1 h–1 butanal from 1-butanol oxidation at room temperature under blue LED irradiation. We also
demonstrate kraft lignin upcycling in ethyl acetate using concentrated solar irradiation for combined solar light and heat
management in a continuous flow process, and we observe kraft lignin depolymerization with a drop in weight-average
molecular weight (Mw) from 2746 Da in pristine kraft lignin to 1400 Da with of 5.55±1.90 μmoles of H2O2 extracted after
16 h photocatalysis. We emphasize that the possibility of seamless flow operation highlights the versatility and potential
for sustainable chemical synthesis using liquid|solid|liquid photocatalysis.
Our integrated, compartmentalized L|S|L photocatalytic reactors target sustainable synthesis on multiple fronts, including
plastic upcycling, biomass and industrial byproduct valorization, abatement of separation costs, and it opens promising
unexplored avenues for continuous flow photocatalysis in immiscible liquid-liquid media.
