In situ reaction monitoring of sulfide solid electrolytes in liquid phase
Zachary Warren a b, N.C. Rosero-Navarro a
a Instituto de Cerámica y Vidrio ICV-CSIC, Madrid, España
b Universidad Autónoma de Madrid, Francisco Tomás y Valiente 7, Madrid, Spain
Proceedings of MATSUS Spring 2026 Conference (MATSUSSpring26)
G5 In Situ and Operando Characterization Across Disciplines: Advanced Lab-Based Techniques for Energy Conversion Research
Barcelona, Spain, 2026 March 23rd - 27th
Organizers: Johanna Eichhorn and Verena Streibel
Poster, Zachary Warren, 878
Publication date: 15th December 2025

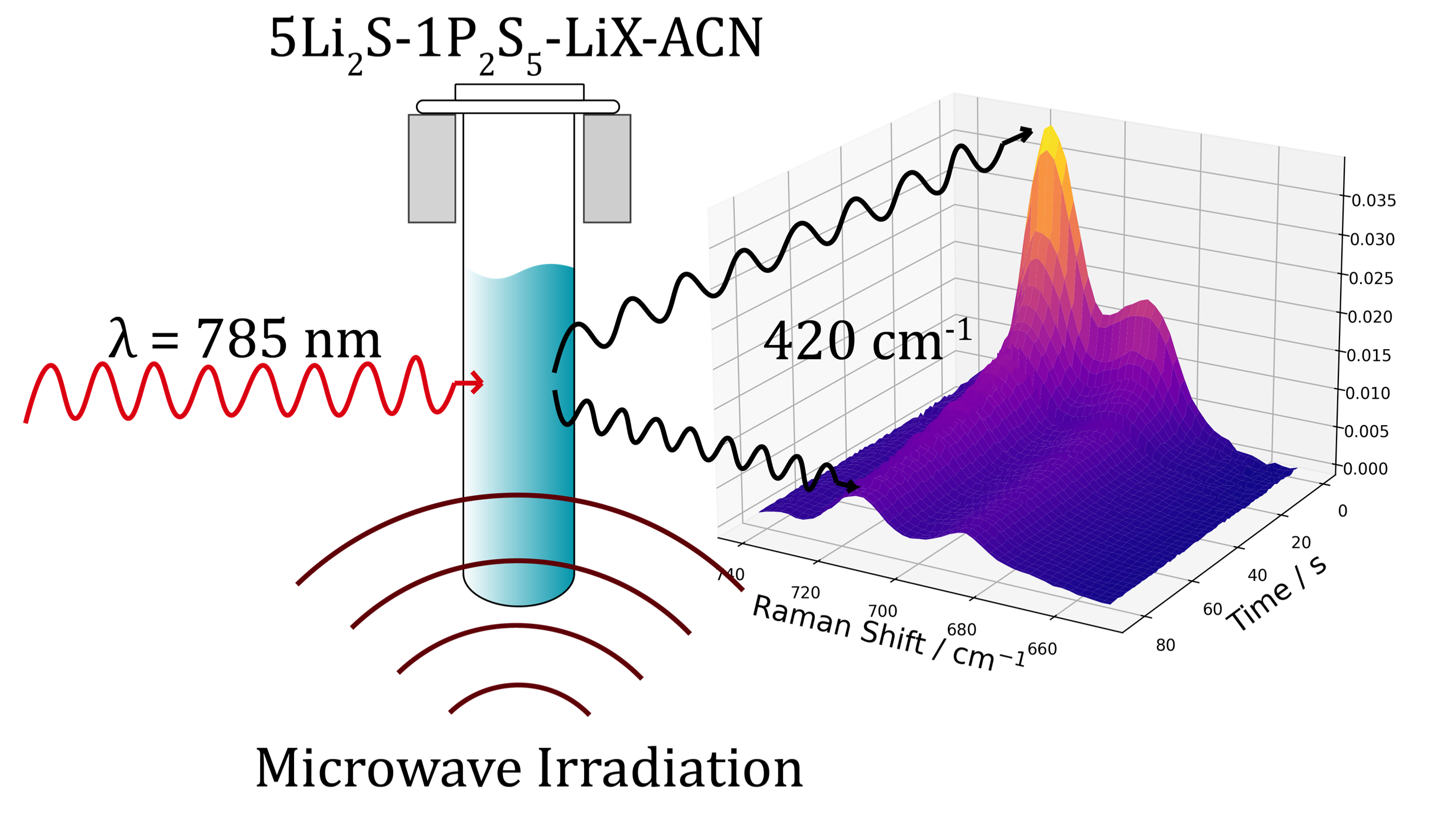

All-solid-state lithium batteries benefit from scalable routes to sulfide solid electrolytes with controlled phase formation. Here, an in situ Raman spectrometer integrated with a microwave reactor provides real-time vibrational fingerprints of the liquid-phase reaction between Li2S and P4S10 in acetonitrile. We benchmark the cell by tracking P4S10 solubility up to 130 °C and establish analytical performance for the PS stretch at ∼716 cm−1, determining LOD = 0.78 mM and LOQ = 2.60 mM. Time-resolved spectra capture the systematic decay of the 716 cm−1 band during the reaction, consistent with the disruption of the P4S10 cage and formation of thiophosphate intermediates. Early-stage kinetics are quantitatively described by the Finke–Watzky two-step model, and temperature-dependent rate constants yield Arrhenius and Eyring relationships with Ea(mw) = 39.59 kJ mol−1, ΔH‡ = 36.97 kJ mol−1, and ΔS‡ = −178.55 J mol−1 K−1. This combined in situ spectroscopic–kinetic approach offers a direct pathway to mechanistic understanding and parameter extraction in solution-based synthesis of sulfide SSEs.

This research work is a part of the PIE project “Innovative and Designed (Electro)-Chemistry, All-in-One for Lithium Sulfide Solid Electrolytes” (IDEAL-Li), reference 20226AT009, supported by The Spanish National Research Council (CSIC). This work was supported by the ELISA project (ref. CNS2023-145494), funded by MCIN/AEI/10.13039/501100011033 and by the European Union “NextGenerationEU”/PRTR. We also acknowledge the Erasmus Internship support for Thomas Poupeau and Beyza Batu.
