Probing Photodegraded Surfaces of OPV AL using photothermal AFM-IR measurements
Hsuan-yu Wang a, Sambathkumar Balasubramanian a, Daniel Garcia Martos a, Ellen Moons b, Leif Ericsson b, Morten Madsen a, Vida Engmann a
a University of Southern Denmark, SDU CAPE, MCI, Alsion, 2, Sønderborg, Denmark
b Department of Engineering and Physics, Karlstad university, Karlstad, Sweden.
Proceedings of MATSUS Spring 2026 Conference (MATSUSSpring26)
G2 Monitoring the degradation mechanisms of photovoltaic devices by optoelectronic characterization
Barcelona, Spain, 2026 March 23rd - 27th
Organizers: Enrique H. Balaguera and Emilio J. Juarez-Perez
Poster, Hsuan-yu Wang, 920
Publication date: 15th December 2025

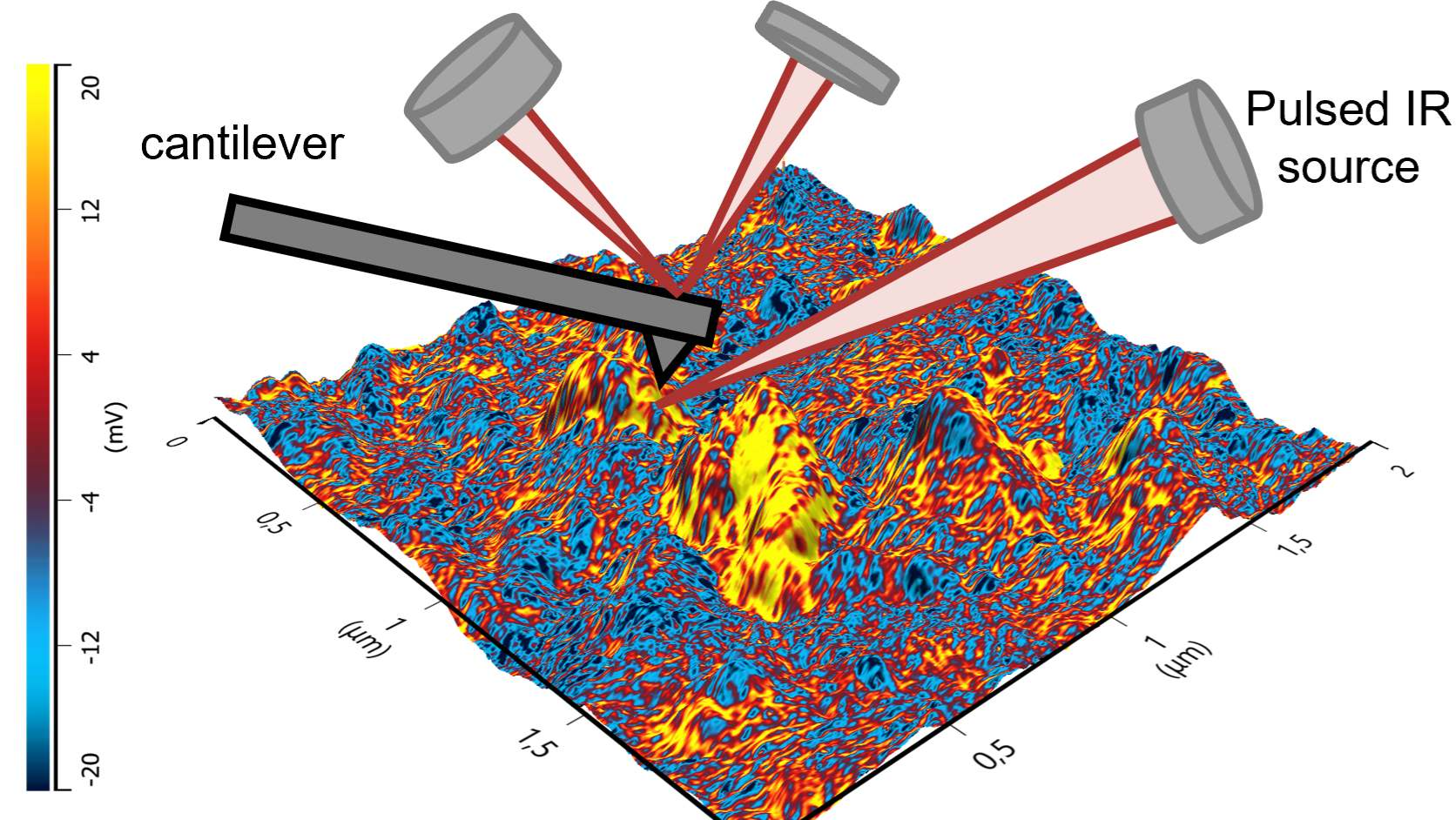

As OPV continues to gain interest as a complimentary green energy solution to silicon and perovskite, an understanding on the photo-degradation response is critical for designing materials to simultaneously attain high efficiency and stability. AFM-IR presents a powerful technique in visualizing the nanoscale material distribution by mapping photothermal responses of materials across surfaces. In this work, we characterized as-cast and photo-degraded polymer:non-fullerene thin films with the incorporation of an antioxidant. We observed a distinct difference between the height and the IR images, which benefits charge dissociation. With the incorporation of antioxidant, a different degradation pattern from both the height and the IR image (material distribution) was observed. Additionally, AFM-IR allows spectra to be acquired at defined positions on the thin film, when compared with FT-IR, the peaks position overlapped but the intensities varied depending on the location. Overall, the technique yielded a visual map of the material distribution that confirmed by IR spectrum

We acknowledge European Union´s Horizon Europe MSCA-DN program OPVStability (Grant Agreement Nr. 101120262) for financial support
