Perylene-based Organic Solar Cells with Photovoltages above 1.35 V for Possible Coupling with a Photo-rechargeable Battery
Elena Zuccalà a, Anna Jodlbauer a, Matiss Reinfelds a, Thomas Rath a, Ilie Hanzu a, Gregor Trimmel a
a Graz University of Technology, Institute for Chemistry and Technology of Materials (ICTM), NAWI, Stremayrgasse, 9, Graz, Austria
Materials for Sustainable Development Conference (MATSUS)
Proceedings of nanoGe Fall Meeting 2021 (NFM21)
#NewOPV21. Advances in Organic Photovoltaics
Online, Spain, 2021 October 18th - 22nd
Organizers: Uli Würfel and Jörg Ackermann
Poster, Elena Zuccalà, 291
Publication date: 23rd September 2021

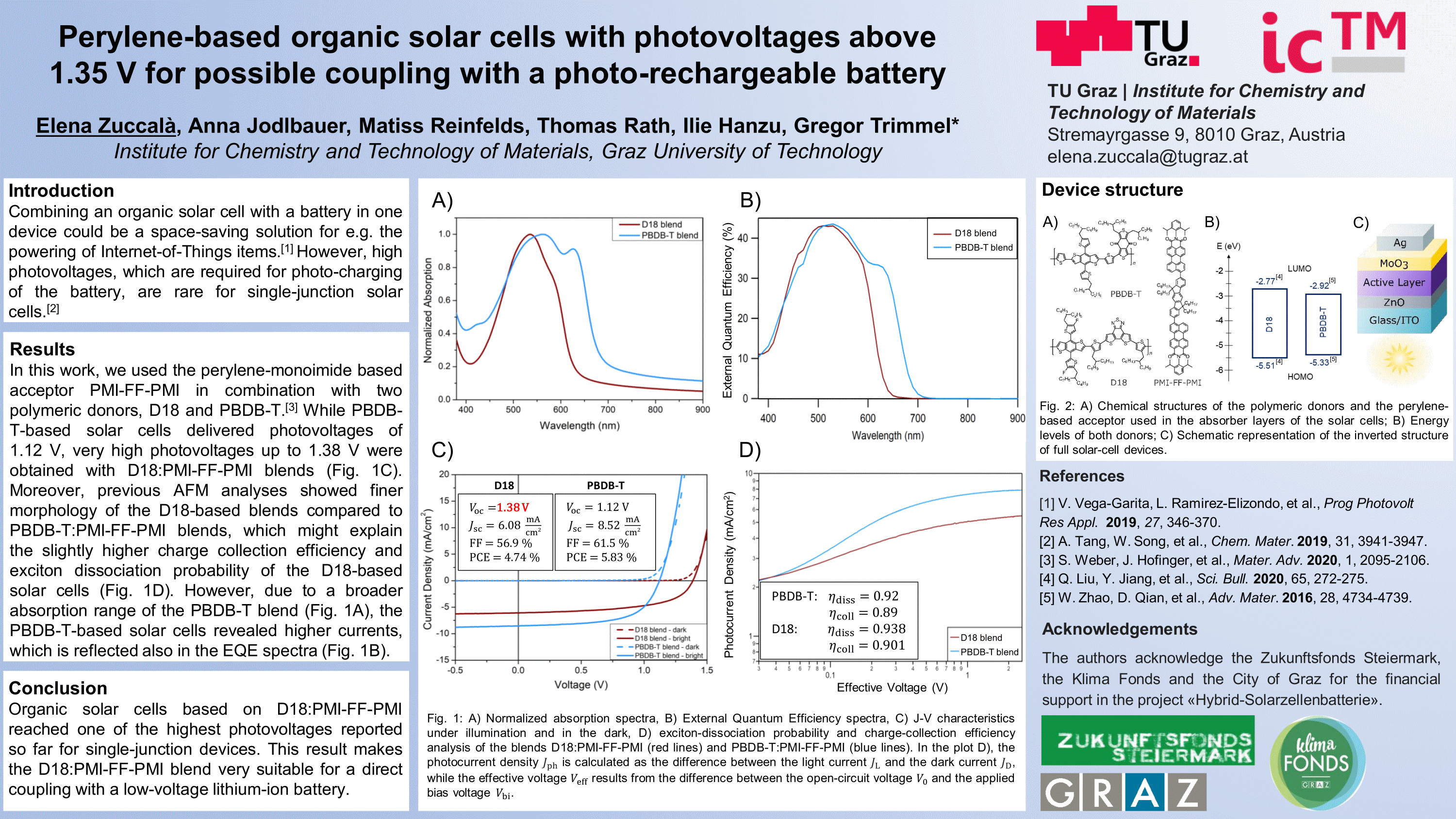

ePoster:

The concept of combining organic solar cells for energy harvesting and an electrochemical energy storage component into an integrated compact device exhibits significant advantages: besides the space-saving aspect, a device of this kind could not only find its application in small self-powering sensors, but also in the field of smart clothing.[1]



For the realization of a photo-rechargeable system, it is crucial that the organic solar cell delivers a sufficiently high voltage, to allow the photo-charging process. Strategies to reach high voltages would be the usage of tandem solar cells [2] or modules, however, this would make the device structure more complicated and difficult to optimize. On the other hand, single-junction organic solar cells with open-circuit voltages above 1.25 V are rare.[3]

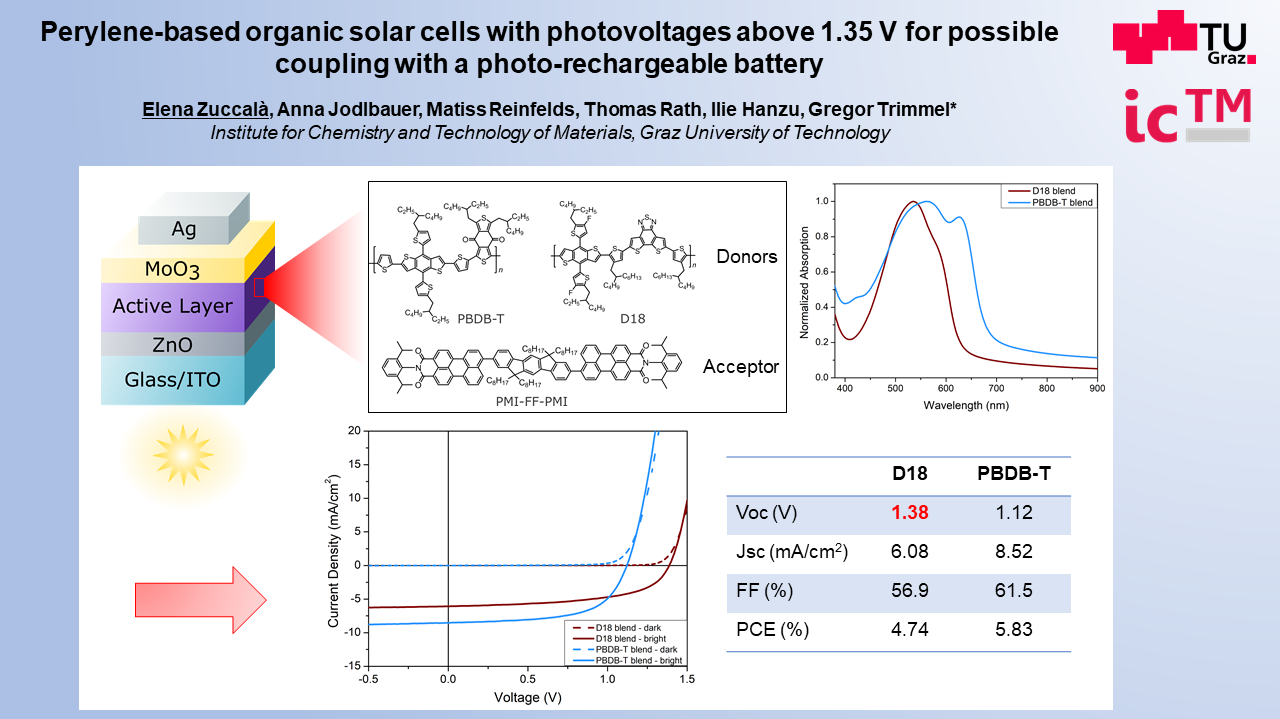

In this work, we present single-junction organic solar cells based on PMI-FF-PMI, a non-fullerene perylene-monoimide acceptor, which was able to achieve open-circuit voltages above 1.1 V in combination with the polymeric donor PBDB-T.[4] By blending PMI-FF-PMI with the conjugated polymer D18, which has a downshifted HOMO level compared to PBDB-T, an open-circuit voltage of 1.38 V could be obtained, representing one of the highest photovoltages reached with single-junction organic solar cells so far. These solar cells are prepared in an inverted device architecture and typically reveal photocurrents up to 7.5 mA/cm2, fill factors of 60% and in combination with the high photovoltage, power conversion efficiencies between 5 and 6% are obtained.



In this contribution, we present a thorough analysis of the characteristics of these high-photovoltage organic solar cells including optoelectronic, morphological and recombination properties. Moreover, we give an outlook on their potential direct coupling with a lithium-ion battery as well as battery materials suitable for this application.
