Stability of Encapsulated Perovskite Solar Cells
Thomas Schnabel a, Luisa Busch a, Oliver Salomon a, Marc Philip Vocht b, Rene von Metzen c, Fabian Körte c, Hanna Hartmann c, Erik Ahlswede a
a Zentrum für Sonnenenergie- und Wasserstoff-Forschung Baden-Württemberg (ZSW), 70563 Stuttgart, Germany
b Deutsche Institute für Textil- und Faserforschung, 73770 Denkendorf, Germany
c NMI Naturwissenschaftliches und medizinisches Institut, 72770 Reutlingen, Germany
nanoGe Perovskite Conferences
Proceedings of International Conference on Perovskite Thin Film Photovoltaics and Perovskite Photonics and Optoelectronics (NIPHO20)
Sevilla, Spain, 2020 February 23rd - 25th
Organizer: Hernán Míguez
Poster, Thomas Schnabel, 090
Publication date: 25th November 2019

In recent years, solar cells with perovskite absorbers have achieved an impressive gain in power conversion efficiency, which is now comparable to established absorber materials. Therefore, the major factors that affect the commercialization of perovskites have shifted to stability, upscaling and the prevention of lead leakage [1].

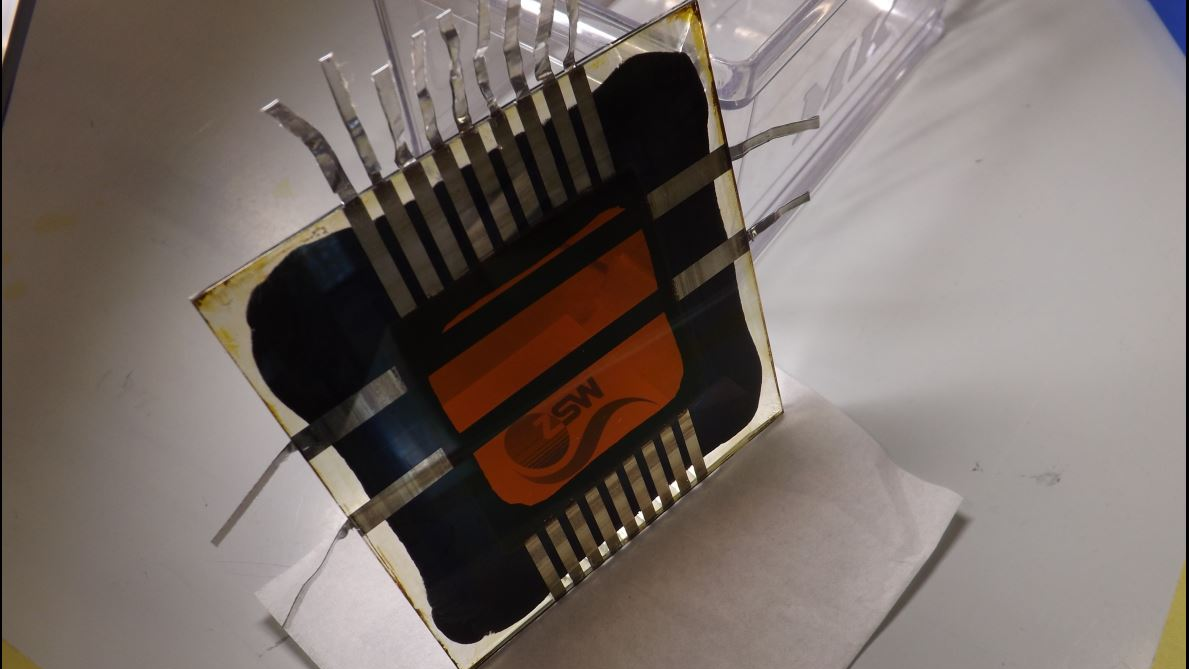

In this work, different encapsulation strategies for solar cells with Cs(MA,FA)Pb(I,Br)3 absorber were tested. All solar cells had a layer stack of ITO/NiOx/perovskite/PCBM/BCP/Ag and were sandwiched between two glass plates and encapsulated with a butyl rubber edge sealing. Additionally, different commercial thermoplastic polyolefins and Ca alginate as a possible lead retention material were included into the encapsulation. The Ca alginate was used in form of polyelectrolyte multilayers that were deposited onto the backside glass or a non-woven. The JV-characteristics of all samples were measured freshly prepared and after encapsulation. Despite temperatures of more than 120 °C during the encapsulation procedure, the efficiency was found to increase slightly.

After encapsulation, all samples were subjected to a damp heat test at 85 °C and 85 % r.H. JV-characteristics were measured after 100 h, 250 h and 500 h. As expected, all samples showed reduction of the efficiency. However, clear differences between the different sample types were observed. In particular, samples that were encapsulated with the non-woven showed less degradation and could retain a maximum efficiency of 6.1 % after 500 h of damp heat.

This work was supported by the Ministry of economy, labour and housing Baden-Württemberg under contract number 3-4332.62-ZSW/55 (SuPerB).
