Memristors from MoS2 by liquid-liquid interface assembly
Jonas Deuermeier a, Tomás Mingates a, Daniel Neves a, Dorina Papanastasiou a, Miguel Franco a, Adam Kelly a, Joseph Neilson b, Jonathan M. Coleman b, Luís Mendes c, João Vaz d, Sérgio Matos d, Mohamed Ghatas e, Luis M. Pessoa e, Emanuel Carlos a, Elvira Fortunato a, Rodrigo Martins a, Asal Kiazadeh a
a CENIMAT|i3N, Department of Materials Science, School of Science and Technology, NOVA University Lisbon and CEMOP/UNINOVA, Caparica, Portugal
b School of Physics, CRANN & AMBER Research Centres, Trinity College Dublin, Ireland
c Instituto de Telecomunicações, Lisbon, Portugal and Instituto Politécnico de Leiria, Leiria, Portugal
d Instituto de Telecomunicações, Instituto Superior Técnico, Lisbon, Portugal
e Institute for Systems and Computer Engineering Technology and Science (INESC TEC)—INESC Technology and Science and FEUP—Faculdade de Engenharia Universidade do Porto, Portugal
Proceedings of Neuronics Conference 2025 (Neuronics25)
Tsukuba, Japan, 2025 June 17th - 20th
Organizers: Takashi Tsuchiya, Chu-Chen Chueh, Sabina Spiga and Jung-Yao Chen
Oral, Jonas Deuermeier, presentation 027
Publication date: 15th April 2025

2D materials are a relatively novel class of resistive switching materials. Neuromorphic devices can be prepared in a variety of ways with these layers, mainly differing between lateral and vertical configurations.[1] Vertical devices are typically advantageous for integration in crossbar arrays. The technique for depositing the 2D materials is the main bottleneck for achieving high quality layers while maintaining fabrication cost-effective, environmentally friendly and compatible with conventional microelectronic processing.

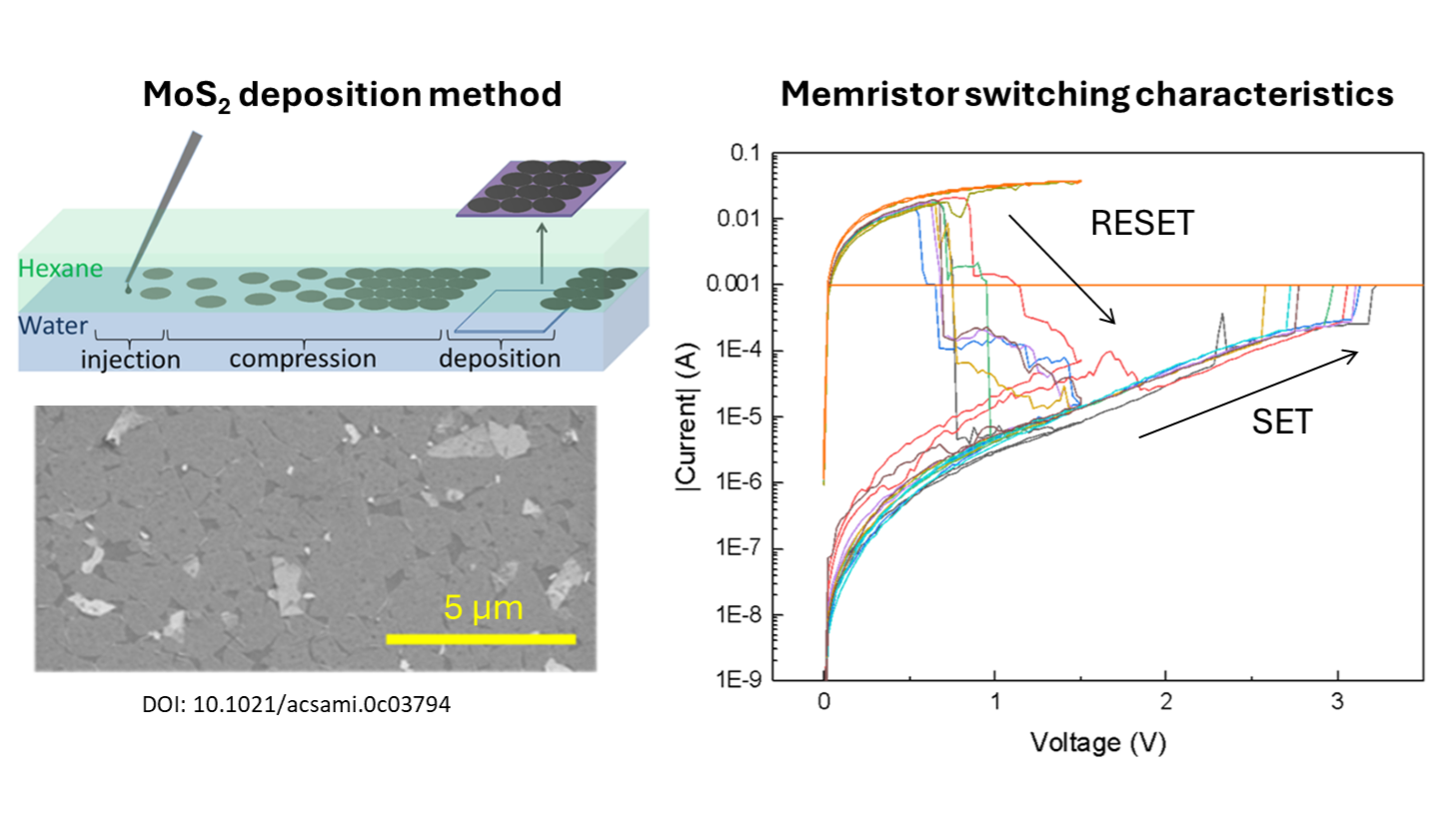

In this contribution, the first vertical solid-state MoS2 memristors using liquid-liquid interface assembly is presented. This deposition technique produces conformal coatings of > 1 μm wide sheets on large areas and does not require the hazardous gases required for chemical vapor deposition.[2] Devices are presented with contacts by physical vapor deposition and patterned by photolithography as well as with printed metal electrodes. The memristors work both in bipolar and unipolar fashion. Electrical characteristics comprise static IV and pulsed switching parameters, switching energy as well as insertion losses up to 110 GHz.
