Two Dimensional Lattices of Covalent- and Metal-Organic Frameworks for the Quantum Hall Resistance Standard
Sandra Martínez Estévez a, Enrique Cánovas Díaz a, Mariela Menghini a, Ignacio Figueruelo Campanero a, María Acebrón Rodicio a, Julia García Pérez a, Daniel Granados Ruiz a, Felix Raso Alonso b, Grzegorz Luka c, Luca Callerado d, Francois Couedö e, Hansjoerg Scherer f, Alienis Sadak g, Thomas Heine h, Massimo Ortolano i, Renhao Dong j, Xinliang Feng j
a IMDEA-Nanociencia. C. Faraday, nº 9. 28049-Cantoblanco, Madrid, Spain, Calle Faraday, 9, Madrid, Spain
b Centro Español de Metrología (CEM). C. Alfar, nº 2. 28760-Tres Cantos, Spain, Calle del Alfar, 2, Tres Cantos, Spain
c Główny Urząd Miar (GUM), Varsovia, Poland, Elektoralna, 2, Warszawa, Poland
d Istituto Nazionale di Ricerca Metrologica (INRIM), Strada delle Cacce, 91, Torino, Italy
e Laboratoire National de métrologie et d’Essais, (LNE), Trappes, France, Rue Gaston Boissier, 1, Paris, France
f Physikalisch-Technische Bundesanstalt (PTB), Braunschweig, Germany, Bundesallee, 100, Braunschweig, Germany
g Türkiye Bilimsel Ve Teknolojik Araştirma Kurumu (TÜBİTAK), Gebze, Turkey, Tunus Caddesi, 80, Turkey
h Helmholtz Zentrum Dresden Rossendorf (HZDR), Bautzner Landstraße, 400, Dresden, Germany
i Politecnico di Torino (POLITO), Corso Castelfidardo, 39, Torino, Italy
j Technische Universität Dresden (TUD), 01069 Dresde, Alemania, Dresde, Germany
Proceedings of Organic 2D Crystalline Materials: Chemistry, Physics and Devices (O2DMAT)
Madrid, Spain, 2022 September 15th - 16th
Organizers: Enrique Cánovas, Renhao Dong and Hai Wang
Poster, Sandra Martínez Estévez, 023
Publication date: 11th July 2022

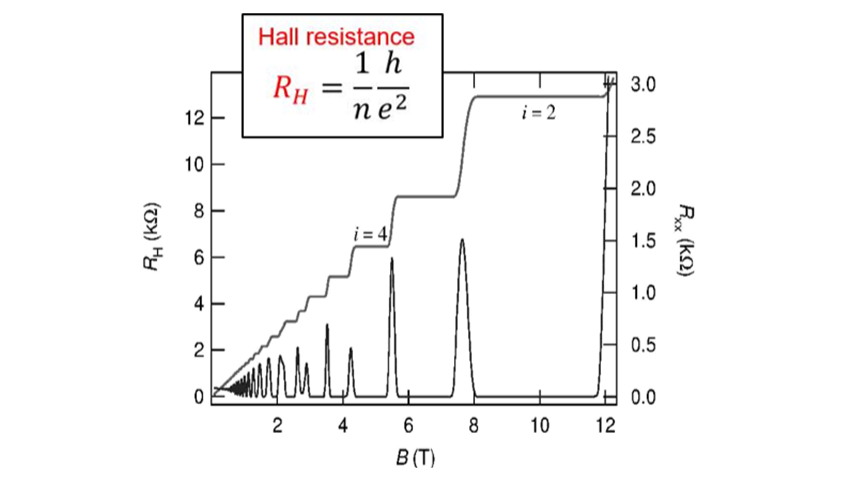

Within the field of metrology, universal constants are used to define every and each of the International System of Units. Particularly, the definition of the resistance unit (Ohm), has been routinely obtained from measurements of the Quantum Hall Effect on 2D electron gases at the interface of the AlGaAs/GaAs heterostructure. However, while this geometry is robust, it requires stringent measurement conditions (very low temperatures and very high magnetic fields) which are only achievable in a few high-tech metrology labs around the globe. To spread the use of standardization for end-users, metrologists are exploring novel materials as an alternative [1,2].

Here we show results from the European COMET project, sponsored by EMPIR/EURAMET, which aims to develop a novel Quantum Hall Resistance Standard (QHRS) based on two dimensional lattices of covalent- and metal-organic frameworks. The highly tunable nature of these materials holds the potential for developing QHRS measurements under less demanding conditions when compared with conventional approaches. This goal could help expand the employment of standardization protocols for industrial end-users.

The project EMPIR 20FUN03 COMET Two dimensional lattices of covalent- and metal- organic frameworks for the Quantum Hall resistance standard is financed by the European Metrology Programme for Innovation and Research (EMPIR), co-financed by the participating states and the research and innovation program of the European Union, Horizon 2020.
