Hybrid state at the organic acceptor / low-temperature sputtered TiOx interface : a necessary property for efficient charge transport ?
Dylan Amelot a, Mehrad Ahmadpour b, Quim Ros a, Hervé Cruguel a, Albano Cossaro c d, Luca Floreano d, Morten Madsen b, Nadine Witkowski a
a INSP, Institut des Nanosciences de Paris, Sorbonne Université, CNRS
b University of Southern Denmark, SDU NanoSYD, Mads Clausen Institute, Alsion, 2, Sønderborg, Denmark
c Department of Chemical and Pharmaceutical Sciences, University of Trieste
d CNR-IOM, Trieste, Italy
Materials for Sustainable Development Conference (MATSUS)
Proceedings of Online nanoGe Fall Meeting 20 (OnlineNFM20)
#NewOPV20. Non-fullerene Electron acceptors Within Organic Photovoltaics
Online, Spain, 2020 October 20th - 23rd
Organizers: Vida Engmann and Morten Madsen
Poster, Dylan Amelot, 249
Publication date: 4th October 2020

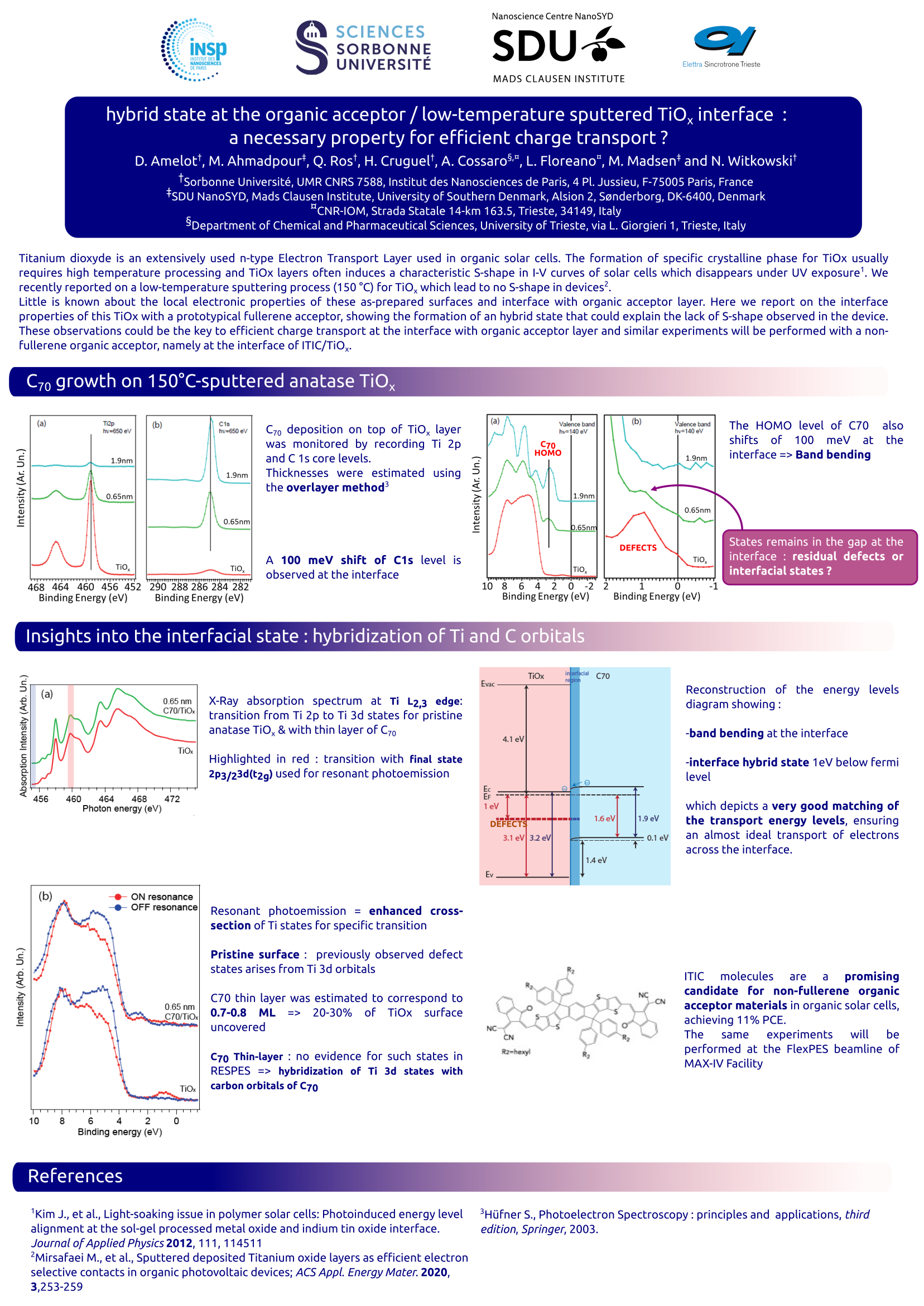

ePoster:

Titanium dioxyde is an extensively used n-type Electron Transport Layer used in organic solar cells. The formation of specific crystalline phase for TiOx usually requires high temperature processing and TiOx layers often induces a characteristic S-shape in I-V curves of solar cells which disappears under UV exposure. We recently reported on a low-temperature sputtering process (150 °C) for TiOx which lead to no S-shape in devices.
Little is known about the local electronic properties of these as-prepared surfaces and interface with organic acceptor layer. Here we report on the interface properties of this TiOx with a prototypical fullerene acceptor, showing the formation of an hybrid state that could explain the lack of S-shape observed in the device. These observations could be the key to efficient charge transport at the interface with organic acceptor layer and similar experiments will be performed with a non-fullerene organic acceptor, namely at the interface of ITIC/TiOx.
