Octahedral Tilt Engineering: Atomic-Level Picture of Stabilized α-FAPbI3

Tiarnan Doherty^a, Satyawan Nagane^a, Dominik Kubicki^a^,^b, Young-Kwang Jung^c, Duncan Johnstone^d, Affan Iqbal^a^,^e, Dengyang Guo^a^,^e, Kyle Frohna^a, Mohsen Danaie^f^,^g, Elizabeth Tennyson^a, Stuart Macpherson^a, Anna Abfalterer^a, Miguel Anaya^a^,^e, Yu-Hsien Chiang^a, Phillip Crout^d, Francesco Simone Ruggeri^h, Sean Collinsⁱ, Clare Grey^b, Aron Walsh^c^,^j, Paul Midgley^d, Samuel Stranks^a^,^e

^aDepartment of Physics, Cavendish Laboratory, University of Cambridge; Cambridge, UK

^bYusuf Hamied Department of Chemistry, University of Cambridge; Lensfield Road, Cambridge, UK

^cDepartment of Materials Science and Engineering, Yonsei University; Seoul, Korea

^dDepartment of Materials Science and Metallurgy, University of Cambridge; Cambridge, UK

^eDepartment of Chemical Engineering and Biotechnology, University of Cambridge; Cambridge, UK

^fElectron Physical Science Imaging Centre, Diamond Light Source Ltd; Didcot, UK

^gDepartment of Materials, University of Oxford; Oxford, UK

^hLaboratory of Organic and Physical Chemistry, Wageningen University and Research, the Netherlands

ⁱSchool of Chemical and Process Engineering & School of Chemistry, University of Leeds; Leeds, UK

^jDepartment of Materials, Imperial College London; London, UK

Proceedings of Online Conference on Atomic-level Characterisation of Hybrid Perovskites (HPATOM2)

Online, Spain, 2022 February 2nd - 3rd

Organizers: Michael Hope and Eve Mozur

Invited Speaker, Dominik Kubicki, presentation 020
DOI: https://doi.org/10.29363/nanoge.hpatom.2022.020
Publication date: 30th October 2021

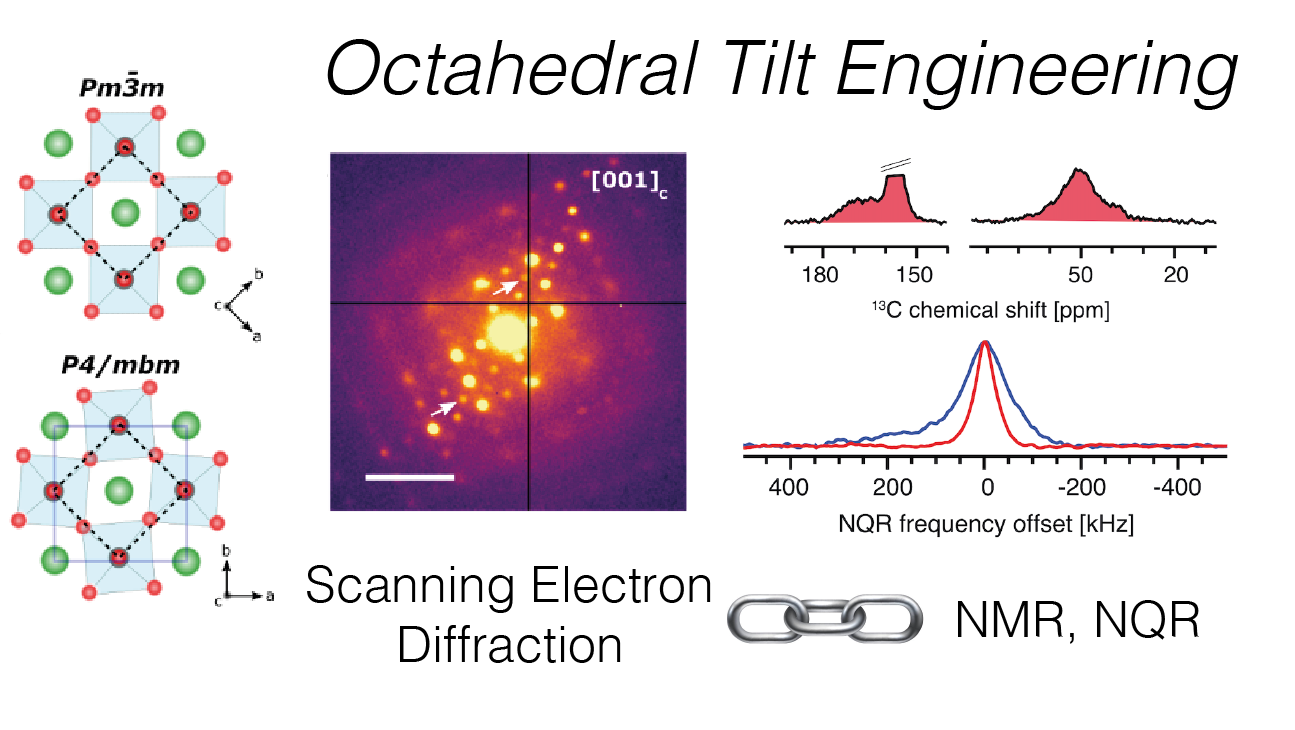

There is currently substantial interest in stabilizing the simple ternary FAPbI₃ perovskite because of its near-optimal band gap and superior thermal stability compared to methylammonium-based materials.¹ The key challenge of FAPbI₃ is the thermodynamic instability of the polymorph required for efficient light harvesting. Without additives, the black photoactive α-polymorph is only stable above ca. 160°C. At room temperature, it is metastable and rapidly transitions to the non-perovskite yellow polymorph. The stabilization of the black polymorph at room temperature can be achieved, for example, by adding a small amount of the pernicious MA through use of methylammonium chloride (in conjunction with formamidinium formate),² methylammonium thiocyanate,³ or methylammonium formate.⁴ We have developed a new stabilization strategy which does not involve the addition of MA.⁵ Instead, it uses a surface-templating agent (EDTA) which modifies the material without incorporating into the structure. We use a combination of scanning electron diffraction (SED) and nuclear magnetic resonance spectroscopies (NMR, NQR) to identify the atomic-level mechanism of action of EDTA in this role. We find that it templates the structure by inducing a small octahedral tilt, only resolvable with local characterization techniques, and imparts remarkable phase stability by arresting transitions to low-dimensional polymorphs. This octahedral tilt engineering strategy is remarkably universal, and we show that it is the intrinsic stabilization mechanism in the state-of-the-art FA-rich mixed-cation materials.

References:

[1] Huang, Y.; Lei, X.; He, T.; Jiang, Y.; Yuan, M. Recent Progress on Formamidinium-Dominated Perovskite Photovoltaics. Adv. Energy Mater. 2100690

[2] Jeong, J.; Kim, M.; Seo, J.; Lu, H.; Ahlawat, P.; Mishra, A.; Yang, Y.; Hope, M. A.; Eickemeyer, F. T.; Kim, M.; Yoon, Y. J.; Choi, I. W.; Darwich, B. P.; Choi, S. J.; Jo, Y.; Lee, J. H.; Walker, B.; Zakeeruddin, S. M.; Emsley, L.; Rothlisberger, U.; Hagfeldt, A.; Kim, D. S.; Grätzel, M.; Kim, J. Y. Pseudo-Halide Anion Engineering for α-FAPbI3 Perovskite Solar Cells. Nature 2021, 592 (7854), 381–385

[3] Lu, H.; Liu, Y.; Ahlawat, P.; Mishra, A.; Tress, W. R.; Eickemeyer, F. T.; Yang, Y.; Fu, F.; Wang, Z.; Avalos, C. E.; Carlsen, B. I.; Agarwalla, A.; Zhang, X.; Li, X.; Zhan, Y.; Zakeeruddin, S. M.; Emsley, L.; Rothlisberger, U.; Zheng, L.; Hagfeldt, A.; Grätzel, M. Vapor-Assisted Deposition of Highly Efficient, Stable Black-Phase FAPbI3 Perovskite Solar Cells. Science 2020, 370 (6512)

[4] Hui, W.; Chao, L.; Lu, H.; Xia, F.; Wei, Q.; Su, Z.; Niu, T.; Tao, L.; Du, B.; Li, D.; Wang, Y.; Dong, H.; Zuo, S.; Li, B.; Shi, W.; Ran, X.; Li, P.; Zhang, H.; Wu, Z.; Ran, C.; Song, L.; Xing, G.; Gao, X.; Zhang, J.; Xia, Y.; Chen, Y.; Huang, W. Stabilizing Black-Phase Formamidinium Perovskite Formation at Room Temperature and High Humidity. Science 2021, 371 (6536), 1359–1364

[5] Doherty, T.; Nagane, S.; Kubicki, D. J.; Jung, Y. K.; Johnstone, D. N.; Iqbal, A.; Guo, D.; Frohna, K.; Danaie, M.; Tennyson, E. M.; MacPherson, S.; Abfalterer, A.; Anaya, M.; Chiang, Y.-H.; Crout, P.; Ruggeri, F. S.; Collins, S.; Grey, C. P.; Walsh, A.; Midgley, P.; Stranks, S. D. Stabilized Tilted-Octahedra Halide Perovskites Inhibit Local Formation of Performance-Limiting Phases. Science 2021, 374 (6575), 1598–1605

Acknowledgements:

The authors acknowledge Julia Parker and Paul Quinn for support during experiments on the I14 beamline at Diamond Light Source. Funding: T.A.S.D. (National University of Ireland Travelling Studentship); S.N. (Royal Society and SERB for funding a Newton International Fellowship). S.D.S. (Royal Society and Tata Group (UF150033); ERC Horizon 2020 HYPERION - grant agreement no. 756962); P.A.M. (EPSRC, EP/R008779/1); EPSRC (EP/R023980/1). K.F. (George and Lilian Schiff Studentship, Winton Studentship, EPSRC studentship, Cambridge Trust Scholarship, and Robert Gardiner Scholarship). D.J.K., E.M.T., and M.A. (MSCA, grants 841136, 841265, 841386, respectively) - EU Horizon 2020. A.N.I. (British Spanish Society and the Sir Richard Stapley Educational Trust); S.M. (EPSRC studentship). A.A. (Royal Society). S.M.C (University Academic Fellowship at the University of Leeds); P.C. (EPSRC studentship). C.P.G (EU ERC Advanced Fellowship DLV-835073); National Research Foundation of Korea (grant 2018R1C1B6008728). EU Horizon 2020 INFRAIA (ESTEEM3, 823717); Diamond Light Source - beamline I14 (proposal sp20420) and EPSIC (Instrument E02, proposal MG24111); The work used the ARCHER UK National Supercomputing Service via our membership of the UK's HEC Materials Chemistry Consortium - EPSRC (EP/L000202).
