Optical and Electrical Properties of Organic Solar Cell prototype Based on P3HT:PCBM
Rojas Tarazona Fredy Enrique a, Diaz-Granados Fabian a, Méndez Henry a, Salcedo Juan Carlos a, Rodríguez Hernán a, Mejía Augusto a, Jiménez Luis Camilo a
a Pontificia Universidad Javeriana, Carrera 7 No. 40 - 62
Asia-Pacific International Conference on Perovskite, Organic Photovoltaics and Optoelectronics
Proceedings of Asia-Pacific International Conference on Perovskite, Organic Photovoltaics and Optoelectronics (IPEROP20)
Tsukuba-shi, Japan, 2020 January 20th - 22nd
Organizers: Michio Kondo and Takurou Murakami

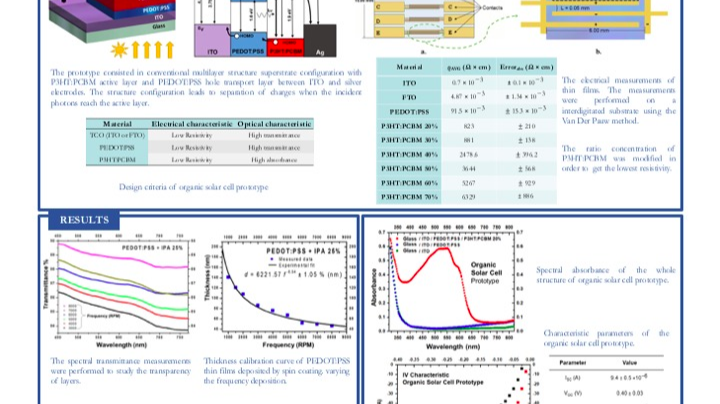

Poster, Rojas Tarazona Fredy Enrique, 085
Publication date: 14th October 2019

Optical properties and electrical properties of a prototype of organic solar cell based on P3HT:PCBM



F.C Díaz-Granados, F. Rojas, H. Méndez, J. C. Salcedo, H. Rodríguez, A. Mejía, G. Yamhure and L. C: Jiménez

Pontificia Universidad Javeriana, Physics Department – Faculty of Sciences

Cra. 7 No. 40-83 (110231) Bogotá - Colombia

fe.rojas@javeriana.edu.co

Optical characterization of P3HT: PCBM (poly (3-hexylthiophene-2,5-diyl)): ([6,6] -phenyl C61 methyl ester of butyric acid) and PEDOT: PSS (layers of poly (3,4-ethylenedioxythiophene) ))) thin films deposited using the Spin Coating technique were studied using an effective medium approximation method (EMA). This method involves transmittance, reflectance and absorbance measurements, which describe the changes in their optical properties depending on the compositional balance of the materials involved.
The optical results were compared with the electrical characterization of each of by separated, and also has been performed for the Organic solar cells based on P3HT:PCBM deposited on ITO substrate by means the I-V characterization.
The results obtained on the organic solar cells shows a dark current density of 1.28 mA/cm2, a fill factor FF of 0.65 and a conversion efficiency of 1.01% for P3HT:PCBM solar cell.The perspective is improve the efficiency of organic solar cells by texturing techniques and nano-particles (colloidal crystal inside the active layer).

Project: "Fabrication of nanostructured solar cells based on P3HT:PCBM with improved micostructure characteristics and efficiency conversion" P- Pontificia Universidad Javeriana - Dpt. Physics.- Science Fac.- Pontificia Universidad Javeriana Bogotá Colombia
