Self-assembling monolayers in mixed tin-lead perovskite solar cells
Isabella Taupitz a, Sebastian Berwig a, Yeonghun Yun a, Maxim Simmonds a, Alexandra Miaskiewicz a, Philipp Tockhorn a, Steve Albrecht a
a Helmholtz-Zentrum Berlin für Materialien, Hahn-Meitner-Platz, 1, Berlin, Germany
Materials for Sustainable Development Conference (MATSUS)
Proceedings of MATSUS Spring 2024 Conference (MATSUS24)
#PerTanCell - Perovskite Tandem Solar Cells
Barcelona, Spain, 2024 March 4th - 8th
Organizers: Kai Brinkmann and Felix Lang
Poster, Isabella Taupitz, 549
Publication date: 18th December 2023

Tandem solar cells are able to exceed the maximum efficiency (detailed balance limit) of single junction
devices by far. In all-perovskite tandem solar cells, two perovskite absorbers with different bandgaps
(narrow-bandgap, NBG with Eg<1.3 eV and wide-bandgap, WBG with Eg>1.5 eV) are paired for optimal
utilization of the solar spectrum whilst profiting from the excellent optoelectronic properties of
perovskite films. Recently, all-perovskite tandem solar cells have reached 28% certified power-
conversion efficiency and are quickly approaching that of silicon-perovskite tandem solar cells [1]. Yet,
losses at the interface between tin/lead NBG subcell and hole transport layer (HTL) still limit the
performance of all-perovskite tandem solar cells. Very recently a few approaches have been published
demonstrating a successful replacement of the standard HTL PEDOT:PSS, which is known for its
detrimental influence on device performance, by self-assembling monolayer (SAM) materials [2–6].
Nevertheless, the details of charge-carrier dynamics and other film characteristics such as
crystallization of SAM-based mixed Sn/Pb perovskite films still lack understanding.
In this work, we study the influence of the pseudo-halide additive lead-thiocyanate (Pb(SCN)2) on the
performance of PEDOT:PSS- and SAM-based mixed Sn/Pb perovskite devices. Additive engineering
with thiocyanate compounds has been a major research focus for NBG perovskites and led the way to
the current record efficiencies in single-junction NBG and all-perovskite solar cells. However, our study

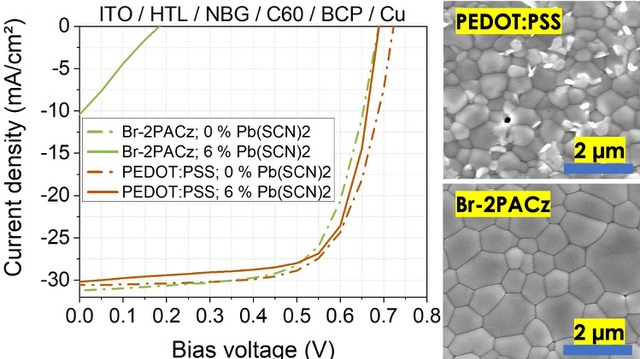

shows that a perovskite composition which has been developed for PEDOT:PSS fails solar cell behavior
upon replacing PEDOT:PSS with SAM (PCE > 16 % vs. PCE < 2 %). Results from JV measurements, as
well as transient surface photovoltage (trSPV) and transient photoluminescence (trPL) measurements
suggest that charge carrier extraction is blocked in SAM-based, Pb(SCN)2-containing devices.
Remarkably, morphology analysis and absolute PL measurements show significantly enlarged grain
size, smooth surface morphology and increased quasi Fermi-level splitting (QFLS) of Pb(SCN)2
containing films when fabricated on SAM, compared to films without Pb(SCN)2 (~0.75 eV vs. ~0.85 eV).
In contrast, for films fabricated on PEDOT:PSS there are only minor differences. These findings point
out, that a mixed Sn/Pb NBG perovskite composition which has been developed for high performance
PEDOT:PSS-based devices and all-perovskite tandems might not show the same device characteristics
when brought in contact with other HTMs instead. In conclusion, our study demonstrates that a careful
re-assessment of additive engineering plays a crucial role when replacing the standard hole-transport
material PEDOT:PSS in NBG sub-cells of all-perovskite tandem solar cells

We use our own and third party cookies for analysing and measuring usage of our website to improve our services. If you continue browsing, we consider accepting its use. You can check our Cookies Policy in which you will also find how to configure your web browser for the use of cookies. More info
