Monolithic Perovskite-on-CMOS Image Sensors
Quang Nhat Dang Lung a, Sergey Tsarev a, Kyuik Cho d, Xuqi Liu a, Emeric Hartmann a, Gebhard Matt a, Simon C. Boehme a, Bekir Turedi a, Aditya Bhardwaj a, Taekwang Jang d, Ivan Shorubalko c, Sergii Yakunin a b, Maksym V. Kovalenko a b
a Laboratory of Inorganic Chemistry, Department of Chemistry and Applied Biosciences, ETH Zürich, CH-8093 Zürich, Switzerland
b Laboratory for Thin Films and Photovoltaics, Empa – Swiss Federal Laboratories for Materials Science and Technology, CH-8600 Dübendorf, Switzerland
c Transport at Nanoscale Interfaces Laboratory, Empa – Swiss Federal Laboratories for Materials Science and Technology, CH-8600 Dübendorf, Switzerland
d Laboratory of Integrated Systems, Department of Information Technology and Electrical Engineering, ETH Zürich, CH-8092 Zürich, Switzerland
Proceedings of MATSUS Fall 2026 Conference (MATSUSFall26)
D3 Next-Generation Processing Strategies for Emerging Semiconductor Technologies
Palma, Spain, 2026 October 26th - 30th
Organizers: Martyn Mclachlan and Julianna Panidi
Oral, Quang Nhat Dang Lung, presentation 143
Publication date: 22nd July 2026

Metal halide perovskites have emerged as remarkable semiconductors for photodetectors, offering strong optical absorption, tunable bandgaps, and low-noise operation comparable to established silicon technologies.[1] Nevertheless, most reported thin-film devices remain at the level of stand-alone photodetectors, limiting their practical implementation in imaging systems. Integration onto CMOS readout platform is non-trivial, as the perovskite deposition process must be compatible with pre-fabricated CMOS surfaces[2], and photolithographic patterning of perovskites is still challenging due to their instability under conventional semiconductor fabrication conditions.[3]

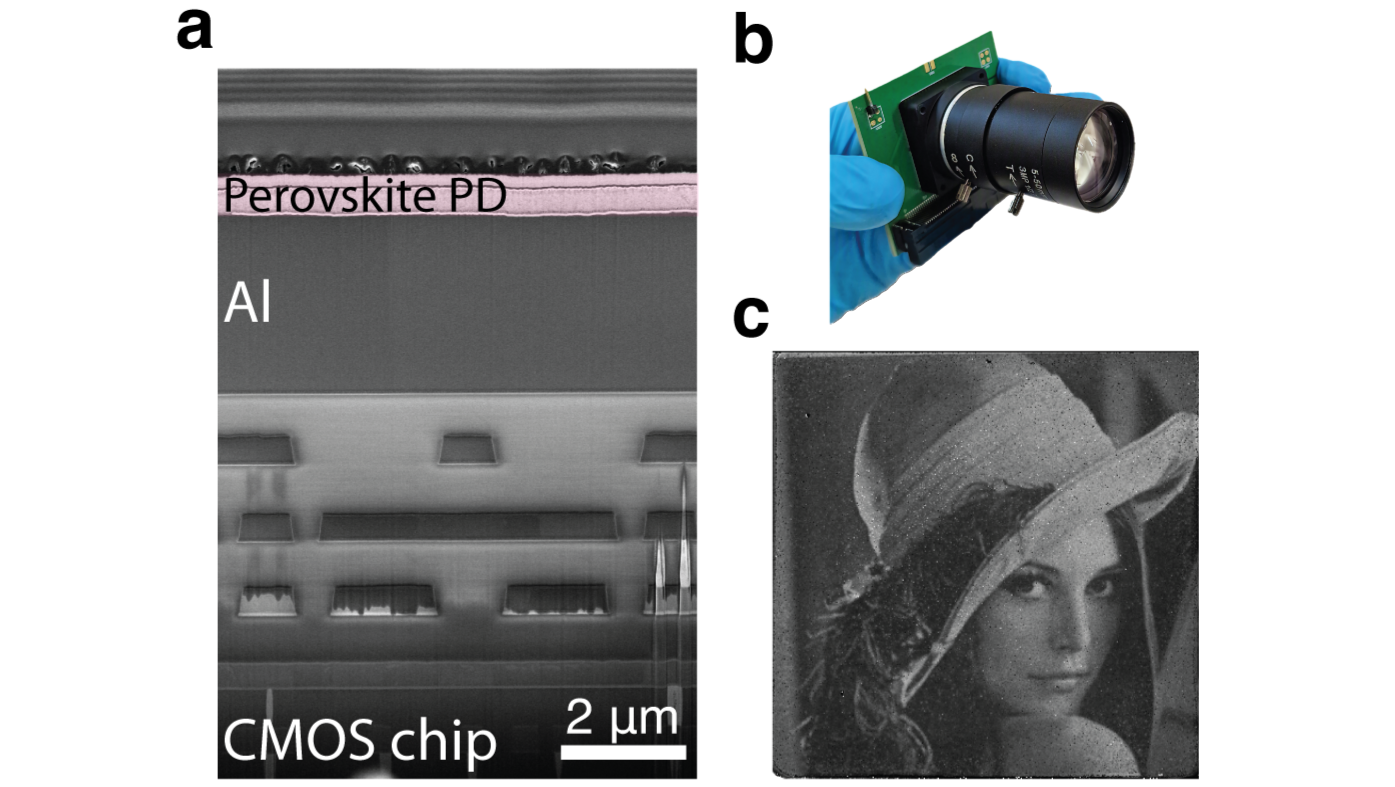

Here, we present a scalable and reliable vacuum-based deposition protocol for the high performance perovskite photodiodes (PePDs), achieving a peak detectivity of 9.2 × 10¹² Jones at −0.5 V, among the top-performing devices reported to date. Using this strategy, we demonstrate solvent-free monolithic integration of PePDs onto a 180-nm CMOS readout integrated circuit. The resulting image sensors exhibit stable operation with low noise and uniform response across the pixel array, confirming the viability of the process for system-level implementation. In addition, we introduce a modified-pixel architecture that mitigates electrical crosstalk between neighboring pixels, thereby improving image sharpness. Our work highlights the importance of processing-controlled integration in translating perovskite semiconductors from discrete photodetectors to practical imaging systems.

The work was financially supported by ETH Zürich through the ETH+ Project SynMatLab: Laboratory for Multiscale Materials Synthesis.
