Single-crystal halide perovskites provide an excellent platform for investigating the intrinsic electronic properties of metal halide semiconductors while eliminating many of the complexities associated with polycrystalline films. However, translating these materials into high-performance devices requires a detailed understanding of their surfaces, buried interfaces, and their response to intense X-ray irradiation during advanced characterization.[1]

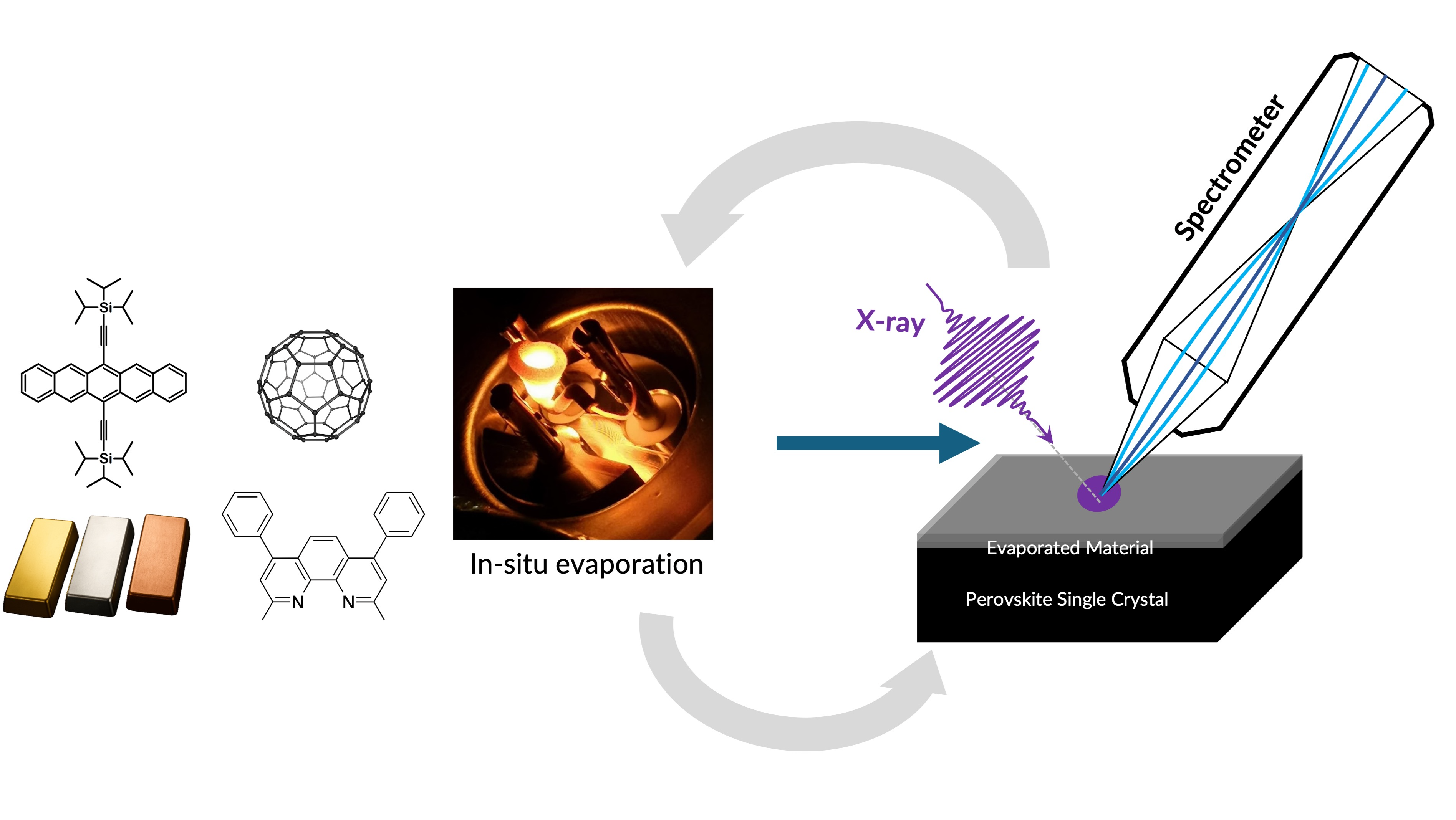

In this contribution, we present a methodology based on synchrotron soft- and hard X-ray photoelectron spectroscopy to investigate the electronic structure of clean single-crystal halide perovskites.[2] By combining in situ crystal cleavage with the sequential evaporation of charge-transport materials and metallic contacts under ultra-high vacuum, we have developed a platform to fabricate clean interfaces and monitor their formation in real time. This approach enables direct observation of energy-level alignment, band bending, electronic structure evolution, and interfacial chemical reactions during interface formation, including buried interfaces relevant to photovoltaic and optoelectronic devices.[3,4] We also discuss the influence of X-ray exposure on the electronic structure and chemical stability of single crystals, highlighting practical considerations for obtaining reliable spectroscopic data.[5] Together, these studies demonstrate how advanced synchrotron characterization can provide unique insight into the fundamental mechanisms governing charge extraction, interface formation, and device performance in single-crystal halide perovskites, while establishing experimental guidelines for the characterization of these beam-sensitive materials.
