Publication date: 22nd July 2026

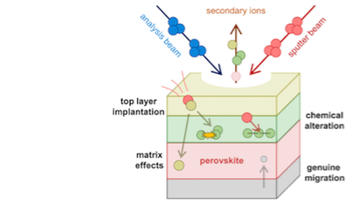

In 2025, approximately 18% of Time-of-Flight Secondary Ion Mass Spectrometry (ToF-SIMS) publications addressed perovskite (PVK) solar cells—nearly a threefold increase since 2020—highlighting the technique’s rapidly growing relevance.[1] Owing to its high chemical specificity and ability to probe buried interfaces without invasive sample preparation[2], ToF-SIMS is increasingly used to investigate ion migration, interfacial modification, additive passivation and degradation pathways that can be linked to changes in corresponding devices’ parameters. However, we show that ToF-SIMS data acquired from multilayered PVK solar cells cannot be interpreted analogously to its thin films.[3,4] Here, we establish a rigorously validated ToF-SIMS methodology that disentangles true ion migration from artifact-induced signals, revealing widely underappreciated measurement artifacts. Through systematic comparison of thin films and full devices based on archetypal MAPbI3 (1.6 eV) and compositionally complex (FA75Cs25)(Pb60Sn40)I3 (1.25 eV), we demonstrate that spurious ion gradients arise exclusively in multilayer stacks and originate from top-layer interactions. A controlled peeling protocol confirms their measurement-induced nature. We further introduce a fluence-matched acquisition protocol and a statistically grounded replicate-based workflow, revealing that single-profile measurements can yield contradictory interpretations, particularly for subtle interfacial phenomena (i.e. trace passivation). Applying this framework, we enable reliable analysis of pristine and aged buried self-assembled monolayers (SAMs), whose ultrathin (~1 nm) localized nature presents unique analytical challenges and growing importance in the design of molecular transport layers for high-efficiency, stable devices. Together, these results establish an artifact-aware, reproducible framework for high-fidelity ToF-SIMS depth profiling in PVK solar cells, providing a reference standard for reliable chemical analysis of complex multilayer semiconductors and their devices. As such, this work advances best practices in nanoscale characterization and in doing so supports precision interface engineering across next-generation energy technologies and beyond.
N.F. and J.V.M. thank Dr Alexis Franquet for overseeing the maintenance of the ToF-SIMS equipment at imec (Leuven, Belgium), which facilitated our measurements through the HERCULES ToF-SIMS collaboration 2022-2025 (imec/UHasselt). N.F. and A.H.B. thank Gabriel Belchior Miranda for insightful discussions. This research was carried out under financial support by Research Foundation – Flanders (FWO) under mandate grant IDs 11K4324N, 1260022N, 1SA4523N and 1297525N, and financial support by BOF-UHasselt grant ID R-12384.
