Nonvolatile photomemory based on organic semiconductor / 2D perovskite heterojunction floating-gate transistor
Alfonsina Abat Amelenan Torimtubun a, Arne Verding a, Arwin Goossens a, Wouter Van Gompel a, Koen Vandewal a, Laurence Lutsen a
a IUMAT, IMEC, Hasselt University, Diepenbeek, Belgium, Wetenschapspark, 1, Diepenbeek, Belgium
Proceedings of Neuronics Conference 2026 (Neuronics26)
Seoul, Korea, Republic of, 2026 September 8th - 10th
Organizers: Valeria Bragaglia and Seyoung Kim
Oral, Alfonsina Abat Amelenan Torimtubun, presentation 011
Publication date: 24th July 2026

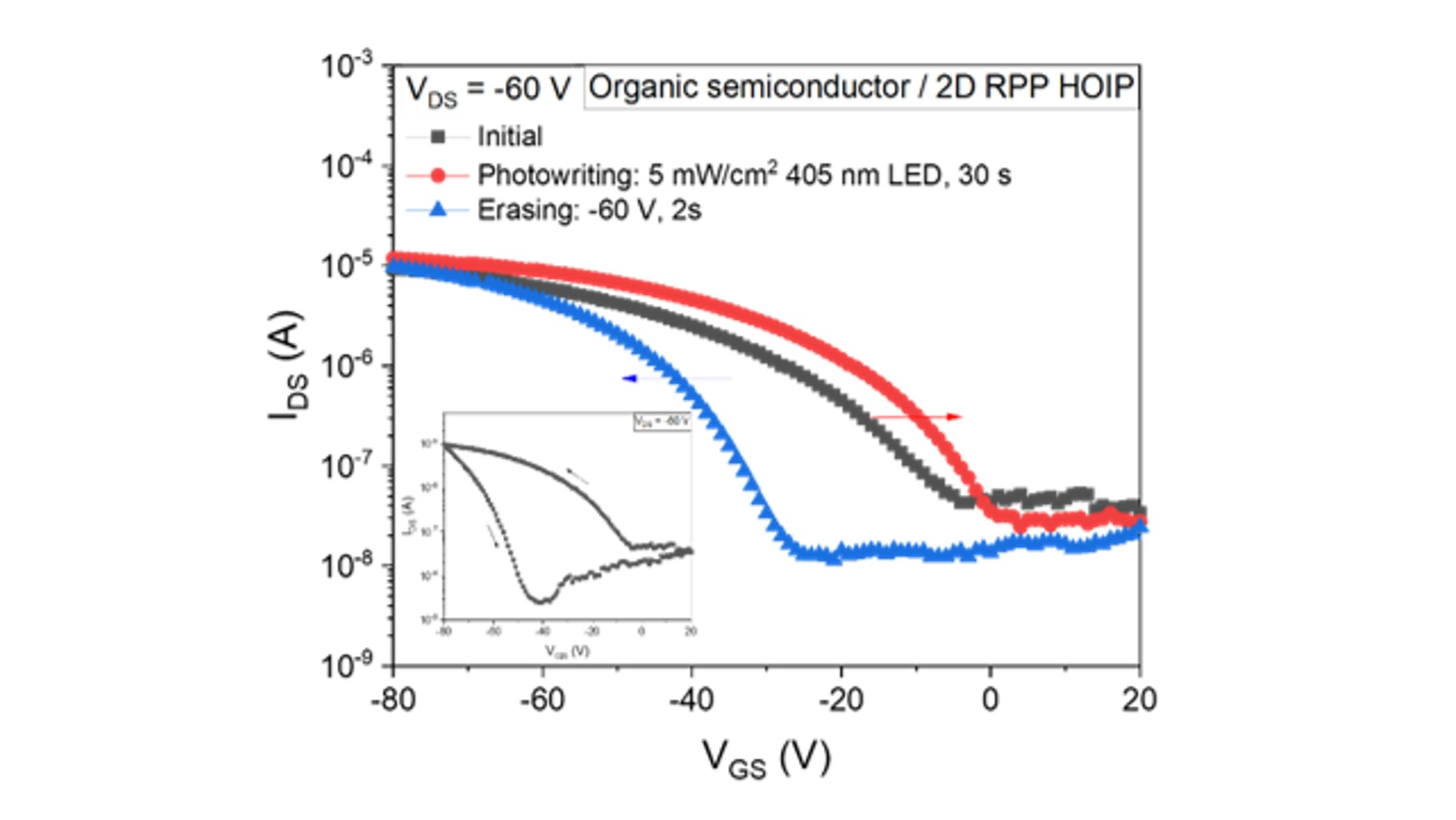

With the exponential growth of artificial intelligence, big data, and the internet of things, there is an urgent need for high-speed, energy-efficient computing technologies. Neuromorphic computing meets this demand by utilizing hardware architectures capable of massively parallel processing with ultra-low power consumption. Such architectures have traditionally been based on complementary metal-oxide semiconductor circuits; however, scaling up computational performance now requires emerging devices that deliver high-order complexity while remaining highly area- and energy-efficient [1]. Recently, optoelectronic devices based on organic semiconductor and two-dimensional (2D) halide perovskite have emerged for neuromorphic computing due to their attractive optoelectronic properties and low-cost processability. By coupling the high photosensitivity of 2D halide perovskite and good charge transport of organic semiconductors, the resulting interface heterojunction allows for the highly tunable optical modulation of charge-trapping effects, ultimately realizing a robust, nonvolatile photomemory [2]. Herein, a nonvolatile memory device based on a 2D Ruddlesden-Popper-phase perovskite and a p-type organic semiconductor heterojunction is fabricated. The synergy of this heterojunction is critical: the organic layer serves as the primary charge transport channel, while the 2D perovskite’s intrinsic quantum well acts as a charge-trapping layer to capture and store carriers under applied bias. The carrier transport and storage properties during optical gating are optimized, and the memory properties can be readily modulated. The memory device exhibits hysteresis transfer curves with a memory window of 30 V and a current switching ratio of 103. The results validate the potential of 2D perovskite as a highly effective charge-storage medium, paving the way for fast, low-power optical multi-bit storage for future neuromorphic computing systems.
