Electrochemical Processing of Inverted Perovskite Solar Cells for Improved Morphological Uniformity and Scalable Fabrication
Sergio Reyes a
a Universidad de los Andes, Bogotá 111711, Colombia
Materials for Sustainable Development Conference (MATSUS)
Proceedings of MATSUS Fall 2026 Conference (MATSUSFall26)
A1 Beyond Efficiency: Perovskite Optoelectronics for Scalable and Stable Devices
Palma, Spain, 2026 October 26th - 30th
Organizers: Guixiang Li and Silver-Hamill Turren-Cruz
Oral, Sergio Reyes, presentation 322
Publication date: 22nd July 2026

Electrochemical Processing of Inverted Perovskite Solar Cells for Improved Morphological Uniformity and Scalable Fabrication

Sergio Reyes1,2, Pablo Ortiz1, María Teresa Cortès1, Michael Saliba2

1 Universidad de los Andes, Bogotá 111711, Colombia

2 Institut für Photovoltaik (ipv), University of Stuttgart, Stuttgart 70569, Germany

*Corresponding author(s): se.reyes@uniandes.edu.co (S. Reyes)

Abstract

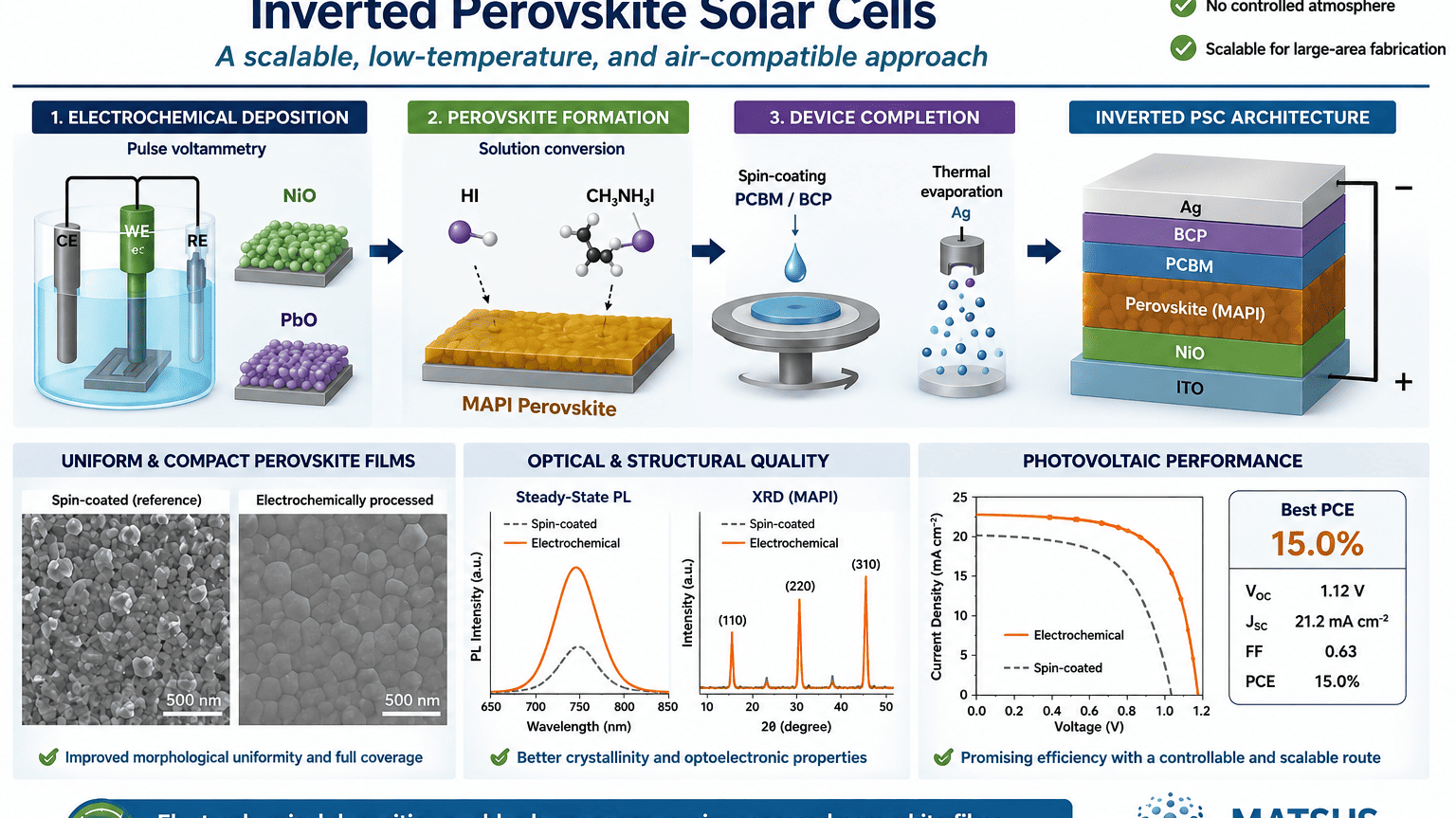

Inverted perovskite solar cells (PSCs) have emerged as a highly promising photovoltaic technology due to their simple device architecture, low-temperature processing, and compatibility with flexible substrates. However, fabrication of the perovskite absorber layer in inverted PSCs commonly relies on spin coating, a method that offers excellent control at laboratory scale but presents significant challenges for large-area manufacturing and process reproducibility. Developing alternative deposition strategies that enable scalable fabrication while maintaining high film quality remains essential for the commercial deployment of perovskite photovoltaics. In this work, an electrochemical deposition route was developed for the fabrication of inverted PSCs, aiming to improve morphological uniformity, enhance optoelectronic properties, and eliminate the need for controlled-atmosphere processing. Nickel oxide (NiO) and lead oxide (PbO) precursor layers were sequentially deposited onto conductive glass substrates via pulse voltammetry. These precursor films were subsequently converted into methylammonium lead iodide (MAPI) perovskite through chemical treatment with hydroiodic acid and methylammonium iodide. To complete the device architecture, PCBM and BCP were deposited as the electron transport and interfacial layers, respectively, followed by thermal evaporation of silver contacts.



Comprehensive characterization was performed using scanning electron microscopy (SEM), UV–Vis spectroscopy, photoluminescence, X-ray diffraction (XRD), contact angle analysis, and photovoltaic measurements under simulated solar illumination. The electrochemical approach enabled the formation of highly homogeneous and compact perovskite films with improved surface coverage and crystallinity, resulting in enhanced charge transport and reduced recombination losses. As a consequence, the fabricated devices achieved a power conversion efficiency (PCE) of 15%, demonstrating substantial performance improvements compared with conventional processing routes. These results establish electrochemical deposition as a scalable, low-cost, and highly controllable strategy for the fabrication of inverted perovskite solar cells. The proposed methodology provides a promising pathway toward large-area manufacturing of efficient perovskite photovoltaic devices while reducing processing complexity and environmental constraints.
