Closing the Scale-Up Gap: Slot-Die Compatible Interface Passivation from Cell to 174 cm² Semi-Transparent Perovskite Modules
Yassine Raoui a, Anna Capitaine a, Alexandra Levtchenko a, Van-Son Nguyen a, Pilar Lopez-Varo a, Kamil Baba Ali Turqui a, Pauline Dufour a, Rene D. Mendez L. a, Muhammed Salim Kunnummal Mangott a, Alexandre Blaizot a, Damien Coutancier a, Raj Dashrath Patel a, Juan Pablo Medina Flecha a, Iwan Zimmermann a, Jean Rousset a
a IPVF Institut Photovoltaïque d'Île-de-France (UMR), 18 Boulevard Thomas Gobert, 91120, Palaiseau, France
Proceedings of MATSUS Fall 2026 Conference (MATSUSFall26)
A5 Interface Engineering, Optical Strategies and Multijunction Designs in Perovskite Photovoltaics and Optoelectronics
Palma, Spain, 2026 October 26th - 30th
Organizers: Clara Aranda Alonso and Monika Rai
Poster, Yassine Raoui, 502
Publication date: 22nd July 2026

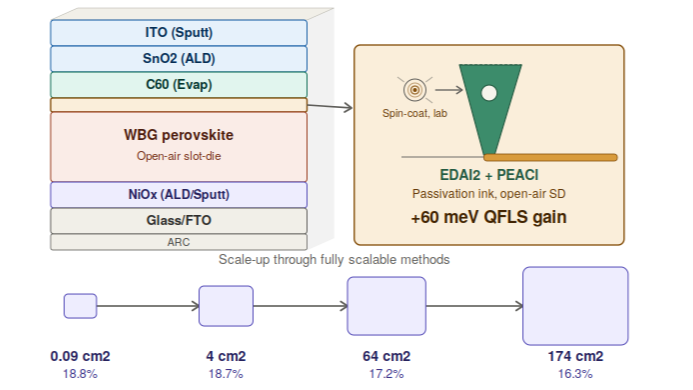

The interface between semi-transparent perovskite solar cells and C60 is a major bottleneck for wide-bandgap (WBG) p-i-n architectures, where band misalignment drives non-radiative recombination and limits open-circuit voltage and fill factor. Most interfacial passivation strategies reported to date rely on spin-coating, a technique incompatible with industrial manufacturing. This contribution presents a fully scalable, wet-processed passivation strategy based on sequential slot-die coating of ethylenediammonium diiodide (EDAI2) and phenethylammonium chloride (PEACl) at the perovskite/C60 interface. The treatment suppresses interfacial recombination and improves quasi-Fermi level splitting and open-circuit voltage by more than 60 meV relative to non-passivated devices, enabling a champion power conversion efficiency of 18.8% for semi-transparent WBG perovskite solar cells. Crucially, the same passivation chemistry and the same open-air slot-die process used throughout the device stack translate directly to larger formats: semi-transparent modules of 4, 64 and 174 cm² retain active-area efficiencies of 18.7%, 17.2% and 16.3%, respectively, showing that passivation gains obtained at cell scale are preserved upon upscaling. By pairing interfacial passivation with a manufacturing-compatible deposition route, this work offers a practical, scalable strategy for closing the gap between record laboratory efficiencies and industrially relevant semi-transparent perovskite photovoltaics; directly addressing the symposium's focus on interfacial engineering strategies compatible with large-scale fabrication.

This work was supported by the French government in the framework of the program of investments for the future (Programme Investissement d'avenir ANR-IEED-002-01). Y.R and P.D acknowledges the European Union’s Horizon Europe Programme under grant agreement No. 101147311 (LAPERITIVO), V.S.N acknowledges the ANR-BRIGHTSIDE Project (No.  AAPG2022). H.E. and P.S. thank the French Agence Nationale de la Recherche (ANR) for funding under the grant ANR-22-PETA-0005 (PEPR TASE IOTA).
